Product description

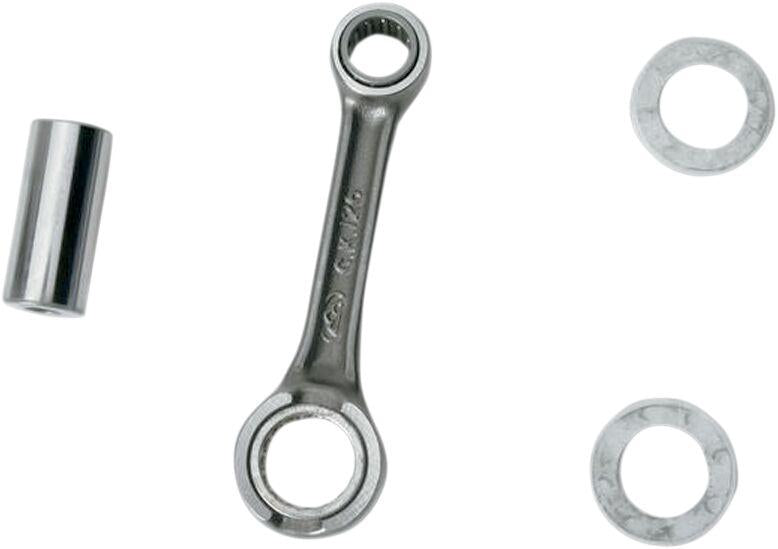

The Hot Rods Connecting Rod Kit For Yamaha YZ80 1993-2001 is part of the latest collection from Hot Rods.

Features:

• Heavy-duty OE replacement connecting rods
• Certified 8620 AISI steel provides superior strength
• Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to level of 58-62Rc
• Features the latest in caged needle roller bearing designs for high rpm longevity
• Uniquely designed big end uses strategically located side scalloping and vent slots to minimize bearing race distortion at high rpm
• Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing
• Shot-peened to eliminate surface stress risers and to smoothly blend together the rod forging's radiuses
• Double honing produces an ultra-round bearing surface for reliability at high rpm
• Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing and silver-coated bronze phosphor thrust washers
• Made in the USA
• Compatible with Hot Rods and OE crankshafts.
Connecting Rod Big End I.D. 26.000 mm Connecting Rod Big End Width: 13.980 mm Connecting Rod Center-to-Center: 96.000 mm Connecting Rod Small End I.D. 18.000 mm Connecting Rod Small End Width: 13.980 mm Thrust Washer Thickness: 1.000 mm Pin Length: 43.500 mm Kit Includes: • Connecting Rod • Crank Pin • Crank Pin Bearing • Wrist Pin Bearing • Thrust Washers

Specifications:

• Displacement: 80 cc| 85 cc
• Engine Type: 2-Cycle
• Material: 8620 Steel
• Product Name: Connecting Rod Kit
• Research Value: Finalized
• Riding Style: Off-Road
• Units: Kit

To fit:

• YAMAHA YZ 80 LW 1994 American Models
• YAMAHA YZ 80 LW 1994 European Models
• YAMAHA YZ 80 LW 1995 American Models
• YAMAHA YZ 80 LW 1995 European Models
• YAMAHA YZ 80 LW 1996 American Models
• YAMAHA YZ 80 LW 1996 European Models
• YAMAHA YZ 80 LW 1997 American Models
• YAMAHA YZ 80 LW 1997 European Models
• YAMAHA YZ 80 LW 1998 American Models
• YAMAHA YZ 80 LW 1998 European Models
• YAMAHA YZ 80 LW 1999 American Models
• YAMAHA YZ 80 LW 1999 European Models
• YAMAHA YZ 80 LW 2000 All Models
• YAMAHA YZ 80 LW 2001 All Models
• YAMAHA YZ 80 1993 All Models
• YAMAHA YZ 80 1994 All Models
• YAMAHA YZ 80 1995 All Models
• YAMAHA YZ 80 1996 All Models
• YAMAHA YZ 80 1997 All Models
• YAMAHA YZ 80 1998 All Models
• YAMAHA YZ 80 1999 All Models
• YAMAHA YZ 80 2000 All Models
• YAMAHA YZ 80 2001 All Models
• YAMAHA YZ 85 LW 2002 All Models
• YAMAHA YZ 85 LW 2003 All Models
• YAMAHA YZ 85 LW 2004 All Models
• YAMAHA YZ 85 LW 2005 All Models
• YAMAHA YZ 85 LW 2006 All Models
• YAMAHA YZ 85 LW 2007 All Models
• YAMAHA YZ 85 LW 2008 All Models
• YAMAHA YZ 85 LW 2009 All Models
• YAMAHA YZ 85 LW 2010 All Models
• YAMAHA YZ 85 LW 2011 All Models
• YAMAHA YZ 85 LW 2012 All Models
• YAMAHA YZ 85 LW 2013 All Models
• YAMAHA YZ 85 LW 2014 All Models
• YAMAHA YZ 85 LW 2015 All Models
• YAMAHA YZ 85 LW 2016 All Models
• YAMAHA YZ 85 LW 2017 All Models
• YAMAHA YZ 85 LW 2018 All Models
• YAMAHA YZ 85 SW 2002 All Models
• YAMAHA YZ 85 SW 2003 All Models
• YAMAHA YZ 85 SW 2004 All Models
• YAMAHA YZ 85 SW 2005 All Models
• YAMAHA YZ 85 SW 2006 All Models
• YAMAHA YZ 85 SW 2007 All Models
• YAMAHA YZ 85 SW 2008 All Models
• YAMAHA YZ 85 SW 2009 All Models
• YAMAHA YZ 85 SW 2010 All Models
• YAMAHA YZ 85 SW 2011 All Models
• YAMAHA YZ 85 SW 2012 All Models
• YAMAHA YZ 85 SW 2013 All Models
• YAMAHA YZ 85 SW 2014 All Models
• YAMAHA YZ 85 SW 2015 All Models
• YAMAHA YZ 85 SW 2016 All Models
• YAMAHA YZ 85 SW 2017 All Models
• YAMAHA YZ 85 SW 2018 All Models

Manufacturer part number: 8126

View all Hot Rods. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Hot Rods Connecting Rod Kit For Yamaha YZ80 1993-2001
