Product description

The Hot Rods Connecting Rod Kit For Yamaha YFS200 1988-2006 is part of the latest collection from Hot Rods.

Features:

• Heavy-duty OE replacement connecting rods
• Certified 8620 AISI steel provides superior strength
• Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to level of 58-62Rc
• Features the latest in caged needle roller bearing designs for high rpm longevity
• Uniquely designed big end uses strategically located side scalloping and vent slots to minimize bearing race distortion at high rpm
• Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing
• Shot-peened to eliminate surface stress risers and to smoothly blend together the rod forging's radiuses
• Double honing produces an ultra-round bearing surface for reliability at high rpm

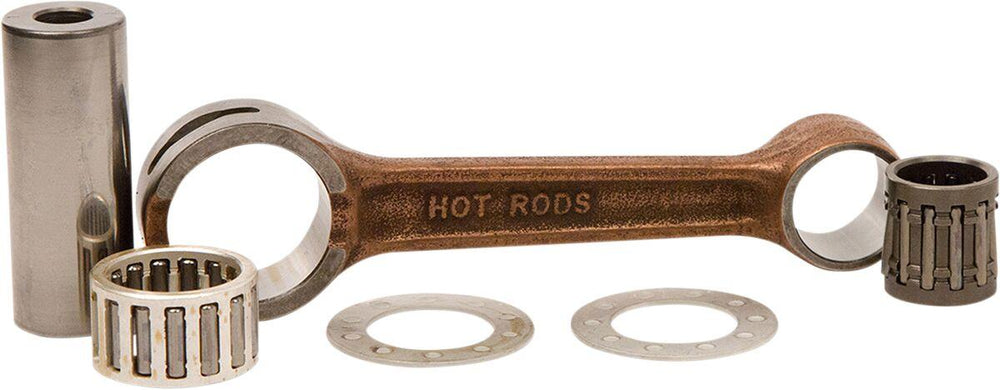

• Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing and silver-coated bronze phosphor thrust washers
• Made in the USA
• Compatible with Hot Rods and OE crankshafts.
Connecting Rod Big End I.D. 29.000 mm Connecting Rod Big End Width: 17.000 mm Connecting Rod Center-to-Center: 110.000 mm Connecting Rod Small End I.D. 21.000 mm Connecting Rod Small End Width: 17.970 mm Thrust Washer Thickness: 1.000 mm Pin Length: 56.400 mm Kit Includes: • Connecting Rod • Crank Pin • Crank Pin Bearing • Wrist Pin Bearing • Thrust Washers

Specifications:

• Displacement: 200 cc
• Engine Type: 2-Cycle
• Material: 8620 Steel
• Product Name: Connecting Rod Kit
• Research Value: Finalized
• Riding Style: ATV
• Units: Kit

To fit:

• YAMAHA YFS 200 MNH 1991 Blaster Maine & New Hampshire All Models
• YAMAHA YFS 200 MNH 1992 Blaster Maine & New Hampshire All Models
• YAMAHA YFS 200 MNH 1993 Blaster Maine & New Hampshire All Models
• YAMAHA YFS 200 MNH 1994 Blaster Maine & New Hampshire All Models
• YAMAHA YFS 200 MNH 1995 Blaster Maine & New Hampshire All Models
• YAMAHA YFS 200 MNH 1996 Blaster Maine & New Hampshire All Models
• YAMAHA YFS 200 MNH 1997 Blaster Maine & New Hampshire All Models
• YAMAHA YFS 200 SE 2006 Blaster SE All Models
• YAMAHA YFS 200 1988 Blaster All Models
• YAMAHA YFS 200 1989 Blaster All Models
• YAMAHA YFS 200 1990 Blaster All Models
• YAMAHA YFS 200 1991 Blaster All Models
• YAMAHA YFS 200 1992 Blaster All Models
• YAMAHA YFS 200 1993 Blaster All Models
• YAMAHA YFS 200 1994 Blaster All Models
• YAMAHA YFS 200 1995 Blaster All Models
• YAMAHA YFS 200 1996 Blaster All Models
• YAMAHA YFS 200 1997 Blaster All Models
• YAMAHA YFS 200 1998 Blaster All Models
• YAMAHA YFS 200 1999 Blaster All Models
• YAMAHA YFS 200 2000 Blaster All Models
• YAMAHA YFS 200 2001 Blaster All Models
• YAMAHA YFS 200 2002 Blaster All Models
• YAMAHA YFS 200 2003 Blaster All Models
• YAMAHA YFS 200 2004 Blaster All Models
• YAMAHA YFS 200 2005 Blaster All Models
• YAMAHA YFS 200 2006 Blaster All Models

Manufacturer part number: 8144

View all Hot Rods. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Hot Rods Connecting Rod Kit For Yamaha YFS200 1988-2006
