Product description

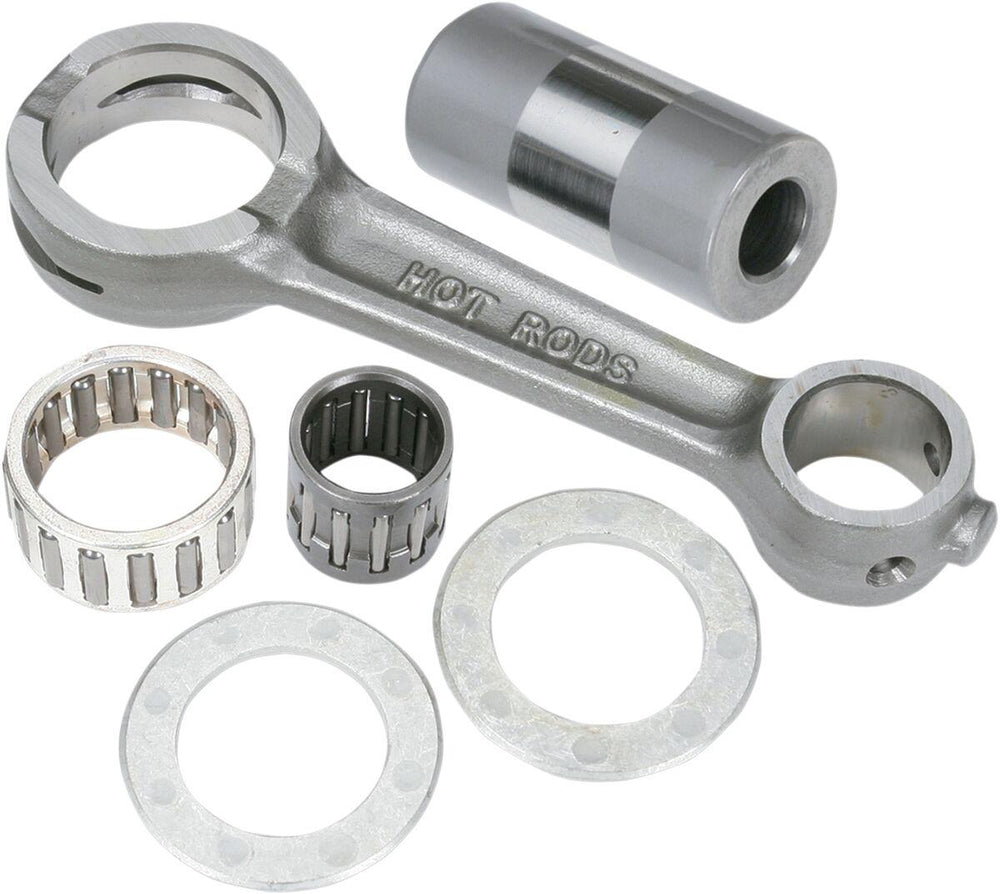

The Hot Rods Connecting Rod Kit For Kawasaki KX100 1998-2000 is part of the latest collection from Hot Rods.

Features:

• Heavy-duty OE replacement connecting rods
• Certified 8620 AISI steel provides superior strength
• Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to level of 58-62Rc
• Features the latest in caged needle roller bearing designs for high rpm longevity
• Uniquely designed big end uses strategically located side scalloping and vent slots to minimize bearing race distortion at high rpm
• Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing
• Shot-peened to eliminate surface stress risers and to smoothly blend together the rod forging's radiuses
• Double honing produces an ultra-round bearing surface for reliability at high rpm
• Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing and silver-coated bronze phosphor thrust washers
• Made in the USA
• Compatible with Hot Rods and OE crankshafts.
Connecting Rod Big End I.D. 28.000 mm Connecting Rod Big End Width: 13.980 mm Connecting Rod Center-to-Center: 92.000 mm Connecting Rod Small End I.D. 18.000 mm Connecting Rod Small End Width: 15.960 mm Thrust Washer Thickness: 2.000 mm Pin Length: 46.400 mm Kit Includes: • Connecting Rod • Crank Pin • Crank Pin Bearing • Wrist Pin Bearing • Thrust Washers

Specifications:

• Displacement: 100 cc| 80 cc| 85 cc
• Engine Type: 2-Cycle
• Material: 8620 Steel
• Product Name: Connecting Rod Kit
• Research Value: Finalized
• Riding Style: Off-Road
• Units: Kit

To fit:

• KAWASAKI KX 100 1998 All Models
• KAWASAKI KX 100 1999 All Models
• KAWASAKI KX 100 2000 All Models
• KAWASAKI KX 100 2001 American Models
• KAWASAKI KX 100 2002 American Models
• KAWASAKI KX 100 2003 American Models
• KAWASAKI KX 100 2004 American Models
• KAWASAKI KX 100 2005 American Models
• KAWASAKI KX 100 2006 American Models
• KAWASAKI KX 100 2007 American Models
• KAWASAKI KX 100 2008 American Models
• KAWASAKI KX 100 2009 American Models
• KAWASAKI KX 100 2010 American Models
• KAWASAKI KX 100 2011 American Models
• KAWASAKI KX 100 2012 American Models
• KAWASAKI KX 100 2013 American Models
• KAWASAKI KX 100 2014 American Models
• KAWASAKI KX 100 2015 American Models
• KAWASAKI KX 100 2016 American Models
• KAWASAKI KX 100 2017 American Models
• KAWASAKI KX 100 2018 American Models
• KAWASAKI KX 100 2019 American Models
• KAWASAKI KX 100 2020 American Models
• KAWASAKI KX 100 2021 American Models
• KAWASAKI KX 80 17/14 1998 All Models
• KAWASAKI KX 80 17/14 1999 All Models
• KAWASAKI KX 80 17/14 2000 All Models
• KAWASAKI KX 80 19/16 1998 All Models
• KAWASAKI KX 80 19/16 1999 All Models
• KAWASAKI KX 80 19/16 2000 All Models
• KAWASAKI KX 85 17/14 2001 All Models
• KAWASAKI KX 85 17/14 2002 All Models
• KAWASAKI KX 85 17/14 2003 All Models
• KAWASAKI KX 85 17/14 2004 All Models
• KAWASAKI KX 85 17/14 2005 All Models
• KAWASAKI KX 85 17/14 2006 All Models
• KAWASAKI KX 85 II 2007 All Models
• KAWASAKI KX 85 II 2008 All Models
• KAWASAKI KX 85 II 2009 All Models
• KAWASAKI KX 85 II 2010 All Models
• KAWASAKI KX 85 II 2011 All Models
• KAWASAKI KX 85 II 2012 All Models
• KAWASAKI KX 85 II 2013 All Models
• KAWASAKI KX 85 II 2014 All Models
• KAWASAKI KX 85 II 2015 All Models
• KAWASAKI KX 85 II 2016 All Models
• KAWASAKI KX 85 II 2017 All Models
• KAWASAKI KX 85 II 2018 All Models
• KAWASAKI KX 85 II 2019 All Models
• KAWASAKI KX 85 II 2020 All Models
• KAWASAKI KX 85 II 2021 All Models
• KAWASAKI KX 85 I 2007 All Models
• KAWASAKI KX 85 I 2008 All Models
• KAWASAKI KX 85 I 2009 All Models
• KAWASAKI KX 85 I 2010 All Models
• KAWASAKI KX 85 I 2011 All Models
• KAWASAKI KX 85 I 2012 All Models
• KAWASAKI KX 85 I 2013 All Models
• KAWASAKI KX 85 I 2014 All Models
• KAWASAKI KX 85 I 2015 All Models
• KAWASAKI KX 85 I 2016 All Models
• KAWASAKI KX 85 I 2017 All Models
• KAWASAKI KX 85 I 2018 All Models
• KAWASAKI KX 85 I 2019 All Models
• KAWASAKI KX 85 I 2020 All Models
• KAWASAKI KX 85 I 2021 All Models
• SUZUKI RM 100 2003 All Models

Manufacturer part number: 8147

View all Hot Rods. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Hot Rods Connecting Rod Kit For Kawasaki KX100 1998-2000
