Product description

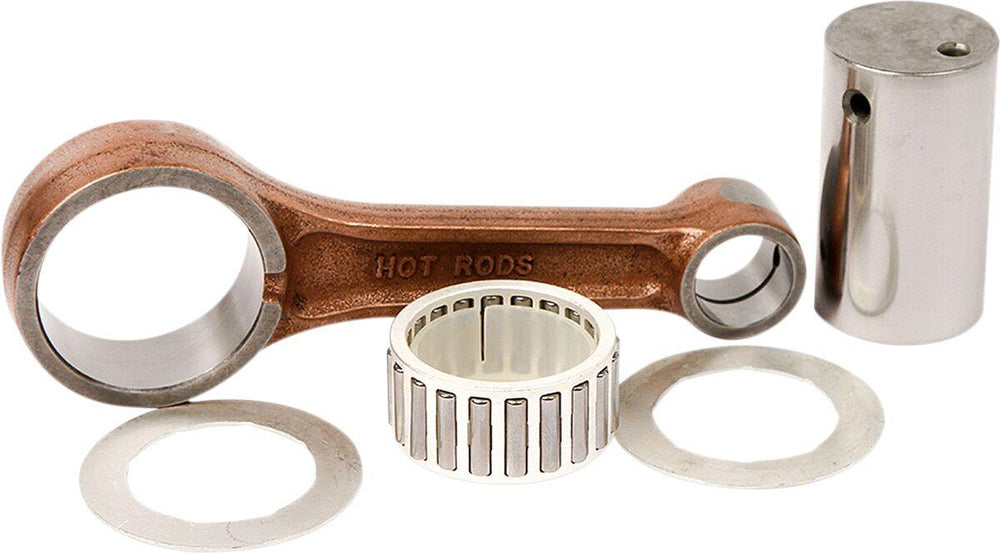

The Hot Rods Connecting Rod Kit For Yamaha YFM 350 Raptor 2004 is part of the latest collection from Hot Rods.

Features:

• Heavy-duty OE replacement connecting rods
• Certified 8620 AISI steel provides superior strength
• Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to level of 58-62Rc
• Features the latest in caged needle roller bearing designs for high rpm longevity
• Uniquely designed big end uses strategically located side scalloping and vent slots to minimize bearing race distortion at high rpm
• Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing
• Shot-peened to eliminate surface stress risers and to smoothly blend together the rod forging's radiuses
• Double honing produces an ultra-round bearing surface for reliability at high rpm
• Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing and silver-coated bronze phosphor thrust washers
• Made in the USA
• Compatible with Hot Rods and OE crankshafts.
Connecting Rod Big End I.D. 41.000 mm Connecting Rod Big End Width: 20.000 mm Connecting Rod Center-to-Center: 112.500 mm Connecting Rod Small End I.D. 19.000 mm Connecting Rod Small End Width: 20.000 mm Thrust Washer Thickness: 1.000 mm Pin Length: 57.800 mm Kit Includes: • Connecting Rod • Crank Pin • Crank Pin Bearing • Thrust Washers

Specifications:

• Displacement: 350 cc
• Engine Type: 4-Cycle
• Material: 8620 Steel
• Product Name: Connecting Rod Kit
• Research Value: Finalized
• Riding Style: ATV
• Units: Kit

To fit:

• YAMAHA YFM 350 R 2005 Raptor SE American Models
• YAMAHA YFM 350 R 2005 Raptor American Models
• YAMAHA YFM 350 R 2006 Raptor SE American Models
• YAMAHA YFM 350 R 2006 Raptor American Models
• YAMAHA YFM 350 R 2007 Raptor SE2 American Models
• YAMAHA YFM 350 R 2007 Raptor SE American Models
• YAMAHA YFM 350 R 2007 Raptor American Models
• YAMAHA YFM 350 R 2008 Raptor American Models
• YAMAHA YFM 350 R 2009 Raptor American Models
• YAMAHA YFM 350 R 2010 Raptor American Models
• YAMAHA YFM 350 R 2011 Raptor American Models
• YAMAHA YFM 350 R 2012 Raptor American Models
• YAMAHA YFM 350 R 2013 Raptor American Models
• YAMAHA YFM 350 X 1987 Warrior American Models
• YAMAHA YFM 350 X 1988 Warrior American Models
• YAMAHA YFM 350 X 1989 Warrior American Models
• YAMAHA YFM 350 X 1990 Warrior American Models
• YAMAHA YFM 350 X 1991 Warrior Maine & New Hampshire American Models
• YAMAHA YFM 350 X 1991 Warrior American Models
• YAMAHA YFM 350 X 1992 Warrior Maine & New Hampshire American Models
• YAMAHA YFM 350 X 1992 Warrior American Models
• YAMAHA YFM 350 X 1993 Warrior Maine & New Hampshire American Models
• YAMAHA YFM 350 X 1993 Warrior American Models
• YAMAHA YFM 350 X 1994 Warrior Maine & New Hampshire American Models
• YAMAHA YFM 350 X 1994 Warrior American Models
• YAMAHA YFM 350 X 1995 Warrior Maine & New Hampshire American Models
• YAMAHA YFM 350 X 1995 Warrior American Models
• YAMAHA YFM 350 X 1996 Warrior Maine & New Hampshire American Models
• YAMAHA YFM 350 X 1996 Warrior American Models
• YAMAHA YFM 350 X 1997 Warrior Maine & New Hampshire American Models
• YAMAHA YFM 350 X 1997 Warrior American Models
• YAMAHA YFM 350 X 1998 Warrior American Models
• YAMAHA YFM 350 X 1999 Warrior American Models
• YAMAHA YFM 350 X 2000 Warrior American Models
• YAMAHA YFM 350 X 2001 Warrior American Models
• YAMAHA YFM 350 X 2002 Warrior American Models
• YAMAHA YFM 350 X 2003 Warrior American Models
• YAMAHA YFM 350 X 2004 Warrior American Models
• YAMAHA YFM 350 2004 Raptor American Models

Manufacturer part number: 8605

View all Hot Rods. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Hot Rods Connecting Rod Kit For Yamaha YFM 350 Raptor 2004
