Product description

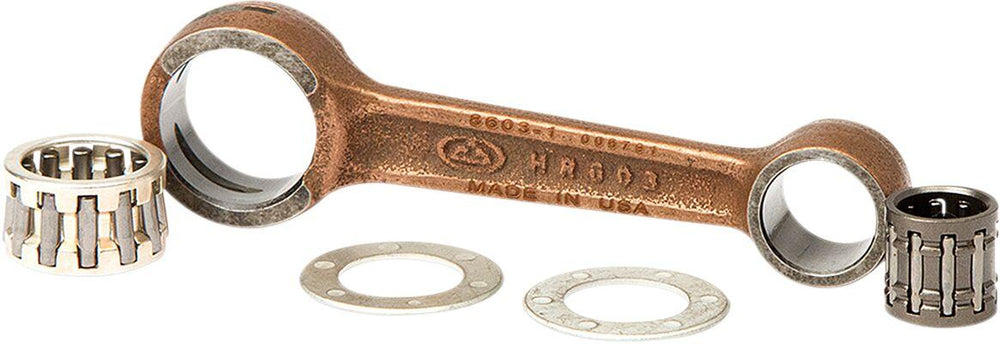

The Hot Rods Connecting Rod Kit For Kawasaki KFX80 2X4 2003-2006 is part of the latest collection from Hot Rods.

Features:

• Heavy-duty OE replacement connecting rods
• Certified 8620 AISI steel provides superior strength
• Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to level of 58-62Rc
• Features the latest in caged needle roller bearing designs for high rpm longevity
• Uniquely designed big end uses strategically located side scalloping and vent slots to minimize bearing race distortion at high rpm
• Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing
• Shot-peened to eliminate surface stress risers and to smoothly blend together the rod forging's radiuses
• Double honing produces an ultra-round bearing surface for reliability at high rpm
• Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing and silver-coated bronze phosphor thrust washers
• Made in the USA
• Compatible with Hot Rods and OE crankshafts.
Connecting Rod Big End I.D. 23.000 mm Connecting Rod Big End Width: 13.900 mm Connecting Rod Center-to-Center: 85.000 mm Connecting Rod Small End I.D. 16.000 mm Connecting Rod Small End Width: 13.900 mm Thrust Washer Thickness: 1.000 mm Pin Length: 36.700 mm Kit Includes: • Connecting Rod • Crank Pin • Crank Pin Bearing • Thrust Washers

Specifications:

• Displacement: 80 cc
• Material: 8620 Steel
• Product Name: Connecting Rod Kit
• Research Value: Finalized
• Riding Style: ATV
• Units: Kit

To fit:

• KAWASAKI KFX 80 2X4 2003 All Models
• KAWASAKI KFX 80 2X4 2004 All Models
• KAWASAKI KFX 80 2X4 2005 All Models
• KAWASAKI KFX 80 2X4 2006 All Models
• SUZUKI LT 80 1988 Quadsport All Models
• SUZUKI LT 80 1989 Quadsport All Models
• SUZUKI LT 80 1990 Quadsport All Models
• SUZUKI LT 80 1991 Quadsport All Models
• SUZUKI LT 80 1992 Quadsport All Models
• SUZUKI LT 80 1993 Quadsport All Models
• SUZUKI LT 80 1994 Quadsport All Models
• SUZUKI LT 80 1995 Quadsport All Models
• SUZUKI LT 80 1996 Quadsport All Models
• SUZUKI LT 80 1997 Quadsport All Models
• SUZUKI LT 80 1998 Quadsport All Models
• SUZUKI LT 80 1999 Quadsport All Models
• SUZUKI LT 80 2000 Quadsport All Models
• SUZUKI LT 80 2001 Quadsport All Models
• SUZUKI LT 80 2002 Quadsport All Models
• SUZUKI LT 80 2003 Quadsport All Models
• SUZUKI LT 80 2004 Quadsport All Models
• SUZUKI LT 80 2005 Quadsport All Models
• SUZUKI LT 80 2006 Quadsport All Models

Manufacturer part number: 8603

View all Hot Rods. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Hot Rods Connecting Rod Kit For Kawasaki KFX80 2X4 2003-2006
