Product description

The Vertex Cast Piston Kit For Yamaha YFM 660 F 4X4 Grizzly 2002-2004 +0.50 mm is part of the latest collection from Vertex.

Features:

• The piston is heat-treated with a T-5 hardening and tempering cycle
• The piston skirt is coated with a high-tech Molybdenum Disulphite coating for faster break in time and increased piston life
• Cast piston is gravity-cast aluminum alloy (not forged) with 18% silicone content
• OE replacement piston

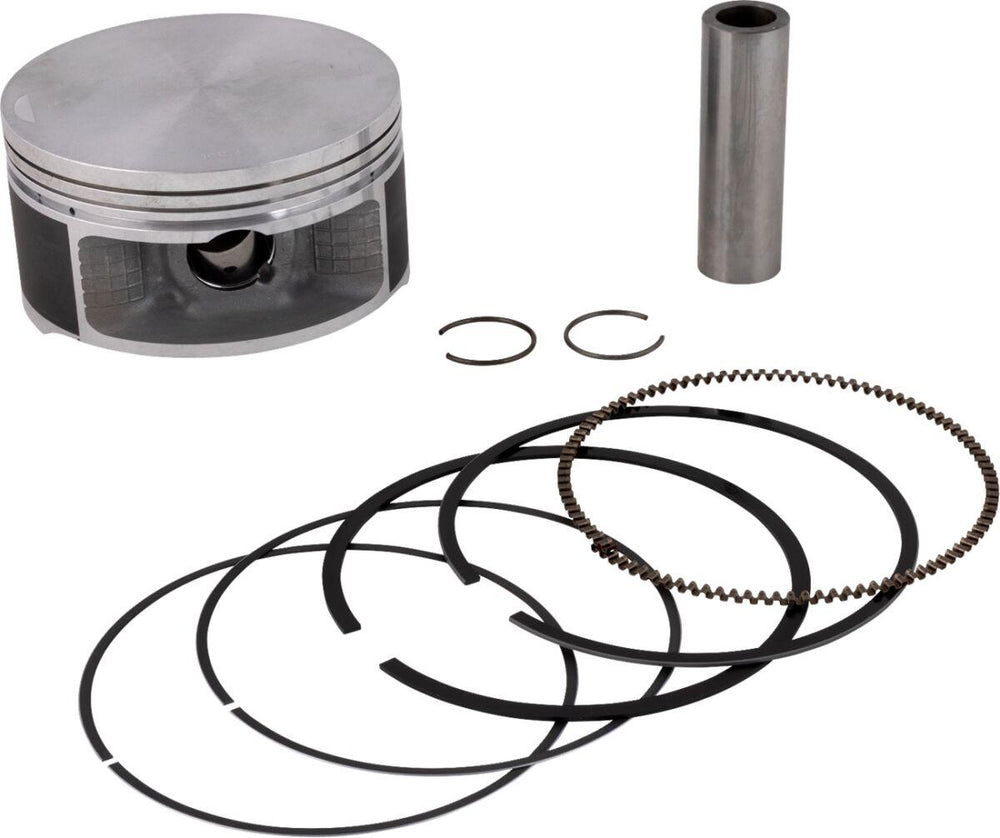

• Kit includes piston, rings, wrist pin and circlips
Kit Includes: - +0.50 MM Oversized Cast Replica Piston - Ring Set - Wrist Pin - Circlips

Specifications:

• Bore - Oversize Metric: +0.50 mm
• Bore - Oversize: +0.50 mm
• Compression Ratio Imperial: 9.1
• Compression Ratio: 9.1
• Cylinder Diameter Metric: 100.50 mm
• Cylinder Diameter: 100.50 mm
• Displacement: 660 cc
• Engine Type: 4-Stroke
• Model: Cast Replica
• Piston Diameter Metric: 100.45 mm
• Piston Diameter: 100.45 mm
• Piston Material: Aluminum Alloy| Cast

To fit:

• YAMAHA YFM 660 FAHD 2006 Grizzly Hunter Ducks Unlimited Edition American Models
• YAMAHA YFM 660 FAHW 2005 Grizzly Hunter Wetland Edition American Models
• YAMAHA YFM 660 FAH 2005 Grizzly Hunter American Models
• YAMAHA YFM 660 FAH 2006 Grizzly Hunter American Models
• YAMAHA YFM 660 FA 2005 Grizzly Special Edition American Models
• YAMAHA YFM 660 FA 2005 Grizzly American Models
• YAMAHA YFM 660 FA 2006 Grizzly Special Edition American Models
• YAMAHA YFM 660 FA 2006 Grizzly American Models
• YAMAHA YFM 660 FGH 2007 Grizzly Hunter American Models
• YAMAHA YFM 660 FGH 2008 Grizzly Hunter American Models
• YAMAHA YFM 660 FG 2007 Grizzly American Models
• YAMAHA YFM 660 FG 2008 Grizzly American Models
• YAMAHA YFM 660 FH 2002 Grizzly Hunter American Models
• YAMAHA YFM 660 FH 2003 Grizzly Hunter Realtree Hardwood American Models
• YAMAHA YFM 660 FH 2003 Grizzly Hunter Wetland Edition American Models
• YAMAHA YFM 660 FH 2004 Grizzly Hunter Hardwoods Camo American Models
• YAMAHA YFM 660 FH 2004 Grizzly Hunter Wetland Edition American Models
• YAMAHA YFM 660 F 2002 Grizzly Silver American Models
• YAMAHA YFM 660 F 2002 Grizzly American Models
• YAMAHA YFM 660 F 2003 Grizzly Titanium American Models
• YAMAHA YFM 660 F 2003 Grizzly American Models
• YAMAHA YFM 660 F 2004 Grizzly Limited Edition American Models
• YAMAHA YFM 660 F 2004 Grizzly American Models
• YAMAHA YFM 660 R 2001 Raptor American Models
• YAMAHA YFM 660 R 2002 Raptor American Models
• YAMAHA YFM 660 R 2003 Raptor Limited Edition American Models
• YAMAHA YFM 660 R 2003 Raptor American Models
• YAMAHA YFM 660 R 2004 Raptor Limited Edition American Models
• YAMAHA YFM 660 R 2004 Raptor American Models
• YAMAHA YFM 660 R 2005 Raptor Special Edition American Models
• YAMAHA YFM 660 R 2005 Raptor American Models
• YAMAHA YXR 660 FAH 2004 Rhino Hunter Hardwoods Camo American Models
• YAMAHA YXR 660 FAH 2005 Rhino Hunter Hardwoods Camo American Models
• YAMAHA YXR 660 FAH 2006 Rhino Hunter American Models
• YAMAHA YXR 660 FA 2004 Rhino American Models
• YAMAHA YXR 660 FA 2005 Rhino American Models
• YAMAHA YXR 660 FA 2006 Rhino Exploring Edition American Models
• YAMAHA YXR 660 FA 2006 Rhino Special Edition American Models
• YAMAHA YXR 660 FA 2006 Rhino American Models
• YAMAHA YXR 660 FH 2007 Rhino Hunter Hardwoods Camo American Models
• YAMAHA YXR 660 F 2007 Rhino Ducks Unlimited Edition American Models
• YAMAHA YXR 660 F 2007 Rhino Exploring Edition American Models
• YAMAHA YXR 660 F 2007 Rhino Special Edition American Models
• YAMAHA YXR 660 F 2007 Rhino Sport Edition American Models
• YAMAHA YXR 660 F 2007 Rhino American Models

Manufacturer part number: 23104050

View all Vertex. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Vertex Cast Piston Kit For Yamaha YFM 660 F 4X4 Grizzly 2002-2004 +0.50 mm
