Product description

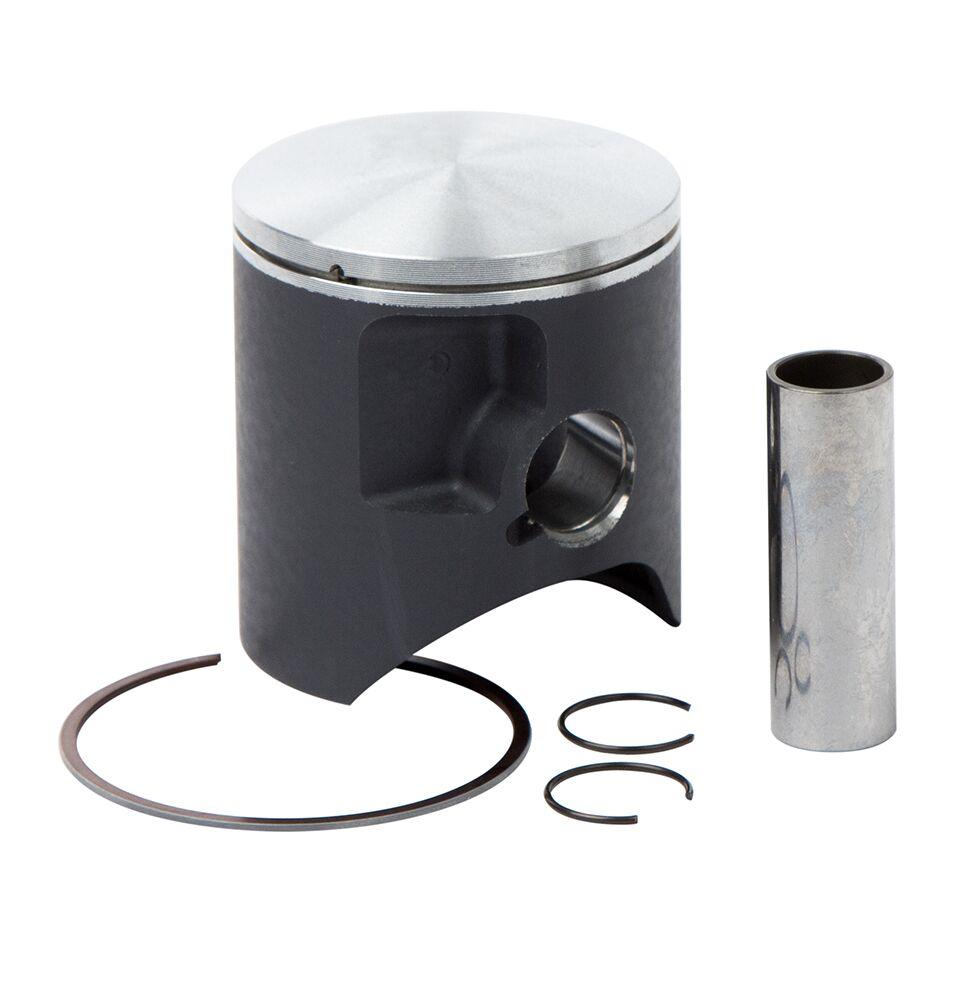

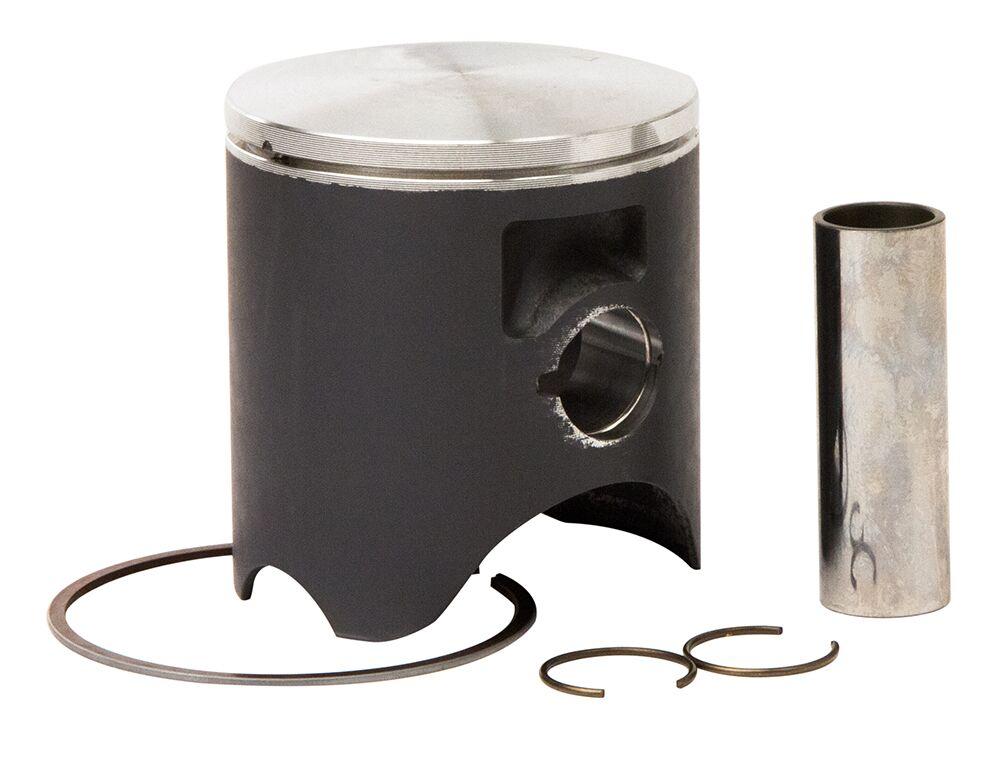

The Vertex Cast Piston Kit For Suzuki RM 85 2002-2018 Standard Size A is part of the latest collection from Vertex.

Features:

• Cast Replica – Cast piston in original OE form
• All pistons are heat treated with a T-5 hardening and tempering cycle
• All piston skirts are coated with a high-tech Molybdenum Disulphite coating for faster break-in time and increased piston life
• Cast piston kits are gravity-cast aluminum alloy (not forged) with 18% silicone content, which produces an extremely light but very strong piston
• Replica pistons and all rings are OEM replacements
• Replacement two-stroke piston rings sold individually; four stroke piston rings sold as a set

Specifications:

• Bore Size: 48.00 mm
• Displacement: 85 cc
• Engine Type: 2-Stroke
• Piston Diameter: 47.94 mm
• Piston Material: Aluminum Alloy| Cast
• Piston Size: Standard Size A
• Product Name: Piston Kit
• Research Value: Finalized
• Riding Style: Off-Road
• Ring Material: Nitride Coated| Steel
• Skirt Coating: Moly Coated
• Style: Cast Replica

To fit:

• SUZUKI RM 85 17/14 2019 Small Wheel All Models
• SUZUKI RM 85 17/14 2020 Small Wheel American Models
• SUZUKI RM 85 17/14 2021 Small Wheel American Models
• SUZUKI RM 85 17/14 2022 Small Wheel American Models
• SUZUKI RM 85 17/14 2023 Small Wheel American Models
• SUZUKI RM 85 L 2003 Big Wheel All Models
• SUZUKI RM 85 L 2004 Big Wheel All Models
• SUZUKI RM 85 L 2005 Big Wheel All Models
• SUZUKI RM 85 L 2006 Big Wheel All Models
• SUZUKI RM 85 L 2007 Big Wheel All Models
• SUZUKI RM 85 L 2008 Big Wheel All Models
• SUZUKI RM 85 L 2009 Big Wheel All Models
• SUZUKI RM 85 L 2010 Big Wheel All Models
• SUZUKI RM 85 L 2011 Big Wheel All Models
• SUZUKI RM 85 L 2012 Big Wheel All Models
• SUZUKI RM 85 L 2013 Big Wheel All Models
• SUZUKI RM 85 L 2014 Big Wheel All Models
• SUZUKI RM 85 L 2015 Big Wheel All Models
• SUZUKI RM 85 L 2016 Big Wheel All Models
• SUZUKI RM 85 L 2017 Big Wheel All Models
• SUZUKI RM 85 2002 Small Wheel All Models
• SUZUKI RM 85 2003 Small Wheel All Models
• SUZUKI RM 85 2004 Small Wheel All Models
• SUZUKI RM 85 2005 Small Wheel All Models
• SUZUKI RM 85 2006 Small Wheel All Models
• SUZUKI RM 85 2007 Small Wheel All Models
• SUZUKI RM 85 2008 Small Wheel All Models
• SUZUKI RM 85 2009 Small Wheel All Models
• SUZUKI RM 85 2010 Small Wheel All Models
• SUZUKI RM 85 2011 Small Wheel All Models
• SUZUKI RM 85 2012 Small Wheel All Models
• SUZUKI RM 85 2013 Small Wheel All Models
• SUZUKI RM 85 2014 Small Wheel All Models
• SUZUKI RM 85 2015 Small Wheel All Models
• SUZUKI RM 85 2016 Small Wheel All Models
• SUZUKI RM 85 2017 Small Wheel All Models
• SUZUKI RM 85 2018 Small Wheel All Models

Manufacturer part number: 22877A

View all Vertex. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Vertex Cast Piston Kit For Suzuki RM 85 2002-2018 Standard Size A
