Product description

The Vertex Cast Top End Piston Kit For Yamaha YZ250 2002-2021 Standard Size C is part of the latest collection from Vertex.

Features:

• Replica – Cast piston in original OE form
• All pistons are heat-treated with a T-5 hardening and tempering cycle
• All piston skirts are coated with a high-tech Molybdenum Disulphite coating for faster break-in time and increased piston life
• Cast piston kits are gravity-cast aluminum alloy (not forged) with 18% silicone content, which produces an extremely light but very strong piston
• Replica pistons and all rings are OEM replacements

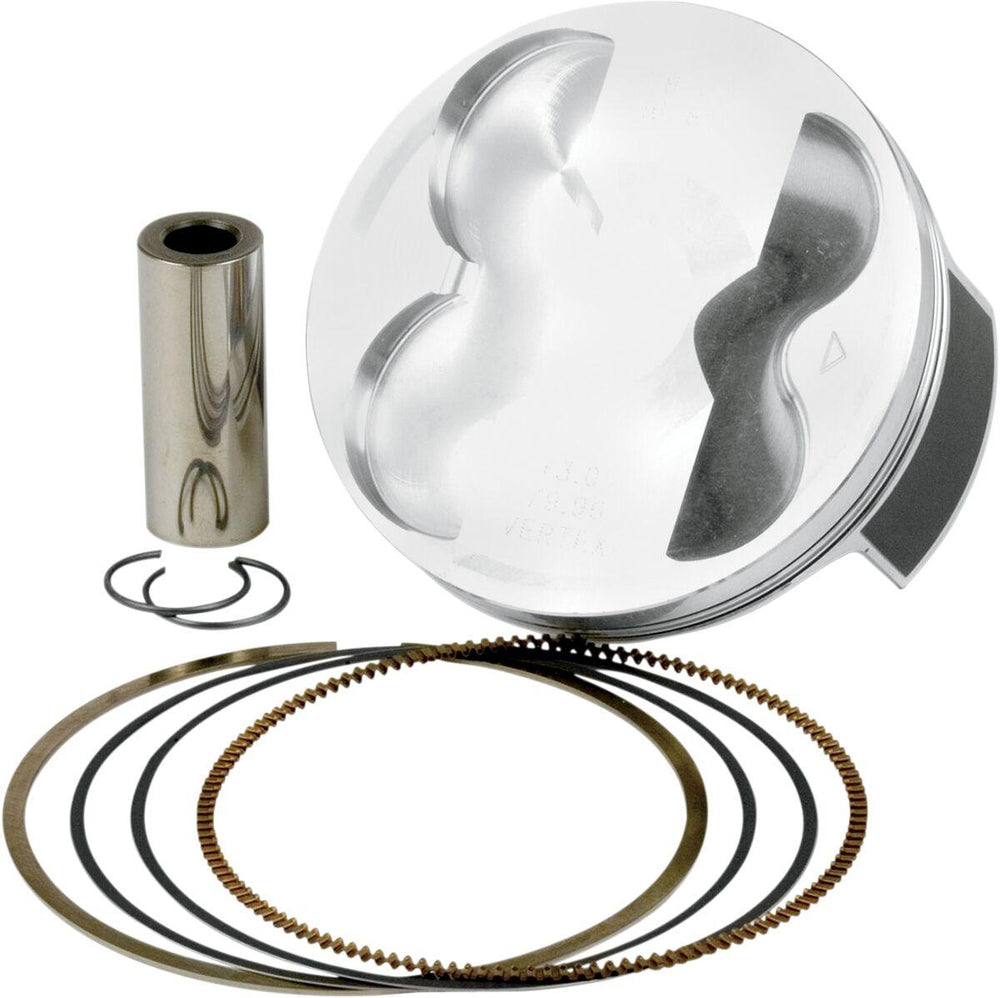

• Top end piston kits include piston, rings, wrist pin, circlips and top end gaskets
• Replacement two-stroke piston rings sold individually; four stroke piston rings sold as a set

Specifications:

• Bore Size: 66.40 mm
• Displacement: 250 cc
• Engine Type: 2-Stroke
• Piston Diameter: 66.36 mm
• Piston Material: Aluminum Alloy| Cast
• Piston Size: Standard Size C
• Product Name: Piston Kit
• Research Value: Finalized
• Ring Material: Nitride Coated| Steel
• Style: Cast Replica
• Type: Top End
• Units: Kit

To fit:

• YAMAHA YZ 250 2002 All Models
• YAMAHA YZ 250 2003 All Models
• YAMAHA YZ 250 2004 All Models
• YAMAHA YZ 250 2005 All Models
• YAMAHA YZ 250 2006 All Models
• YAMAHA YZ 250 2007 All Models
• YAMAHA YZ 250 2008 All Models
• YAMAHA YZ 250 2009 All Models
• YAMAHA YZ 250 2010 All Models
• YAMAHA YZ 250 2011 All Models
• YAMAHA YZ 250 2012 All Models
• YAMAHA YZ 250 2013 All Models
• YAMAHA YZ 250 2014 All Models
• YAMAHA YZ 250 2015 All Models
• YAMAHA YZ 250 2016 All Models
• YAMAHA YZ 250 2017 All Models
• YAMAHA YZ 250 2018 European Models
• YAMAHA YZ 250 2019 All Models
• YAMAHA YZ 250 2020 All Models
• YAMAHA YZ 250 2021 All Models

Manufacturer part number: VTK22584C-2

View all Vertex. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Vertex Cast Top End Piston Kit For Yamaha YZ250 2002-2021 Standard Size C
