Product description

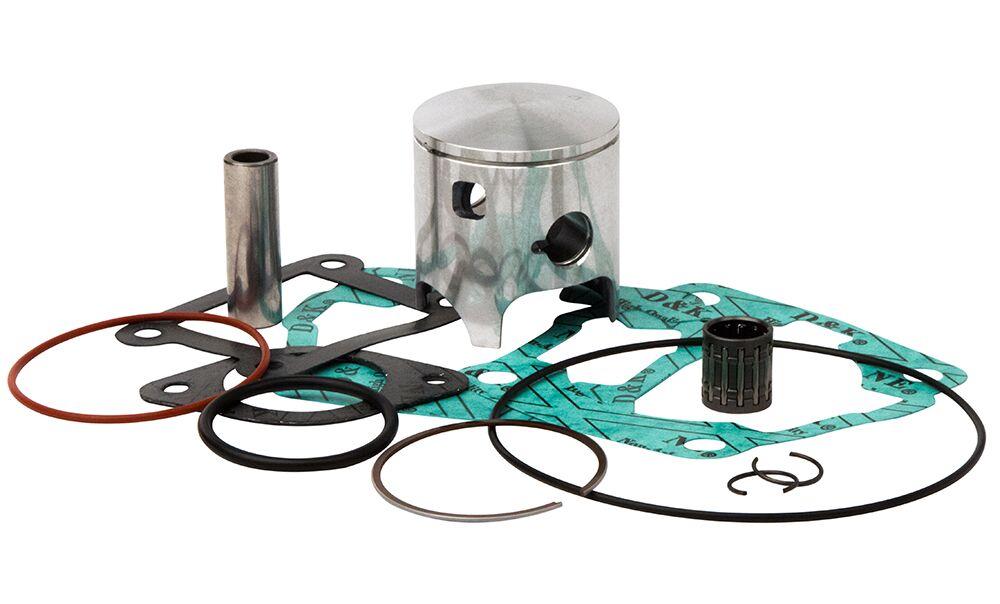

The Vertex Cast Top End Piston Kit For KTM SX85 2013-2017 Standard Size A is part of the latest collection from Vertex.

Features:

• Replica – Cast piston in original OE form
• All pistons are heat-treated with a T-5 hardening and tempering cycle
• All piston skirts are coated with a high-tech Molybdenum Disulphite coating for faster break-in time and increased piston life
• Cast piston kits are gravity-cast aluminum alloy (not forged) with 18% silicone content, which produces an extremely light but very strong piston
• Replica pistons and all rings are OEM replacements
• Top end piston kits include piston, rings, wrist pin, circlips and top end gaskets
• Replacement two-stroke piston rings sold individually; four stroke piston rings sold as a set

Specifications:

• Bore Size: 47.00 mm
• Displacement: 85 cc
• Engine Type: 2-Stroke
• Piston Diameter: 46.94 mm
• Piston Material: Aluminum Alloy| Cast
• Piston Size: Standard Size A
• Product Name: Piston Kit
• Research Value: Finalized
• Ring Material: Nitride Coated| Steel
• Style: Cast Replica
• Type: Top End
• Units: Kit

To fit:

• HUSQVARNA TC 85 17/14 2014 All Models
• HUSQVARNA TC 85 17/14 2015 All Models
• HUSQVARNA TC 85 17/14 2016 All Models
• HUSQVARNA TC 85 17/14 2017 All Models
• HUSQVARNA TC 85 19/16 2014 European Models
• HUSQVARNA TC 85 19/16 2015 European Models
• HUSQVARNA TC 85 19/16 2016 European Models
• HUSQVARNA TC 85 19/16 2017 European Models
• KTM SX 85 17/14 2013 All Models
• KTM SX 85 17/14 2014 All Models
• KTM SX 85 17/14 2015 All Models
• KTM SX 85 17/14 2016 All Models
• KTM SX 85 17/14 2017 All Models
• KTM SX 85 19/16 2013 European Models
• KTM SX 85 19/16 2014 European Models
• KTM SX 85 19/16 2015 European Models
• KTM SX 85 19/16 2016 European Models
• KTM SX 85 19/16 2017 European Models

Manufacturer part number: VTK24212A-1

View all Vertex. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Vertex Cast Top End Piston Kit For KTM SX85 2013-2017 Standard Size A
