Product description

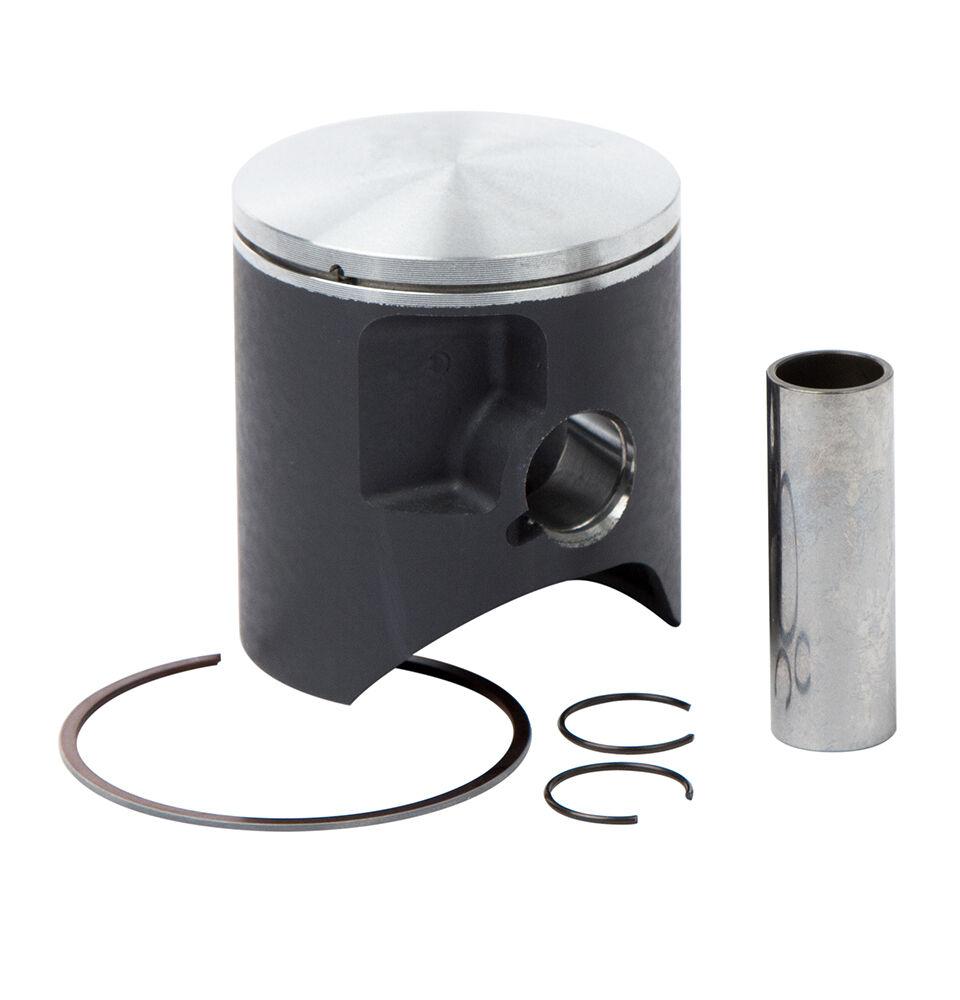

The Vertex Cast Race Top End Piston Kit For KTM EXC125 2002-2006 Standard Size A is part of the latest collection from Vertex.

Features:

• Race – Cast piston developed with Vertex technology and race shape profile
• All pistons are heat treated with a T-5 hardening and tempering cycle
• All piston skirts are coated with a high-tech Molybdenum Disulphite coating for faster break-in time and increased piston life
• Cast piston kits are gravity cast aluminum alloy (not forged) with 18% silicone content, which produces an extremely light but very strong piston
• Top end piston kits include piston, rings, wrist pin, circlips and top end gaskets
• Replacement two-stroke piston rings sold individually; four stroke piston rings sold as a set

Specifications:

• Bore Size: 54.00 mm
• Compression Ratio: Standard
• Displacement: 125 cc
• Engine Type: 2-Stroke
• Piston Diameter: 53.94 mm
• Piston Material: Aluminum Alloy| Cast
• Piston Size: Standard Size A
• Product Name: Piston Kit
• Research Value: Finalized
• Riding Style: Off-Road
• Ring Material: Cast| Nitride Coated| Steel
• Skirt Coating: Molybdenum Disulphite

To fit:

• KTM EXC 125 2002 All Models
• KTM EXC 125 2003 All Models
• KTM EXC 125 2004 All Models
• KTM EXC 125 2005 All Models
• KTM EXC 125 2006 All Models
• KTM SX 125 2002 All Models
• KTM SX 125 2003 All Models
• KTM SX 125 2004 All Models
• KTM SX 125 2005 All Models
• KTM SX 125 2006 All Models

Manufacturer part number: VTK24243A-1

View all Vertex. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Vertex Cast Race Top End Piston Kit For KTM EXC125 2002-2006 Standard Size A
