Product description

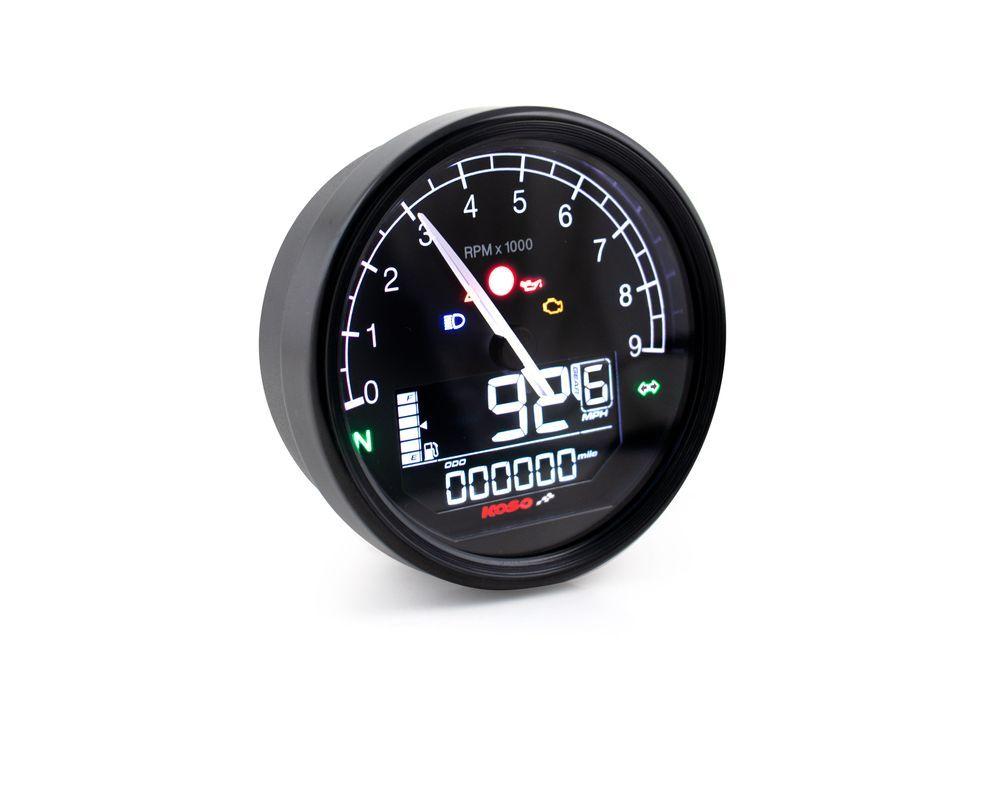

The Koso D80-HD TNT-05 Speedometer/Rev counter with ABE is part of the latest collection from Koso.

Features:

• Speedometer and rev counter with multiple functions.
• Speedometer display range 0-360 km/h, (0-225 mph) switchable with display unit 1 km/h (mph)
• Exceeding the maximum speed limit warning setting range 30-360 km/h, (19 ~ 225 miles/h). When previously set value is reached/exceeded, warning light flashes. With setting unit 1 km/h (mph)
• Odometer display range 0-999.999 km (miles) with display unit 1 km (mile)
• Trip meter A/B display indication 0-999.999 km (miles) with display unit 0.1 km (miles)
• Oil change interval setting range Off / 500 - 16,000 km (300 - 10,000 miles) with setting unit of 100 km (miles)
• Fuel gauge display range 100, 250, 270, 510, 1200, SW, User with display unit of 6 bars that indicate how full the tank is.
• Tyre percentage setting range 50 - 200% with adjustment unit of 1%
• Gear indicator display range (No indication), N, 1, 2, 3, 4, 5, 6 indicates a shift recommendation as soon as a speed range has been exceeded.
• Shift flash with setting range of 1,000 - 8,000 RPM when the previously set range is exceeded the shift flash appears.
• Digital tachometer display range 0 - 8,000 RPM with display unit of 100 RPM.
• Thermometer with display unit of °C or °F (switchable).
• Water thermometer display range -30 - 255°C (-22 ~ 437°F) with display unit of 1°C (°F)
• Voltmeter display range 8 - 18 volts.
• Clock setting range 12 / 24 hour format.
• Indications on the dial include, Warning light 1, Warning light 2, Speed flash, Idle (N), Indicator light, High beam and Engine warning light.
• Type of warnings Light (L), Slow flash (S) and Flash (F)
• Low voltage indicator setting range 8.0 - 18.0 V.
• Background brightness setting range 1 - 5 (darkest) - 5 - 5 (brightest) with setting unit of each level (1-5) = 20%.

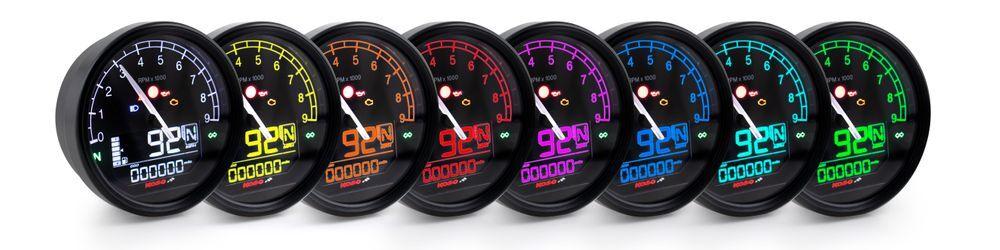

• 7 selectable background colors, Purple, Red, Yellow, Green, Blue, Light blue and White.
• Voltage DC 12V
• Size 94.7 x 94.7 x 69.2 mm

Specifications:

• Face Color: Black
• Features: 7 User-Selectable Colors| Backlit| Includes Temperature Sensor| Indicator Lights
• Housing Color: Black
• Product Name: Gauge Kit
• Research Value: Level 1
• Riding Style: Street
• Style: KM/H| MPH
• Type: Digital Fuel Gauge| Digital Odometer| Digital Speedometer| Digital Thermometer| RPM
• Units: Kit

Manufacturer part number: BA087004

View all Koso. View all Parts and spares.

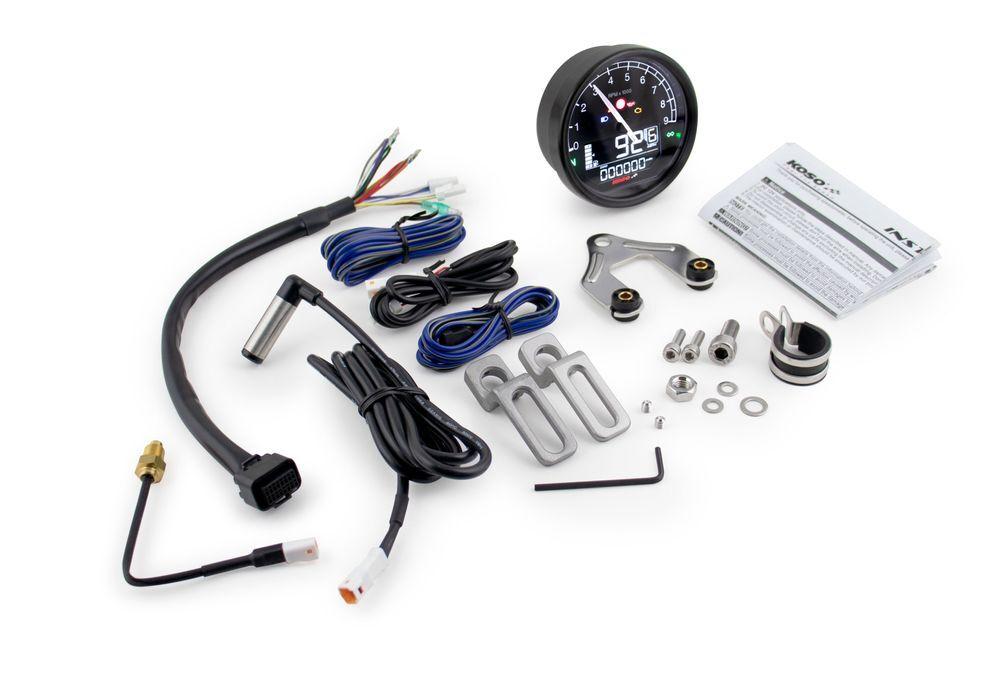

Contents

Your package will include the following:

• 1 X Koso D80-HD TNT-05 Speedometer/Rev counter with ABE
