Product description

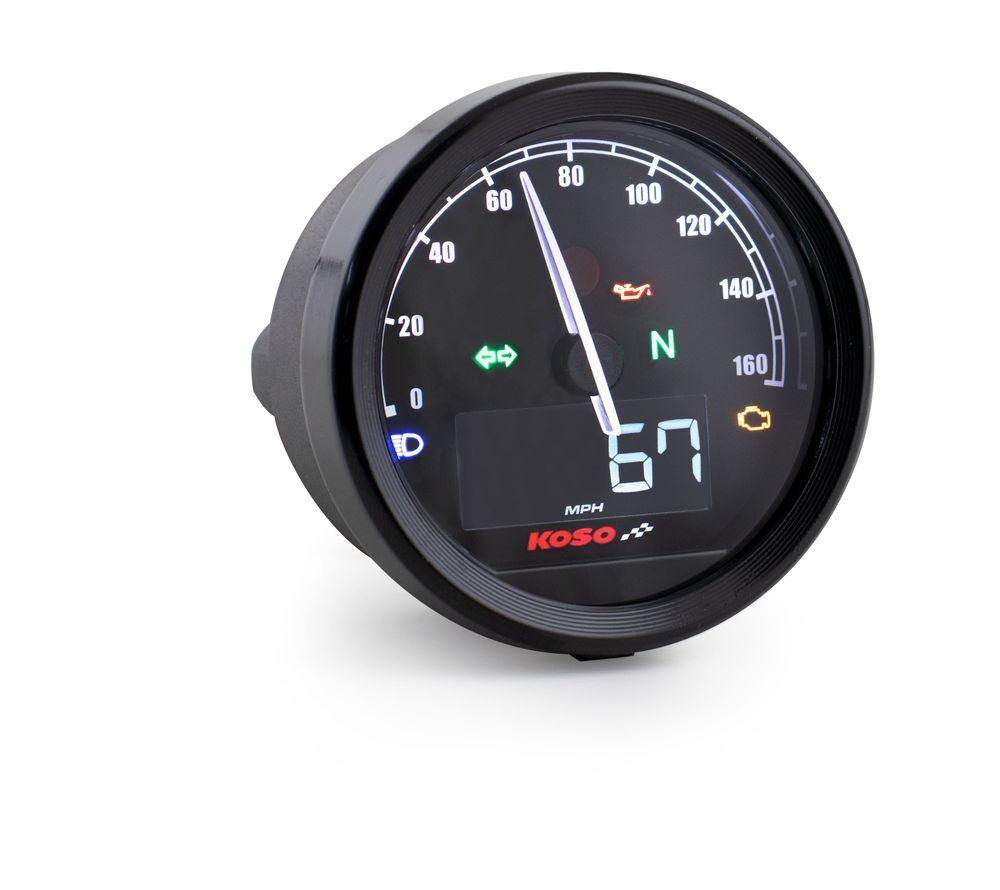

The Koso D60-HD TNT-05 Speedometer with ABE is part of the latest collection from Koso.

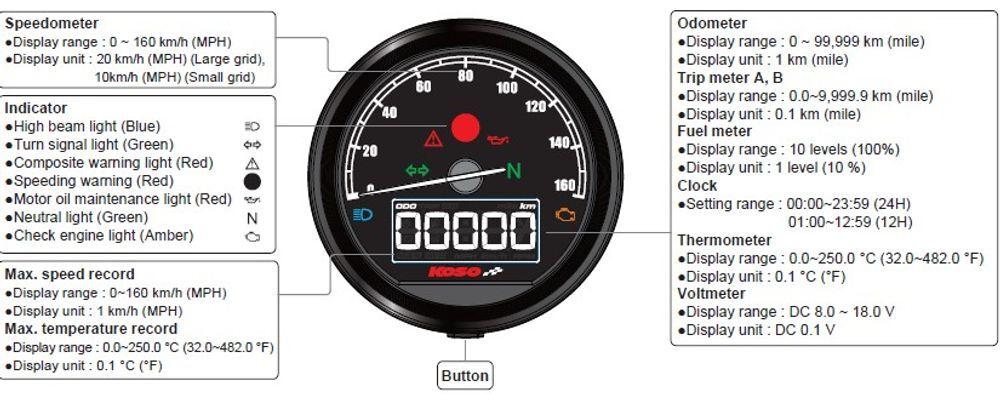

Features:
- Speedometer with multiple functions.
- Speedometer range 0 - 160 km/h (mph) with display unit of 20 km/h (MPH) on the Large grid and 10 km/h (MPH) on the Small grid.
- Speeding warning function display range is 30 - 160 km/h (19 - 100 MPH) when set value is reached or above, warning light will illuminate with display unit of 1 km/h (MPH)
- Maximum speed record Display range is 0 - 160 km/h (MPH) can be returned manually to zero with display unit of 1 km/h (MPH)
- Odometer setting range 0 - 99,999 km (mile) with setting unit of 1 km (mile)
- Trip meter A,B display range 0.0 - 9,999.9 km (mile) can be returned to zero manually with display unit of 0.1 km (mile)
- Circumference setting range 300 - 2,500 mm with setting unit of 1mm
- Sensitive point setting range 1 - 20 P with setting unit of 1 P
- Temperature display range 0.0 - 250.0 °C (32.0~482.0 °F) with display unit of 0.1 °C (°F)
- Overheat warning setting range 60 - 250 °C (140~482 °F) when set value is reached or above warning light will illuminate with setting unit of 1 °C (°F)
- Maximum temperature display range 0.0 - 250.0 °C (32.0 - 482.0 °F) can be manually returned to zero with display unit of 0.1 °C (°F)
- Fuel meter display range 10 levels (100%) with display unit of 1 level (10%)
- Fuel gauge setting range 100 O, 250 O, 270 O, 390 O, Resistance (O) 510 O, 1200 O, Sw, Custom(learning mode), OFF
- Low fuel warning setting range 0 - 30% when set value is reached or below warning light will illuminate with setting unit of 10%.
- Clock setting range 00:00 - 23:59 (24H) and 01:00 - 12:59 (12H)
- Voltmeter display range DC 8.0 - 18.0 V with display unit of DC 0.1 V
- Low voltage warning setting range DC 8.0 - 13.0 V when set value is reached or below warning light will illuminate with setting unit 0.1 V
- Composite warning light setting range Low Fuel (LFUEL), Low voltage(VOLT), Overheat(TEMP) with setting range of Lit.(L), Slow Flash(S), Fast Flash(F) and OFF.
- Backlight brightness setting range 1/5 (Darkest) - 5/5 (Brightest) with setting unit 1/5 (20%).
- Backlight color setting range White, Red, Orange, Yellow, Green, Blue, Light blue, Purple and Loop switch.
- Unit speed unit KM/H and MPH
- Temperature unit °C (Celsius) and °F (Fahrenheit)
- Operating voltage DC 12V
- Operating temperate -10 - +60 °C and Storage temperature -20 - +80 °C

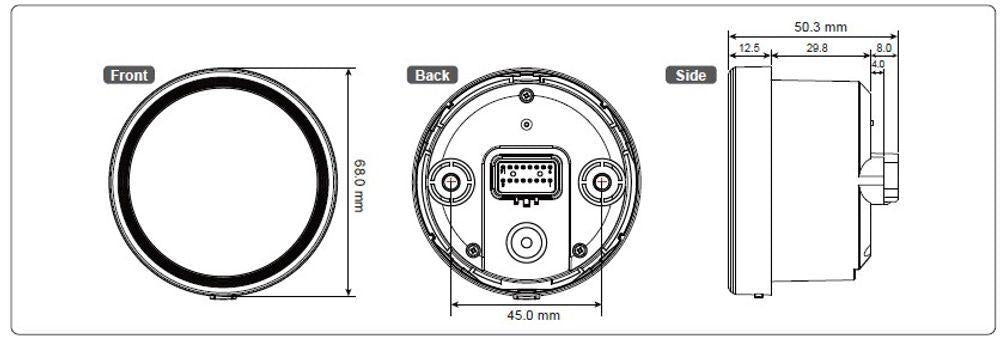

- Meter diameter 60 mm
- Indicator colors High beam light (Blue), Turn signal light (Green), Composite warning light (Red), Speeding warning (Red), Motor oil light (Red), Neutral light (Green) and Check enginge light (Amber)

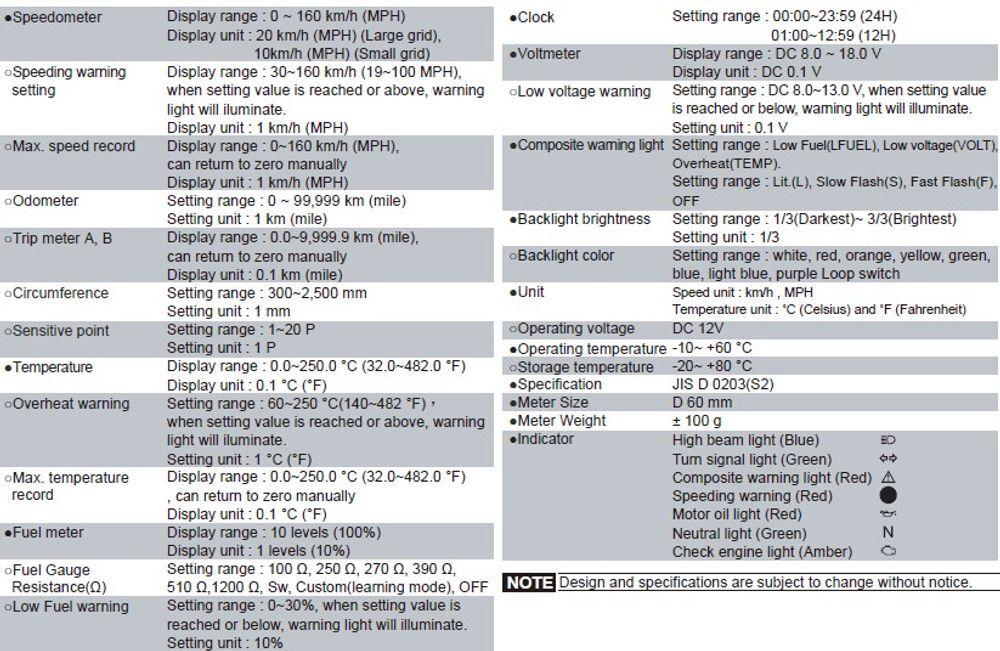

Specifications:
- Calibration: 0 kph - 160 kph
- Face Color: Black
- Features: 7 User-Selectable Colors| Backlit| Includes Temperature Sensor| Indicator Lights
- Housing Color: Black
- Length: 60.00 mm (2.36")
- Product Name: Speedometer
- Research Value: Level 1
- Riding Style: Street
- Style: KM/H| MPH
- Type: Analog Speedometer| Digital Clock| Digital Fuel Gauge| Digital Odometer| Digital Speedometer| Thermometer
- Units: Kit
- Width: 60.00 mm (2.36")
Manufacturer part number: BA085004
View all Koso. View all Parts and spares.
Contents

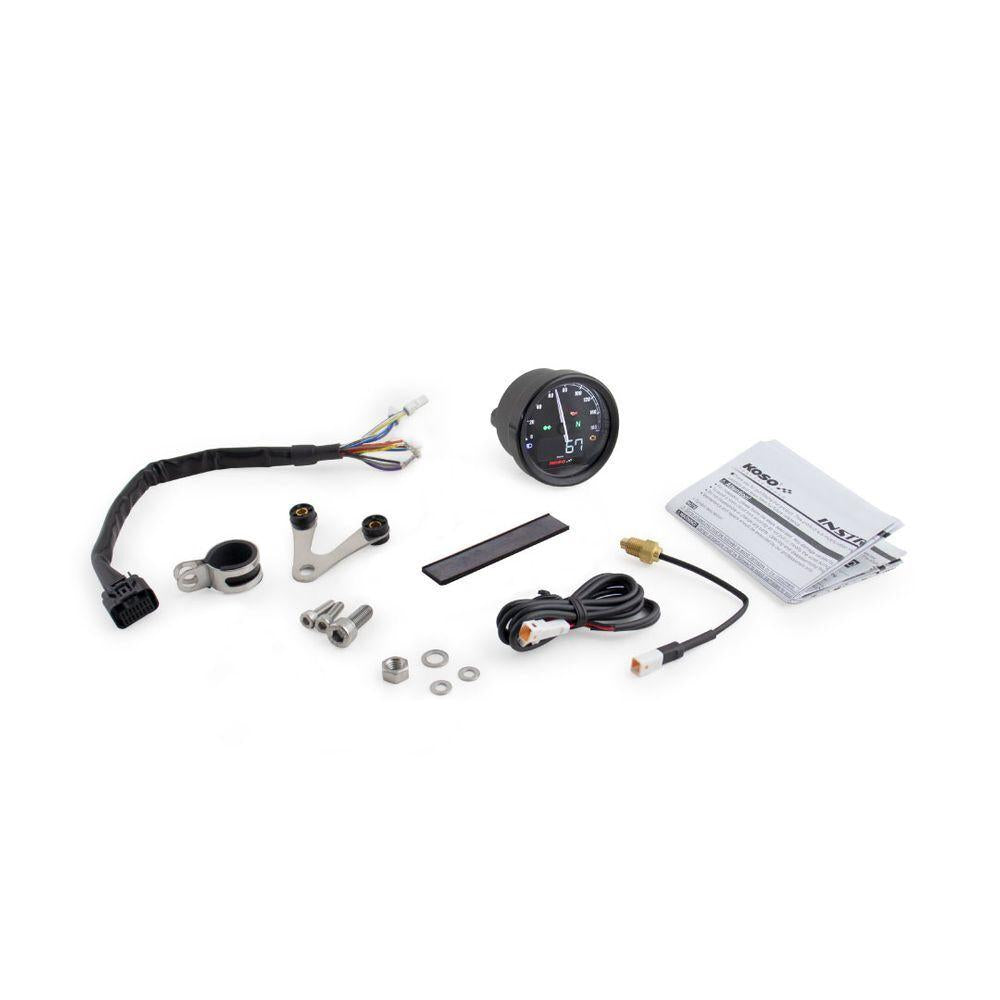

Your package will include the following:
- 1 X Koso D60-HD TNT-05 Speedometer with ABE
Koso is a leading manufacturer of high-quality motorcycle and powersports accessories, specialising in digital gauges, heated grips, lighting, sensors and performance components. Designed for reliability and precision, Koso products are trusted by riders worldwide to enhance both performance and comfort across a wide range of motorcycles, scooters, ATVs and UTVs.
