Product description

The Wossner Piston Kit For Suzuki RM85 2003-2017 is part of the latest collection from Wossner.

Features:

• Pistons made are with high quality, permanent skirt coating to reduce friction and piston rock for quiet and improved performance
• Optimized machining for lightness, as well as maintained strength in key areas such as crown and skirt wall cross section
• Forged from aerospace grade aluminum alloy

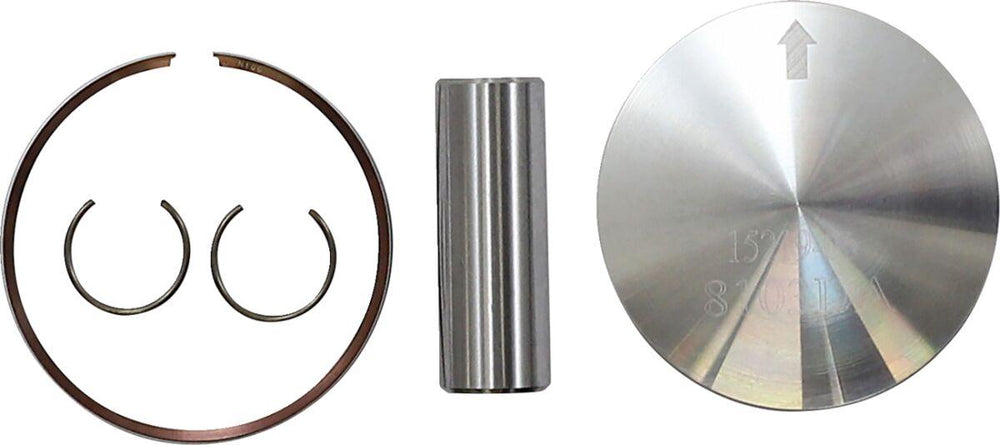

• Piston kit includes piston, rings, pin and clips
Kit Includes: Piston #8103DA, Ring Set #RSV4800, Wrist Pin #WP058, Retaining Clips #CW14

Specifications:

• Bore - Oversize Metric: Standard
• Bore - Oversize: Standard
• Bore Size: 48.00 mm
• Displacement: 84 cc
• Engine Type: 2-Stroke
• Model: Standard Series
• Piston Material: Aluminum Alloy| Forged
• Piston Size Metric: 47.95 mm
• Piston Size: 47.95 mm
• Product Name: Piston Kit
• Stroke Length: 46.80 mm
• Style: Standard Size A

To fit:

• SUZUKI RM 85 L 2003 Big Wheel European Models
• SUZUKI RM 85 L 2004 Big Wheel American Models
• SUZUKI RM 85 L 2004 Big Wheel European Models
• SUZUKI RM 85 L 2005 Big Wheel American Models
• SUZUKI RM 85 L 2005 Big Wheel European Models
• SUZUKI RM 85 L 2006 Big Wheel American Models
• SUZUKI RM 85 L 2006 Big Wheel European Models
• SUZUKI RM 85 L 2007 Big Wheel American Models
• SUZUKI RM 85 L 2007 Big Wheel European Models
• SUZUKI RM 85 L 2008 Big Wheel American Models
• SUZUKI RM 85 L 2008 Big Wheel European Models
• SUZUKI RM 85 L 2009 Big Wheel American Models
• SUZUKI RM 85 L 2009 Big Wheel European Models
• SUZUKI RM 85 L 2010 Big Wheel American Models
• SUZUKI RM 85 L 2010 Big Wheel European Models
• SUZUKI RM 85 L 2011 Big Wheel American Models
• SUZUKI RM 85 L 2011 Big Wheel European Models
• SUZUKI RM 85 L 2012 Big Wheel American Models
• SUZUKI RM 85 L 2012 Big Wheel European Models
• SUZUKI RM 85 L 2013 Big Wheel American Models
• SUZUKI RM 85 L 2013 Big Wheel European Models
• SUZUKI RM 85 L 2014 Big Wheel American Models
• SUZUKI RM 85 L 2014 Big Wheel European Models
• SUZUKI RM 85 L 2015 Big Wheel American Models
• SUZUKI RM 85 L 2015 Big Wheel European Models
• SUZUKI RM 85 L 2016 Big Wheel American Models
• SUZUKI RM 85 L 2016 Big Wheel European Models
• SUZUKI RM 85 L 2017 Big Wheel American Models
• SUZUKI RM 85 L 2017 Big Wheel European Models
• SUZUKI RM 85 2002 Small Wheel All Models
• SUZUKI RM 85 2003 Small Wheel All Models
• SUZUKI RM 85 2004 Small Wheel All Models
• SUZUKI RM 85 2005 Small Wheel All Models
• SUZUKI RM 85 2006 Small Wheel All Models
• SUZUKI RM 85 2007 Small Wheel All Models
• SUZUKI RM 85 2008 Small Wheel All Models
• SUZUKI RM 85 2009 Small Wheel All Models
• SUZUKI RM 85 2010 Small Wheel All Models
• SUZUKI RM 85 2011 Small Wheel All Models
• SUZUKI RM 85 2012 Small Wheel All Models
• SUZUKI RM 85 2013 Small Wheel All Models
• SUZUKI RM 85 2014 Small Wheel All Models
• SUZUKI RM 85 2015 Small Wheel All Models
• SUZUKI RM 85 2016 Small Wheel All Models
• SUZUKI RM 85 2017 Small Wheel All Models
• SUZUKI RM 85 L 2003 Big Wheel American Models

Manufacturer part number: 8103DA

View all Wossner. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Wossner Piston Kit For Suzuki RM85 2003-2017
