Product description

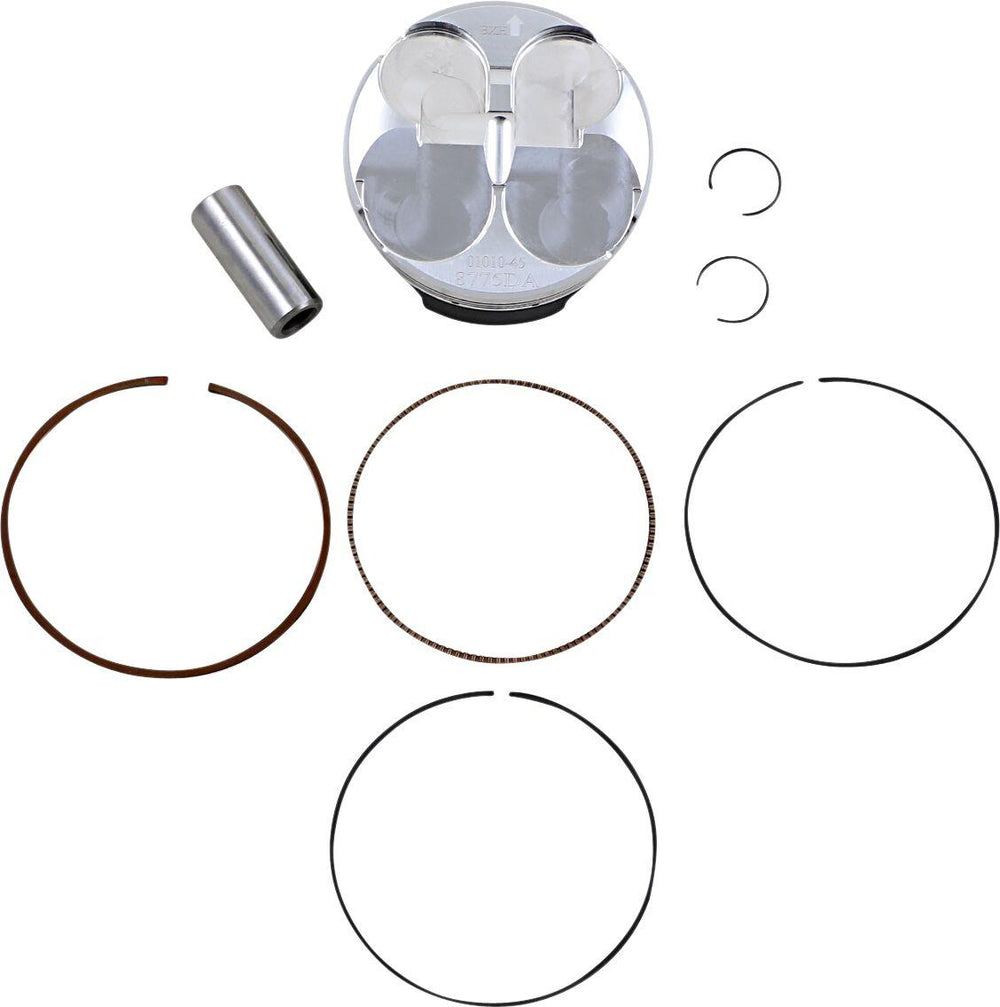

The Wossner Piston Kit For Honda CRF250R 2010-2013 is part of the latest collection from Wossner.

Features:

• Enhanced piston pin oiling slots, radial boss machining, and annular grooves for improved wrist pin lubrication
• Lightweight piston with a tight piston wall clearance for a quieter running engine
• Skirt coated for reduced friction and improved break in performance
• Ring land treatment for improved ring seal and oil control
• Double bridged forging design where noted
• Kit includes piston, rings, wrist pin and pin locks
Double bridge forging. Two ring design. Kit Includes: Piston #8775DA, Ring Set #RIK76.80, Wrist Pin #WP070-SP, Retaining Clips #CW16

Specifications:

• Bore - Oversize Metric: Standard
• Bore - Oversize: Standard
• Bore Size: 76.80 mm
• Compression Ratio Imperial: 14.2
• Compression Ratio: 14.2
• Engine Type: 4-Stroke
• Model: Pro Series
• Piston Material: Aluminum Alloy| Forged
• Piston Size Metric: 76.76 mm
• Piston Size: 76.76 mm
• Product Name: Piston Kit
• Stroke Length: 53.80 mm

To fit:

• HONDA CRF 250 R 2010 European Models
• HONDA CRF 250 R 2011 All Models
• HONDA CRF 250 R 2012 All Models
• HONDA CRF 250 R 2013 All Models
• HONDA CRF 250 R 2010 American Models

Manufacturer part number: 8775DA

View all Wossner. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Wossner Piston Kit For Honda CRF250R 2010-2013
