Product description

The Wossner Piston Kit For Kawasaki KXF250 2011-2014 is part of the latest collection from Wossner.

Features:

• Enhanced piston pin oiling slots, radial boss machining, and annular grooves for improved wrist pin lubrication
• Lightweight piston with a tight piston wall clearance for a quieter running engine
• Skirt coated for reduced friction and improved break in performance
• Ring land treatment for improved ring seal and oil control
• Double bridged forging design where noted

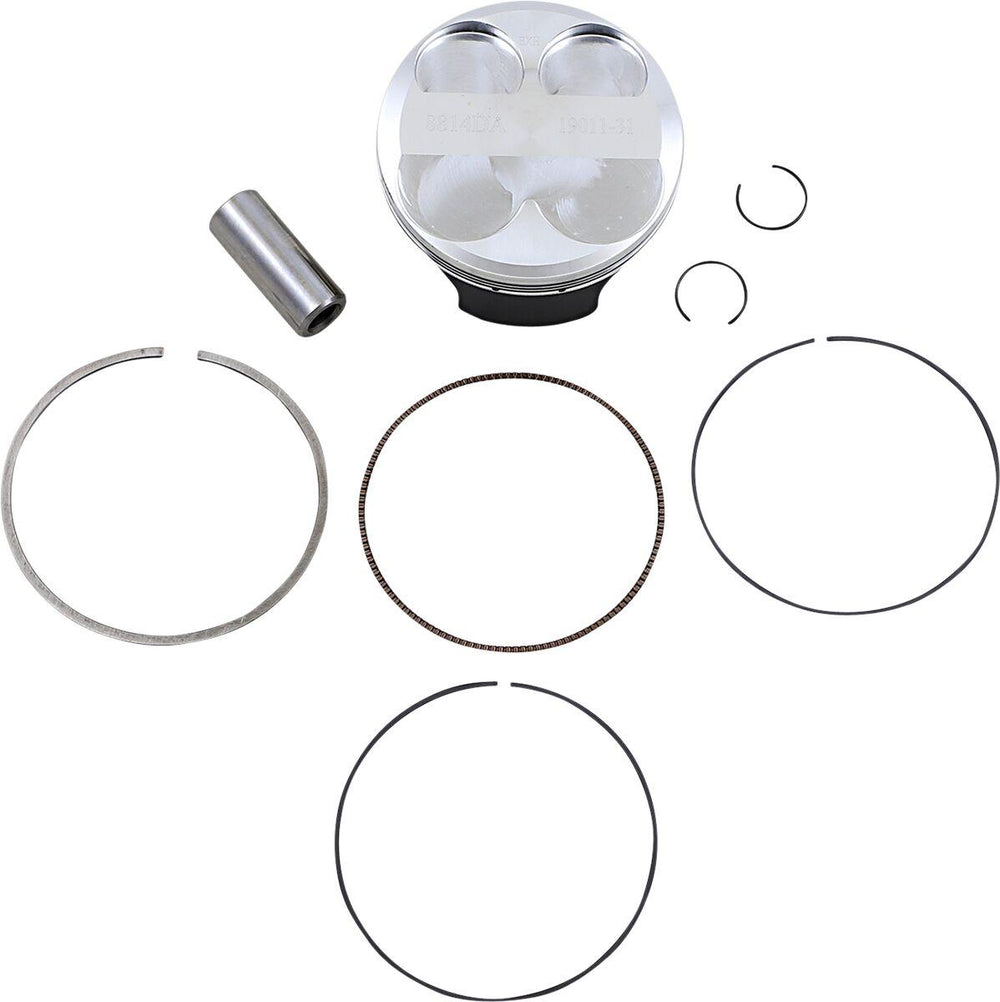

• Kit includes piston, rings, wrist pin and pin locks
Double bridge forging. Two ring design. Kit Includes: Piston #8814DA, Ring Set #RIK77.00D, Wrist Pin #WP070-SP, Retaining Clips #CW16

Specifications:

• Bore - Oversize Metric: Standard
• Bore - Oversize: Standard
• Bore Size: 77.00 mm
• Compression Ratio Imperial: 13.5
• Compression Ratio: 13.5
• Engine Type: 4-Stroke
• Model: Premium Series
• Piston Material: Aluminum Alloy| Forged
• Piston Size Metric: 76.96 mm
• Piston Size: 76.96 mm
• Product Name: Piston Kit
• Stroke Length: 53.60 mm

To fit:

• KAWASAKI KX 250 F 2011 European Models
• KAWASAKI KX 250 F 2012 American Models
• KAWASAKI KX 250 F 2012 European Models
• KAWASAKI KX 250 F 2013 American Models
• KAWASAKI KX 250 F 2013 European Models
• KAWASAKI KX 250 F 2014 American Models
• KAWASAKI KX 250 F 2014 European Models
• KAWASAKI KX 250 F 2011 American Models

Manufacturer part number: 8814DA

View all Wossner. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Wossner Piston Kit For Kawasaki KXF250 2011-2014
