Product description

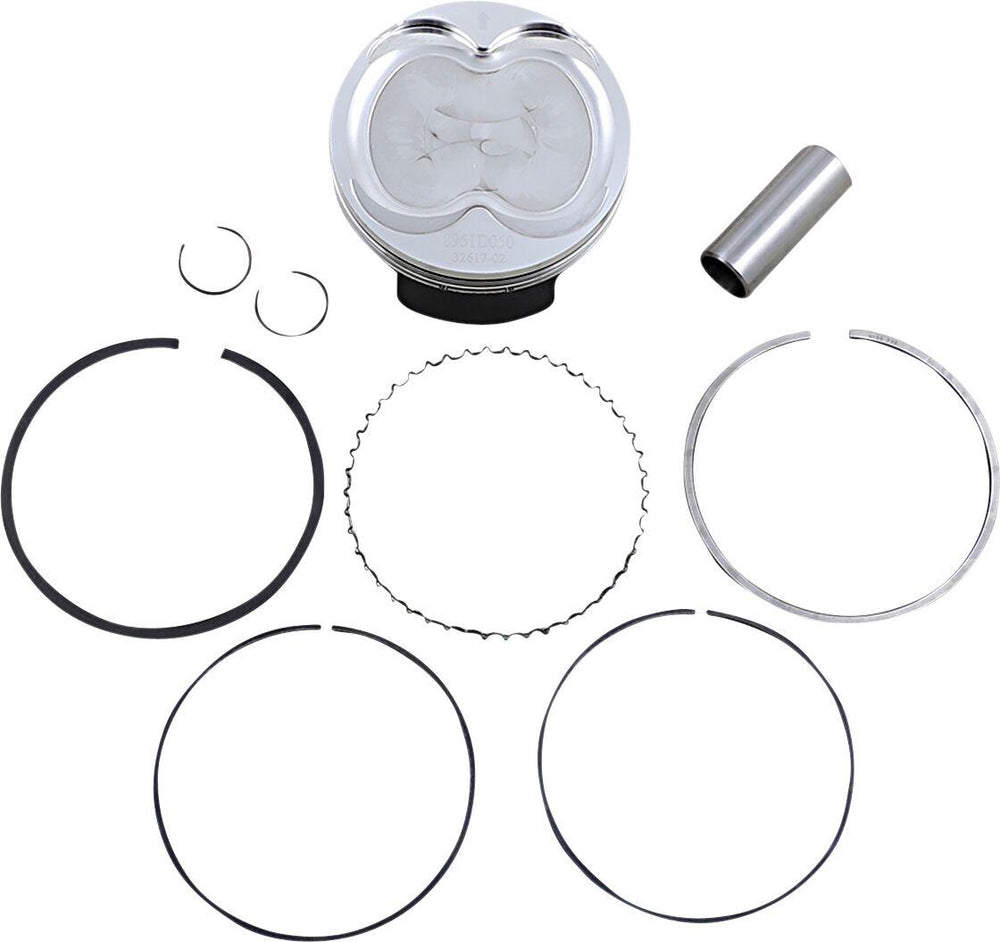

The Wossner Piston kit For Polaris ACE 570 4X4 2018-2019 +0.50 mm is part of the latest collection from Wossner.

Features:

• Enhanced piston pin oiling slots, radial boss machining, and annular grooves for improved wrist pin lubrication
• Lightweight piston with a tight piston wall clearance for a quieter running engine
• Skirt coated for reduced friction and improved break in performance
• Ring land treatment for improved ring seal and oil control
• Double bridged forging design where noted
• Kit includes piston, rings, wrist pin and pin locks
Kit Includes: • Piston #8951D050 • Ring Set #GNH99.50 • Wrist Pin #WP017-SP • Retaining Clips #CW22

Specifications:

• Bore - Oversize Metric: +0.50 mm
• Bore - Oversize: +0.50 mm
• Bore Size: 99.50 mm
• Compression Ratio Imperial: 10.3
• Compression Ratio: 10.3
• Engine Type: 4-Stroke
• Model: Standard Series
• Piston Material: Aluminum Alloy| Forged
• Piston Size Metric: 99.42 mm
• Piston Size: 99.42 mm
• Product Name: Piston Kit
• Stroke Length: 73.60 mm

To fit:

• POLARIS ACE 570 4X4 2018 EPS All Models
• POLARIS ACE 570 4X4 2019 EPS All Models
• POLARIS RANGER RZR 570 2012 All Models
• POLARIS RANGER RZR 570 2013 EPS LE All Models
• POLARIS RANGER RZR 570 2013 All Models
• POLARIS RANGER RZR 570 2014 EPS LE All Models
• POLARIS RANGER RZR 570 2014 All Models
• POLARIS RANGER RZR 570 2015 50" All Models
• POLARIS RANGER RZR 570 2015 50 All Models
• POLARIS RANGER RZR 570 2015 EPS 50" All Models
• POLARIS RANGER RZR 570 2015 EPS 50 All Models
• POLARIS RANGER RZR 570 2016 50" All Models
• POLARIS RANGER RZR 570 2016 50 All Models
• POLARIS RANGER RZR 570 2016 EPS 50" All Models
• POLARIS RANGER RZR 570 2016 EPS 50 All Models
• POLARIS RANGER RZR 570 2017 50" All Models
• POLARIS RANGER RZR 570 2017 50 All Models
• POLARIS RANGER RZR 570 2017 EPS 50" All Models
• POLARIS RANGER RZR 570 2017 EPS 50 All Models
• POLARIS RANGER RZR 570 2018 50" All Models
• POLARIS RANGER RZR 570 2018 50 All Models
• POLARIS RANGER RZR 570 2019 50" All Models
• POLARIS RANGER RZR 570 2019 50 All Models
• POLARIS RANGER RZR 570 2019 EPS 50" American Models
• POLARIS RANGER RZR 570 2019 EPS 50 All Models
• POLARIS RANGER RZR 570 2020 50" All Models
• POLARIS RANGER RZR 570 2020 50 All Models
• POLARIS RANGER RZR 570 2020 EPS Premium 50 All Models
• POLARIS RANGER RZR S 2017 EPS 60 All Models
• POLARIS SPORTSMAN 570 4X4 2014 EPS Forest European Models
• POLARIS SPORTSMAN 570 4X4 2014 EPS All Models
• POLARIS SPORTSMAN 570 4X4 2014 Forest European Models
• POLARIS SPORTSMAN 570 4X4 2014 Touring All Models
• POLARIS SPORTSMAN 570 4X4 2014 All Models
• POLARIS SPORTSMAN 570 4X4 2015 EPS Forest Tractor European Models
• POLARIS SPORTSMAN 570 4X4 2015 EPS Forest European Models
• POLARIS SPORTSMAN 570 4X4 2015 EPS Touring All Models
• POLARIS SPORTSMAN 570 4X4 2015 EPS UTE European Models
• POLARIS SPORTSMAN 570 4X4 2015 EPS All Models
• POLARIS SPORTSMAN 570 4X4 2015 Touring All Models
• POLARIS SPORTSMAN 570 4X4 2015 All Models
• POLARIS SPORTSMAN 570 4X4 2016 EPS Touring All Models
• POLARIS SPORTSMAN 570 4X4 2016 EPS UTE European Models
• POLARIS SPORTSMAN 570 4X4 2016 EPS All Models
• POLARIS SPORTSMAN 570 4X4 2016 Touring All Models
• POLARIS SPORTSMAN 570 4X4 2016 All Models
• POLARIS SPORTSMAN 570 4X4 2017 EPS All Models
• POLARIS SPORTSMAN 570 4X4 2017 All Models
• POLARIS SPORTSMAN 570 4X4 2018 EPS LE Breakout American Models
• POLARIS SPORTSMAN 570 4X4 2018 EPS Polar Pursuit American Models
• POLARIS SPORTSMAN 570 4X4 2018 EPS Touring All Models
• POLARIS SPORTSMAN 570 4X4 2018 EPS Utility Edition American Models
• POLARIS SPORTSMAN 570 4X4 2018 EPS All Models
• POLARIS SPORTSMAN 570 4X4 2018 Polar Pursuit American Models
• POLARIS SPORTSMAN 570 4X4 2018 Touring American Models
• POLARIS SPORTSMAN 570 4X4 2018 All Models
• POLARIS SPORTSMAN 570 4X4 2019 EPS Polaris Pursuit Camo American Models
• POLARIS SPORTSMAN 570 4X4 2019 EPS Touring American Models
• POLARIS SPORTSMAN 570 4X4 2019 EPS Utility Edition American Models
• POLARIS SPORTSMAN 570 4X4 2019 EPS All Models
• POLARIS SPORTSMAN 570 4X4 2019 Polaris Pursuit Camo American Models
• POLARIS SPORTSMAN 570 4X4 2019 Touring All Models
• POLARIS SPORTSMAN 570 4X4 2019 All Models
• POLARIS SPORTSMAN 570 4X4 2020 EPS Premium All Models
• POLARIS SPORTSMAN 570 4X4 2020 EPS Touring American Models
• POLARIS SPORTSMAN 570 4X4 2020 EPS All Models
• POLARIS SPORTSMAN 570 4X4 2020 Touring All Models
• POLARIS SPORTSMAN 570 4X4 2020 All Models
• POLARIS SPORTSMAN 570 6x6 2017 EPS Big Boss All Models
• POLARIS SPORTSMAN 570 6x6 2018 EPS Big Boss All Models
• POLARIS SPORTSMAN 570 6x6 2019 EPS American Models
• POLARIS SPORTSMAN 570 6x6 2020 EPS American Models
• POLARIS SPORTSMAN 570 SP 2015 EPS Touring All Models
• POLARIS SPORTSMAN 570 SP 2015 EPS All Models
• POLARIS SPORTSMAN 570 SP 2016 EPS Touring All Models
• POLARIS SPORTSMAN 570 SP 2016 EPS All Models
• POLARIS SPORTSMAN 570 SP 2017 EPS Touring All Models
• POLARIS SPORTSMAN 570 SP 2017 EPS All Models
• POLARIS SPORTSMAN 570 SP 2018 EPS Hunter Edition American Models
• POLARIS SPORTSMAN 570 SP 2018 EPS Touring All Models
• POLARIS SPORTSMAN 570 SP 2018 EPS All Models
• POLARIS SPORTSMAN 570 SP 2019 EPS Hunter Edition American Models
• POLARIS SPORTSMAN 570 SP 2019 EPS Touring All Models
• POLARIS SPORTSMAN 570 SP 2019 EPS All Models
• POLARIS SPORTSMAN 570 SP 2020 EPS Hunter Edition American Models
• POLARIS SPORTSMAN 570 X2 2015 EPS All Models
• POLARIS SPORTSMAN 570 X2 2016 EPS All Models
• POLARIS SPORTSMAN 570 X2 2017 EPS All Models
• POLARIS SPORTSMAN 570 X2 2018 EPS All Models
• POLARIS SPORTSMAN 570 X2 2019 EPS All Models
• POLARIS SPORTSMAN 570 X2 2020 EPS All Models
• POLARIS SPORTSMAN ACE 570 2016 EPS All Models
• POLARIS SPORTSMAN ACE 570 2016 All Models
• POLARIS SPORTSMAN ACE 570 2017 EPS All Models
• POLARIS SPORTSMAN ACE 570 2017 All Models

Manufacturer part number: 8951D050

View all Wossner. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Wossner Piston kit For Polaris ACE 570 4X4 2018-2019 +0.50 mm
