Product description

The Wossner Piston Kit For KTM SXF250 2016-2020 +0.01 mm is part of the latest collection from Wossner.

Features:

• Enhanced piston pin oiling slots, radial boss machining, and annular grooves for improved wrist pin lubrication
• Lightweight piston with a tight piston wall clearance for a quieter running engine
• Skirt coated for reduced friction and improved break in performance
• Ring land treatment for improved ring seal and oil control
• Double bridged forging design where noted

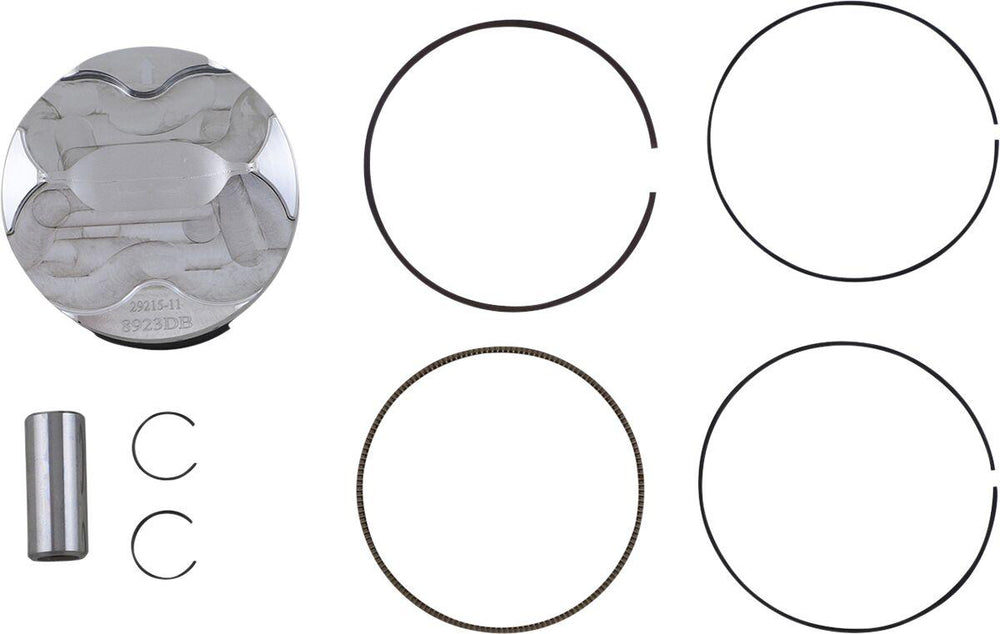

• Kit includes piston, rings, wrist pin and pin locks
Double bridge forging. Gas ported. Two ring design. Kit Includes: Piston #8923DB, Ring Set #RIK78.00, Wrist Pin #WP070-SP, Retaining Clips #CW16

Specifications:

• Bore - Oversize Metric: +0.01 mm
• Bore - Oversize: +0.01 mm
• Bore Size: 78.01 mm
• Compression Ratio Imperial: 14.4
• Compression Ratio: 14.4
• Engine Type: 4-Stroke
• Model: Premium Series
• Piston Material: Aluminum Alloy| Forged
• Piston Size Metric: 77.97 mm
• Piston Size: 77.97 mm
• Product Name: Piston Kit
• Stroke Length: 52.30 mm

To fit:

• HUSQVARNA FC 250 2017 All Models
• HUSQVARNA FC 250 2018 All Models
• HUSQVARNA FC 250 2019 All Models
• HUSQVARNA FC 250 2020 All Models
• KTM SX-F 250 2016 All Models
• KTM SX-F 250 2017 All Models
• KTM SX-F 250 2018 All Models
• KTM SX-F 250 2019 All Models
• KTM SX-F 250 2020 All Models
• HUSQVARNA FC 250 2016 All Models

Manufacturer part number: 8923DB

View all Wossner. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Wossner Piston Kit For KTM SXF250 2016-2020 +0.01 mm
