Product description

The Wossner Piston Kit For Kawasaki KDX 125SR 1990-2002 Standard Size B is part of the latest collection from Wossner.

Features:

• Pistons made are with high quality, permanent skirt coating to reduce friction and piston rock for quiet and improved performance
• Optimized machining for lightness, as well as maintained strength in key areas such as crown and skirt wall cross section
• Forged from aerospace grade aluminum alloy

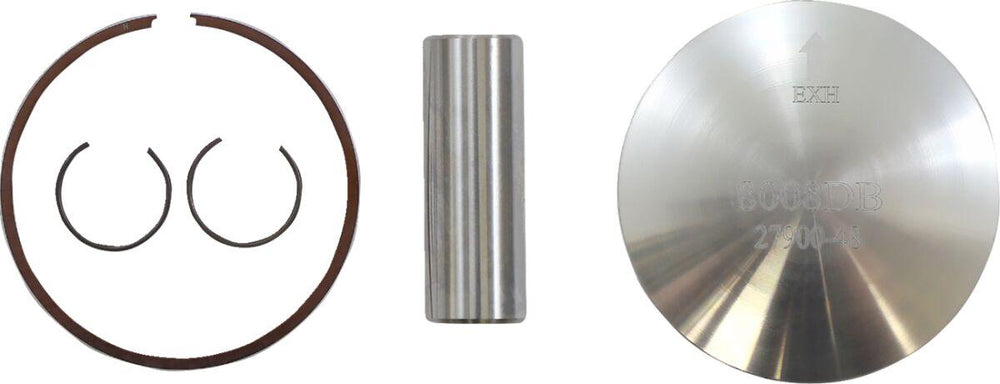

• Piston kit includes piston, rings, pin and clips
Fits '90-'05 Kawasaki KDX 125 models. Kit Includes: • Piston #800DB • Ring Set #RSB5600 • Wrist Pin #WP036 • Retaining Clips #CW16

Specifications:

• Bore - Oversize Metric: +0.01 mm
• Bore - Oversize: +0.01 mm
• Bore Size: 56.01 mm
• Displacement: 124 cc
• Engine Type: 2-Stroke
• Model: Standard Series
• Piston Material: Aluminum Alloy| Forged
• Piston Size Metric: 55.95 mm
• Piston Size: 55.95 mm
• Product Name: Piston Kit
• Stroke Length: 50.60 mm
• Style: Standard Size B

To fit:

• KAWASAKI KDX 125 SR 1990 All Models
• KAWASAKI KDX 125 SR 1991 All Models
• KAWASAKI KDX 125 SR 1992 All Models
• KAWASAKI KDX 125 SR 1993 All Models
• KAWASAKI KDX 125 SR 1994 All Models
• KAWASAKI KDX 125 SR 1995 All Models
• KAWASAKI KDX 125 SR 1996 All Models
• KAWASAKI KDX 125 SR 1997 All Models
• KAWASAKI KDX 125 SR 1998 All Models
• KAWASAKI KDX 125 SR 1999 All Models
• KAWASAKI KDX 125 SR 2000 All Models
• KAWASAKI KDX 125 SR 2001 All Models
• KAWASAKI KDX 125 SR 2002 All Models

Manufacturer part number: 8008DB

View all Wossner. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Wossner Piston Kit For Kawasaki KDX 125SR 1990-2002 Standard Size B
