Product description

The Wossner Piston Kit For Yamaha YZ85 2002-2017 Standard Size A is part of the latest collection from Wossner.

Features:

• Pistons made are with high quality, permanent skirt coating to reduce friction and piston rock for quiet and improved performance
• Optimized machining for lightness, as well as maintained strength in key areas such as crown and skirt wall cross section
• Forged from aerospace grade aluminum alloy

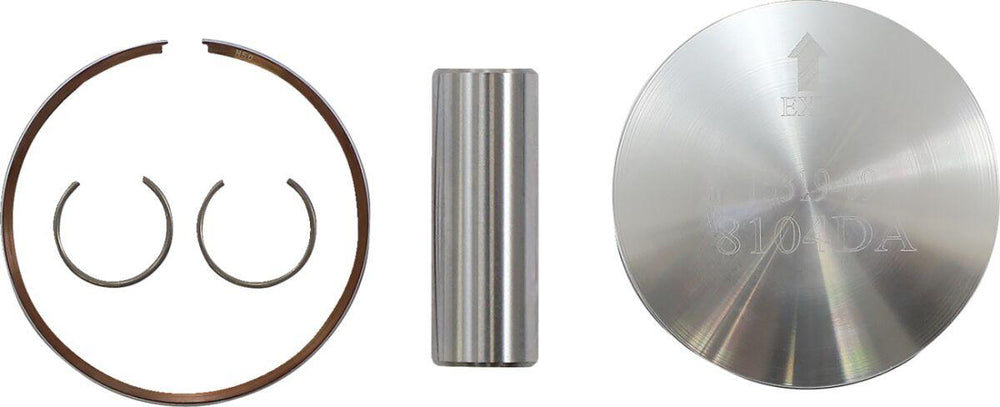

• Piston kit includes piston, rings, pin and clips
Kit Includes: • Piston #8104DA • Ring Set #RSV4750 • Wrist Pin #WP058 • Retaining Clips #CW14

Specifications:

• Bore - Oversize Metric: Standard
• Bore - Oversize: Standard
• Bore Size: 47.50 mm
• Displacement: 84 cc
• Engine Type: 2-Stroke
• Model: Standard Series
• Piston Material: Aluminum Alloy| Forged
• Piston Size Metric: 47.45 mm
• Piston Size: 47.45 mm
• Product Name: Piston Kit
• Stroke Length: 47.80 mm
• Style: Standard Size A

To fit:

• YAMAHA YZ 85 LW 2002 All Models
• YAMAHA YZ 85 LW 2003 All Models
• YAMAHA YZ 85 LW 2004 All Models
• YAMAHA YZ 85 LW 2005 All Models
• YAMAHA YZ 85 LW 2006 All Models
• YAMAHA YZ 85 LW 2007 All Models
• YAMAHA YZ 85 LW 2008 All Models
• YAMAHA YZ 85 LW 2009 All Models
• YAMAHA YZ 85 LW 2010 All Models
• YAMAHA YZ 85 LW 2011 All Models
• YAMAHA YZ 85 LW 2012 All Models
• YAMAHA YZ 85 LW 2013 All Models
• YAMAHA YZ 85 LW 2014 All Models
• YAMAHA YZ 85 LW 2015 All Models
• YAMAHA YZ 85 LW 2016 All Models
• YAMAHA YZ 85 LW 2017 All Models
• YAMAHA YZ 85 SW 2002 All Models
• YAMAHA YZ 85 SW 2003 All Models
• YAMAHA YZ 85 SW 2004 All Models
• YAMAHA YZ 85 SW 2005 All Models
• YAMAHA YZ 85 SW 2006 All Models
• YAMAHA YZ 85 SW 2007 All Models
• YAMAHA YZ 85 SW 2008 All Models
• YAMAHA YZ 85 SW 2009 All Models
• YAMAHA YZ 85 SW 2010 All Models
• YAMAHA YZ 85 SW 2011 All Models
• YAMAHA YZ 85 SW 2012 All Models
• YAMAHA YZ 85 SW 2013 All Models
• YAMAHA YZ 85 SW 2014 All Models
• YAMAHA YZ 85 SW 2015 All Models
• YAMAHA YZ 85 SW 2016 All Models
• YAMAHA YZ 85 SW 2017 All Models
• YAMAHA YZ 85 SW 2018 All Models

Manufacturer part number: 8104DA

View all Wossner. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Wossner Piston Kit For Yamaha YZ85 2002-2017 Standard Size A
