Product description

The Wossner Piston kit For Kawasaki KXF250 2006-2009 76.96 mm is part of the latest collection from Wossner.

Features:

• Enhanced piston pin oiling slots, radial boss machining, and annular grooves for improved wrist pin lubrication
• Lightweight piston with a tight piston wall clearance for a quieter running engine
• Skirt coated for reduced friction and improved break in performance
• Ring land treatment for improved ring seal and oil control
• Double bridged forging design where noted

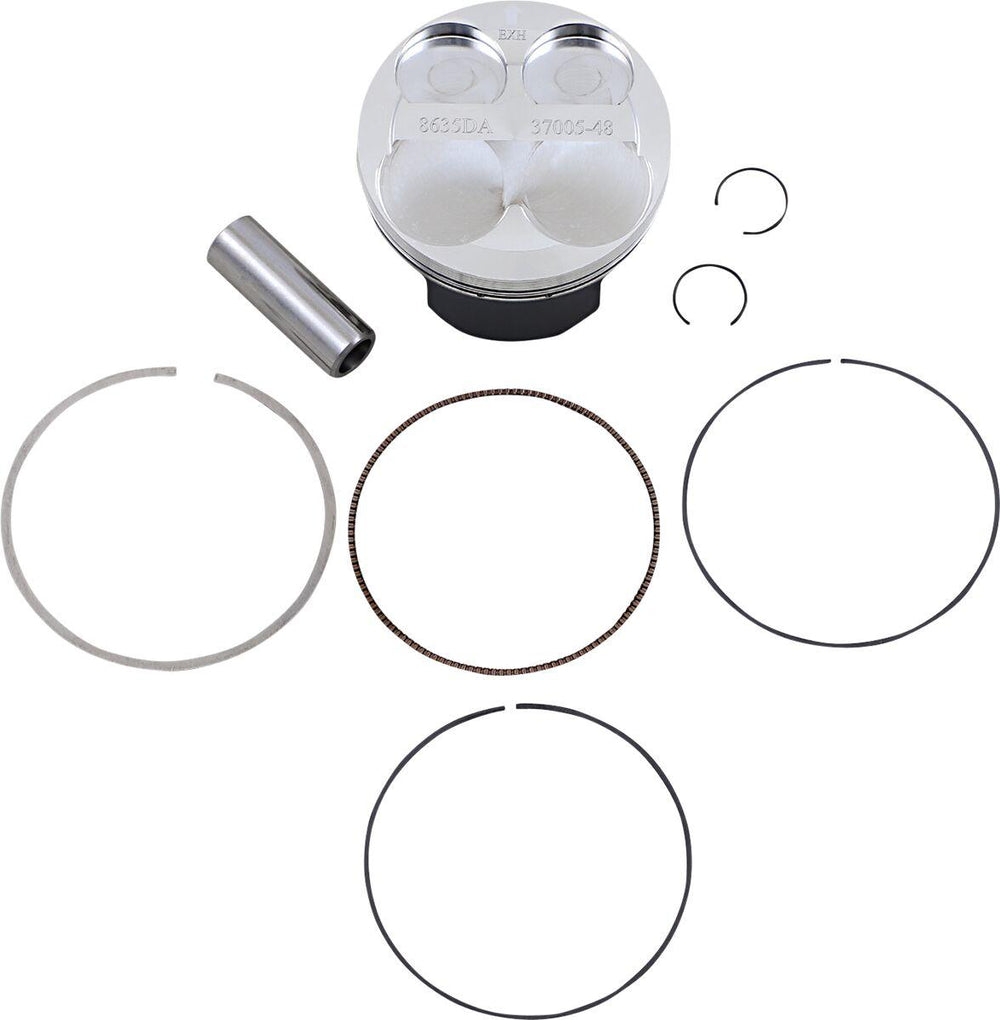

• Kit includes piston, rings, wrist pin and pin locks
Two ring design. Kit Includes: • Piston #8635DA • Ring Set #RIK77.00D • Wrist Pin #WP059-SP • Retaining Clips #CW16

Specifications:

• Bore - Oversize Metric: Standard
• Bore - Oversize: Standard
• Bore Size: 77.00 mm
• Compression Ratio Imperial: 13.5
• Compression Ratio: 13.5
• Engine Type: 4-Stroke
• Model: Pro Series
• Piston Material: Aluminum Alloy| Forged
• Piston Size Metric: 76.96 mm
• Piston Size: 76.96 mm
• Product Name: Piston Kit
• Stroke Length: 53.60 mm

To fit:

• KAWASAKI KX 250 F 2006 All Models
• KAWASAKI KX 250 F 2007 All Models
• KAWASAKI KX 250 F 2008 All Models
• KAWASAKI KX 250 F 2009 All Models

Manufacturer part number: 8635DA

View all Wossner. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Wossner Piston kit For Kawasaki KXF250 2006-2009 76.96 mm
