Product description

The Wossner Piston kit For KTM EXC250 Racing 2006 Standard Size B is part of the latest collection from Wossner.

Features:

• Enhanced piston pin oiling slots, radial boss machining, and annular grooves for improved wrist pin lubrication
• Lightweight piston with a tight piston wall clearance for a quieter running engine
• Skirt coated for reduced friction and improved break in performance
• Ring land treatment for improved ring seal and oil control
• Double bridged forging design where noted

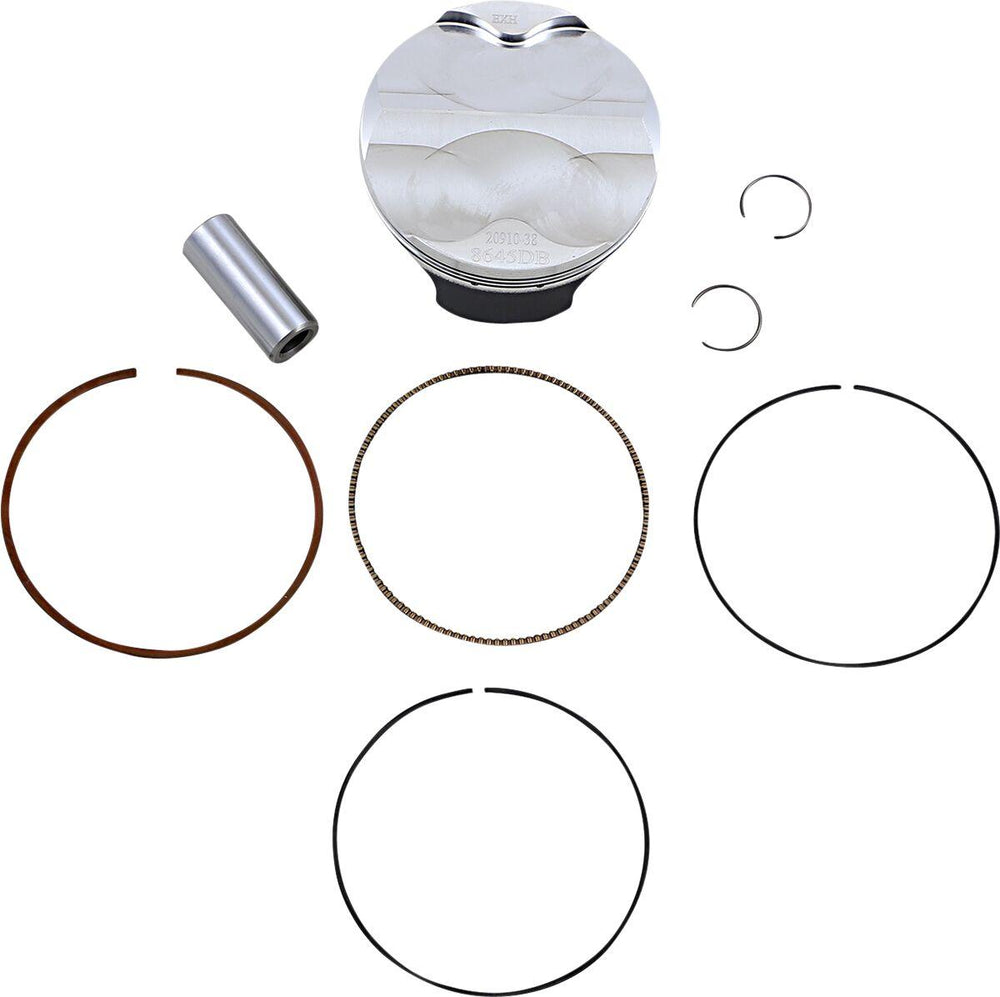

• Kit includes piston, rings, wrist pin and pin locks
Double bridge forging. Two ring design. Kit Includes: • Piston #8645DB • Ring Set #TPR76.00/2 • Wrist Pin #WP070-SP • Retaining Clips #CW16

Specifications:

• Bore - Oversize Metric: +0.01 mm
• Bore - Oversize: +0.01 mm
• Bore Size: 76.01 mm
• Compression Ratio Imperial: 12.9
• Compression Ratio: 12.9
• Engine Type: 4-Stroke
• Model: Premium Series
• Piston Material: Aluminum Alloy| Forged
• Piston Size Metric: 75.97 mm
• Piston Size: 75.97 mm
• Product Name: Piston Kit
• Stroke Length: 54.80 mm

To fit:

• KTM EXC 250 RACING 2006 European Models
• KTM SX-F 250 2006 All Models
• KTM SX-F 250 2007 All Models
• KTM SX-F 250 2008 All Models
• KTM SX-F 250 2009 All Models
• KTM SX-F 250 2010 All Models
• KTM SX-F 250 2011 All Models
• KTM SX-F 250 2012 All Models

Manufacturer part number: 8645DB

View all Wossner. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Wossner Piston kit For KTM EXC250 Racing 2006 Standard Size B
