Product description

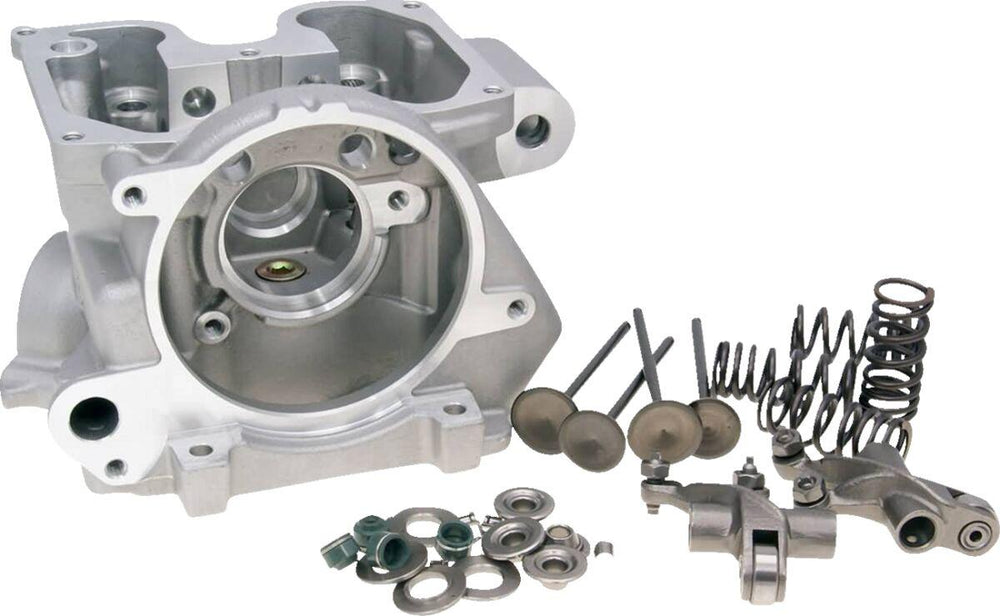

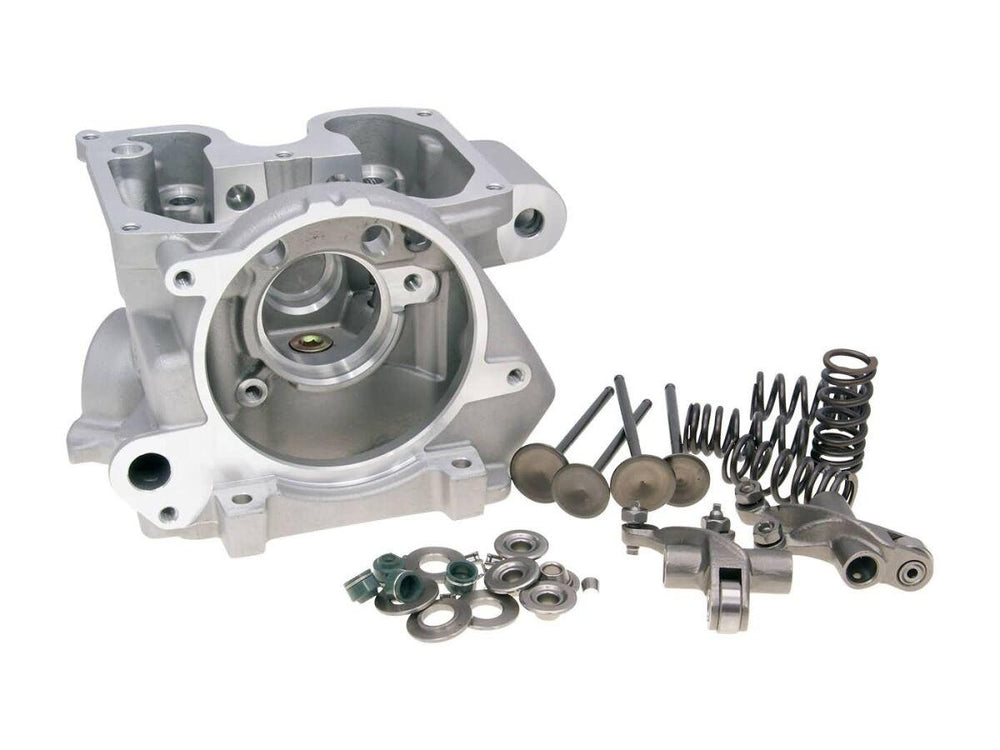

The Naraku Cylinder Head 21/23 For Fantic 125 E 2016-2017 is part of the latest collection from Naraku.

Features:

• Naraku Racing 4-valve cylinder head with 62mm combustion chamber to satiate your appetite for power
• Increased flow, reinforced valve springs and larger valves (21 / 23mm)
• Suitable for Yamaha X-Max, WR, YZF-R 125 and other 125 mopeds with YI-3 engine
• The carburetor or fuel injection system must be re-tuned (z. B. with Malossi Force Master)
• The cylinder head is suitable for following big bore cylinders: Naraku NK600.74, Polini 166.0101, Malossi M.3114852 and other cylinders with 62-64mm bore
• Combustion chamber: 62mm
• Intake valves: 23mm exhaust valves: 21mm
• New models have the lambda sensor connection directly on the outlet (this must be closed on older models)
• Scope of delivery without shafts for roller cam followers

Specifications:

• Color/Finish: Silver
• Engine Type: 4-Stroke
• Product Name: Cylinder Head Kit
• Units: Kit

To fit:

• BETA RR 125 LC 2011 Motard European Models
• BETA RR 125 LC 2011 All Models
• BETA RR 125 LC 2012 Motard European Models
• BETA RR 125 LC 2012 All Models
• BETA RR 125 LC 2013 Motard European Models
• BETA RR 125 LC 2013 All Models
• BETA RR 125 LC 2014 Motard European Models
• BETA RR 125 LC 2014 All Models
• BETA RR 125 LC 2015 Motard European Models
• BETA RR 125 LC 2015 All Models
• BETA RR 125 LC 2016 Motard European Models
• BETA RR 125 LC 2016 All Models
• BETA RR 125 LC 2017 Motard European Models
• BETA RR 125 LC 2017 All Models
• BETA RR 125 LC 2018 Motard European Models
• BETA RR 125 LC 2018 All Models
• BETA RR 125 LC 2019 Motard European Models
• BETA RR 125 LC 2019 All Models
• BETA RR 125 LC 2020 Motard European Models
• BETA RR 125 LC 2020 All Models
• BETA RR 125 LC 2021 Motard European Models
• BETA RR 125 LC 2021 All Models
• BETA RR 125 LC 2022 Motard All Models
• BETA RR 125 LC 2022 All Models
• BETA RR 125 LC 2023 Motard All Models
• BETA RR 125 LC 2023 All Models
• FANTIC 125 ER 2016 Competizione European Models
• FANTIC 125 ER 2017 Competizione European Models
• FANTIC 125 E ABS 2018 Casa European Models
• FANTIC 125 E CBS 2019 Casa European Models
• FANTIC 125 E CBS 2019 Performance European Models
• FANTIC 125 E CBS 2020 Competition European Models
• FANTIC 125 E CBS 2020 Performance European Models
• FANTIC 125 E 2016 Casa European Models
• FANTIC 125 E 2016 Performance European Models
• FANTIC 125 E 2017 Casa European Models
• FANTIC 125 E 2017 Performance European Models
• FANTIC 125 MR 2016 Competizione European Models
• FANTIC 125 MR 2017 Competizione European Models
• FANTIC 125 M ABS 2018 Casa European Models
• FANTIC 125 M ABS 2019 Casa European Models
• FANTIC 125 M ABS 2019 Performance European Models
• FANTIC 125 M ABS 2020 Competition European Models
• FANTIC 125 M ABS 2020 Performance European Models
• FANTIC 125 M 2016 Casa European Models
• FANTIC 125 M 2016 Performance European Models
• FANTIC 125 M 2017 Casa European Models
• FANTIC 125 M 2017 Performance European Models
• FANTIC XEF 125 2021 Competition European Models
• FANTIC XEF 125 2021 Performance European Models
• FANTIC XEF 125 2022 Competition European Models
• FANTIC XEF 125 2022 Performance European Models
• FANTIC XEF 125 2023 Competition European Models
• FANTIC XEF 125 2023 Performance European Models
• FANTIC XEF 125 2024 Competition European Models
• FANTIC XEF 125 2024 Performance European Models
• FANTIC XMF 125 2021 Competition European Models
• FANTIC XMF 125 2021 Performance European Models
• FANTIC XMF 125 2022 Competition European Models
• FANTIC XMF 125 2022 Performance European Models
• FANTIC XMF 125 2023 Competition European Models
• FANTIC XMF 125 2023 Performance European Models
• FANTIC XMF 125 2024 Competition European Models
• FANTIC XMF 125 2024 Performance European Models
• HM MOTO CRE-F 125 4T 2012 Baja European Models
• HM MOTO CRE-F 125 RR 2012 Baja European Models
• HUSQVARNA SMS 4 125 2011 (SMR) European Models
• HUSQVARNA SMS 4 125 2012 (SMR) European Models
• HUSQVARNA TE 125 2011 All Models
• HUSQVARNA TE 125 2012 All Models
• HYOSUNG XRX 125 LC 2014 Enduro European Models
• HYOSUNG XRX 125 LC 2014 Supermoto European Models
• MBK CITYLINER 125 2009 European Models
• MBK CITYLINER 125 2010 European Models
• MBK CITYLINER 125 2011 European Models
• MBK CITYLINER 125 2012 European Models
• MBK CITYLINER 125 2013 European Models
• MBK SKYCRUISER 125 ABS 2011 European Models
• MBK SKYCRUISER 125 ABS 2012 European Models
• MBK SKYCRUISER 125 2006 European Models
• MBK SKYCRUISER 125 2007 European Models
• MBK SKYCRUISER 125 2008 European Models
• MBK SKYCRUISER 125 2009 European Models
• MBK SKYCRUISER 125 2010 European Models
• MBK SKYCRUISER 125 2011 European Models
• MBK SKYCRUISER 125 2012 European Models
• MH KN1 125 LC 2010 European Models
• MH KN1 125 LC 2011 European Models
• MH KN1 125 LC 2012 European Models
• MH KN1 125 LC 2013 European Models
• MH RANGER 125 LC 2016 European Models
• MH RANGER 125 LC 2017 European Models
• MH RANGER 125 LC 2018 European Models
• MH RX 125 R 2010 European Models
• MH RX 125 R 2011 European Models
• MH RX 125 R 2012 European Models
• MH RX 125 R 2013 European Models
• RIEJU MARATHON 125 CROSS 2010 European Models
• RIEJU MARATHON 125 CROSS 2011 European Models
• RIEJU MARATHON 125 CROSS 2012 European Models
• RIEJU MARATHON 125 CROSS 2013 European Models
• RIEJU MARATHON 125 CROSS 2014 European Models
• RIEJU MARATHON 125 CROSS 2015 European Models
• RIEJU MARATHON 125 CROSS 2016 European Models
• RIEJU MARATHON 125 CROSS 2017 European Models
• RIEJU MARATHON 125 SM 2010 European Models
• RIEJU MARATHON 125 SM 2011 European Models
• RIEJU MARATHON 125 SM 2012 European Models
• RIEJU MARATHON 125 SM 2013 European Models
• RIEJU MARATHON 125 SM 2014 European Models
• RIEJU MARATHON 125 SM 2015 European Models
• RIEJU MARATHON 125 SM 2016 European Models
• RIEJU MARATHON 125 SM 2017 European Models
• RIEJU RS3 125 2011 European Models
• RIEJU RS3 125 2012 European Models
• RIEJU RS3 125 2013 European Models
• RIEJU RS3 125 2014 NKD European Models
• RIEJU RS3 125 2014 European Models
• RIEJU RS3 125 2015 NKD European Models
• RIEJU RS3 125 2015 European Models
• RIEJU RS3 125 2016 NKD European Models
• RIEJU RS3 125 2016 European Models
• RIEJU RS3 125 2017 NKD European Models
• RIEJU RS3 125 2017 European Models
• YAMAHA MT-125 ABS 2014 European Models
• YAMAHA MT-125 ABS 2015 European Models
• YAMAHA MT-125 ABS 2016 European Models
• YAMAHA MT-125 2014 European Models
• YAMAHA MT-125 2015 European Models
• YAMAHA MT-125 2016 European Models
• YAMAHA VP 125 2008 X-City European Models
• YAMAHA VP 125 2009 X-City European Models
• YAMAHA VP 125 2010 X-City European Models
• YAMAHA VP 125 2011 X-City European Models
• YAMAHA VP 125 2012 X-City European Models
• YAMAHA WR 125 R 2009 European Models
• YAMAHA WR 125 R 2010 European Models
• YAMAHA WR 125 R 2011 European Models
• YAMAHA WR 125 R 2012 European Models
• YAMAHA WR 125 R 2013 European Models
• YAMAHA WR 125 R 2014 European Models
• YAMAHA WR 125 R 2015 European Models
• YAMAHA WR 125 R 2016 European Models
• YAMAHA WR 125 X 2009 European Models
• YAMAHA WR 125 X 2010 European Models
• YAMAHA WR 125 X 2011 European Models
• YAMAHA WR 125 X 2012 European Models
• YAMAHA WR 125 X 2013 European Models
• YAMAHA WR 125 X 2014 European Models
• YAMAHA WR 125 X 2015 European Models
• YAMAHA WR 125 X 2016 European Models
• YAMAHA YP 125 R 2006 X-Max European Models
• YAMAHA YP 125 R 2007 X-Max European Models
• YAMAHA YP 125 R 2008 X-Max European Models
• YAMAHA YP 125 R 2009 X-Max European Models
• YAMAHA YP 125 R 2010 X-Max European Models
• YAMAHA YP 125 R 2011 X-Max Business European Models
• YAMAHA YP 125 R 2011 X-Max Sport European Models
• YAMAHA YP 125 R 2011 X-Max European Models
• YAMAHA YP 125 R 2012 X-Max Business European Models
• YAMAHA YP 125 R 2012 X-Max Sport European Models
• YAMAHA YP 125 R 2012 X-Max European Models
• YAMAHA YP 125 R 2013 X-Max Business European Models
• YAMAHA YP 125 R 2013 X-Max Momodesign European Models
• YAMAHA YP 125 R 2013 X-Max Sport European Models
• YAMAHA YP 125 R 2013 X-Max European Models
• YAMAHA YP 125 R 2014 X-Max European Models
• YAMAHA YP 125 R 2015 X-Max European Models
• YAMAHA YP 125 R 2016 X-Max Iron Max European Models
• YAMAHA YP 125 R 2016 X-Max European Models
• YAMAHA YZF-R 125 ABS 2014 European Models
• YAMAHA YZF-R 125 ABS 2015 European Models
• YAMAHA YZF-R 125 ABS 2016 European Models
• YAMAHA YZF-R 125 2008 European Models
• YAMAHA YZF-R 125 2009 European Models
• YAMAHA YZF-R 125 2010 European Models
• YAMAHA YZF-R 125 2011 European Models
• YAMAHA YZF-R 125 2012 50th Anniversary European Models
• YAMAHA YZF-R 125 2012 European Models
• YAMAHA YZF-R 125 2013 European Models
• YAMAHA YZF-R 125 2014 European Models
• YAMAHA YZF-R 125 2015 European Models
• YAMAHA YZF-R 125 2016 European Models

Manufacturer part number: NK600.75

View all Naraku. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Naraku Cylinder Head 21/23 For Fantic 125 E 2016-2017
