Product description

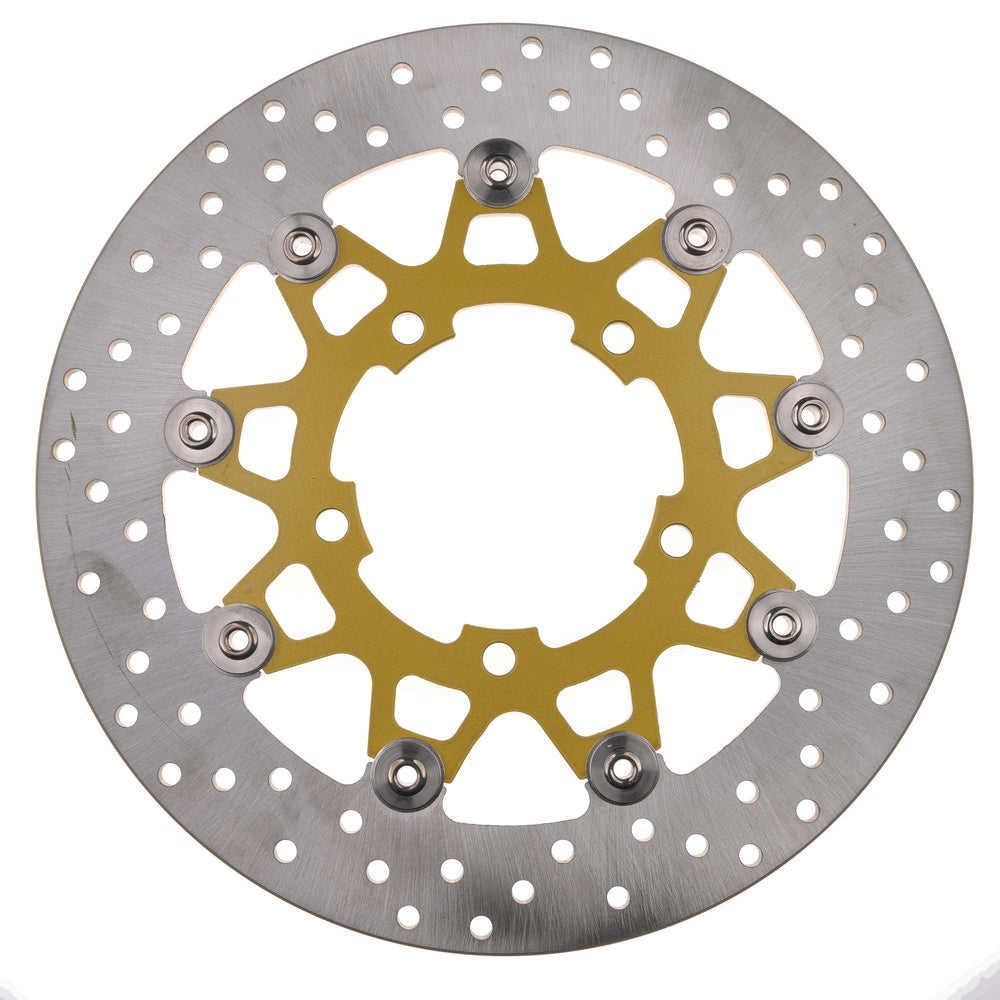

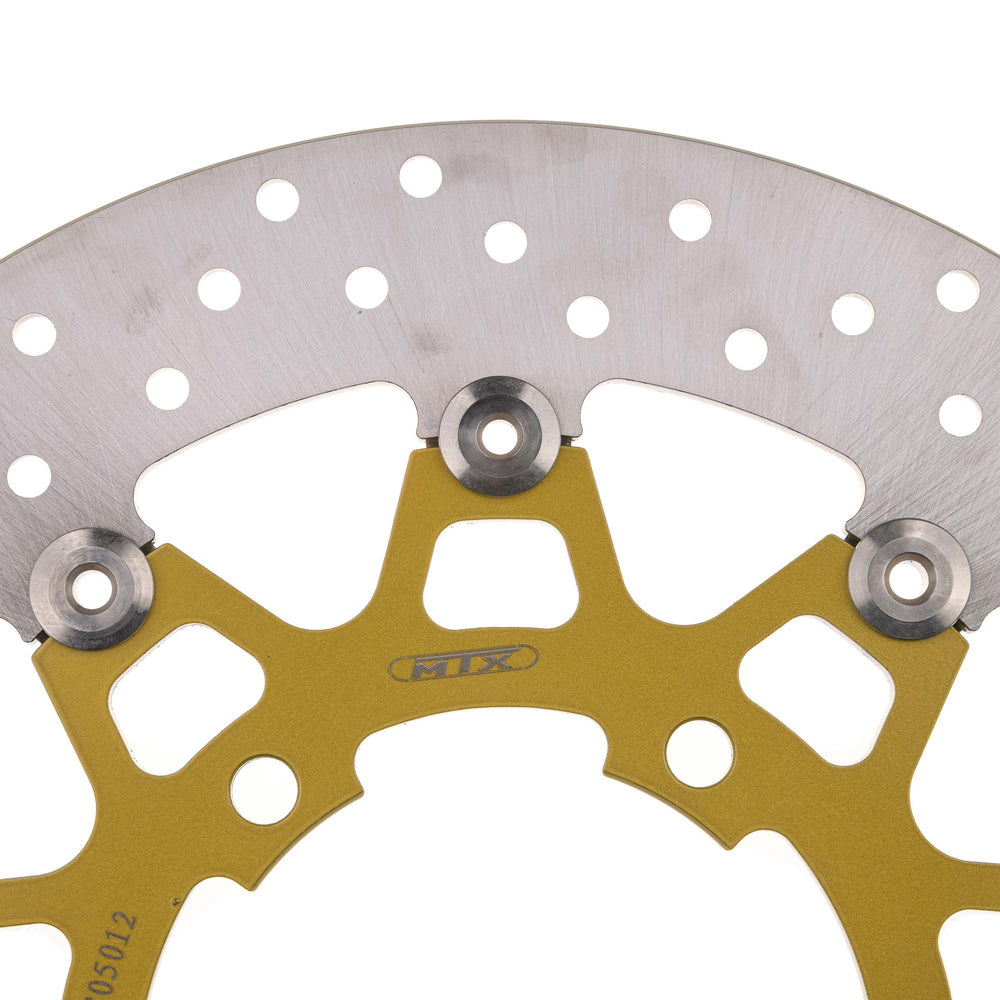

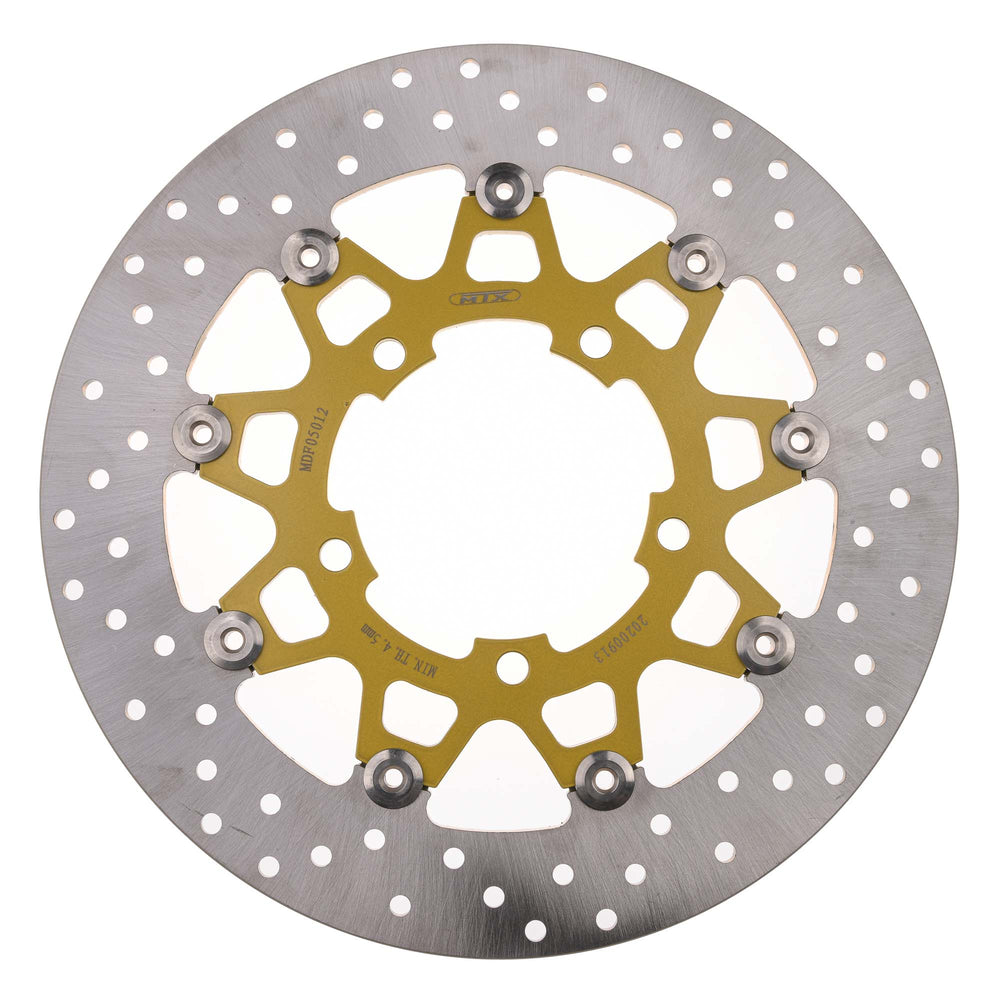

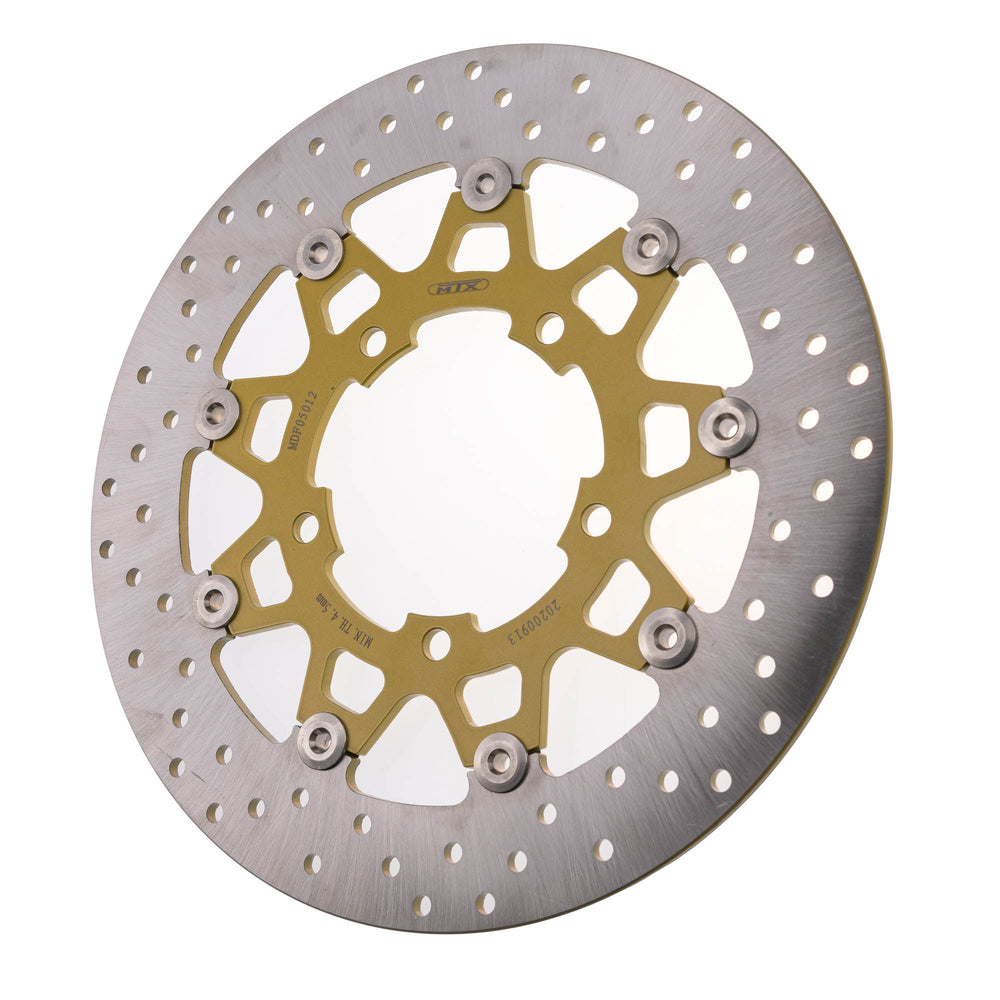

The MTX Performance Front Floating Round Brake Disc - Suzuki GSX-R600 2006-08 is part of the latest performance brake disc range from MTX.
Drawing from its immense racing experience, MTX has refined the performance and tolerances now offering applications for almost every motorcycle brand and model on the market. Performance at your fingertips.
Floating disc features:
- Made from two segments of stainless steel which are rivetted together with bobbins to allow the braking surface of the disc to expand under the extreme temperatures of braking.
- Manufactured from Japanese SUS 420 stainless steel, then heat treated to HRC 36+-2 standards while the discs centres are manufactured from steel or alloy.
- Floating discs improve braking performance by ensuring the disc is always in perfect alignment with your pads for the perfect contact throughout all operating temperatures.
- Lightening and drill holes are then applied to further improve braking performance and reduce the disc temperature.
- Precision CNC machined and laser cut technology
- Japanese SUS 420 Stainless Steel
- Replacement for Original Equipment
- OEM Design; lightening & drill hole patterns
Technical spec.:
- Outer Diameter (mm): 310
- Inner Diameter (mm): 100
- Bolt Hole Circumference (mm): 120
- Bolt Hole Quantity: 5
- Bolt Hole Size (mm): 10.2
- Thickness (mm): 5
- Minimum Thickness (mm): 4.5
- Bolt Hole Type: Straight
Manufacturer Part Code Cross Reference:
Manufacturer part number: MDF05012
View all MTX. View all Brake parts.
Contents
Your package will include the following:
- 1 X MTX Performance Front Floating Round Brake Disc - Suzuki GSX-R600 2006-08
- Suzuki GSX-R 600 (K6) (FROM NOV 05) 2005
- Suzuki GSX-R 1000 (K6) (FROM NOV 05) 2005
- Suzuki GSX-R 1000 (K5) (FROM MAR 05 TO OCT 05) 2005
- Suzuki VZR1800 Intruder (M1800R) (K7) (FROM OCT 06) 2006
- Suzuki VZR1800 Intruder (M1800R) (K6) (TO SEP 06) 2006
- Suzuki GSX-R 750 (K7) (FROM SEP 06) 2006
- Suzuki GSX-R 750 (K6) (FROM MAR 06 TO SEP 06) 2006
- Suzuki GSX-R 600 (K7) (FROM AUG 06) 2006
- Suzuki GSX-R 600 (K6) (TO JUL 06) 2006
- Suzuki GSX-R 1000 (K6) 2006
- Suzuki VZR1800 Intruder (M1800R) (K8) (FROM NOV 07) 2007
- Suzuki VZR1800 Intruder (M1800R) (K7) (TO OCT 07) 2007
- Suzuki GSX-R 750 (K7) 2007
- Suzuki GSX-R 600 (K7) 2007
- Suzuki GSX-R 1000 (K7) (FROM FEB 07) 2007
- Suzuki GSX-R 1000 (K6) (TO JAN 07) 2007
- Suzuki VZR1800 Intruder (M1800R) (K8) 2008
- Suzuki GSX-R 750 (K7) (TO FEB 08) 2008
- Suzuki GSX-R 600 (K7) (TO FEB 08) 2008
- Suzuki GSX-R 1000 MotoGP Replica (K8) 2008
- Suzuki GSX-R 1000 (K8) (FROM FEB 08) 2008
- Suzuki GSX-R 1000 (K7) (TO JAN 08) 2008
- Suzuki VZR1800 Intruder (M1800R) (K9) (FROM SEP 09) 2009
- Suzuki VZR1800 Intruder (M1800R) (K8) (TO SEP 09) 2009
- Suzuki GSX-R 1000 (K8) (TO JAN 09) 2009
- Suzuki VZR1800 Intruder (M1800R) (K9) (TO MAY 10) 2010
- Suzuki VZR1800 Intruder (M1800R) 2011
- Suzuki VZR1800 Intruder (M1800R) 2012
- Suzuki VZR1800 Intruder (M1800R) 2013
- Suzuki VZR1800 Intruder (M1800R) 2014
- Suzuki VZR1800 Intruder (M1800R) (L5) (FROM OCT 15) 2015
