Product description

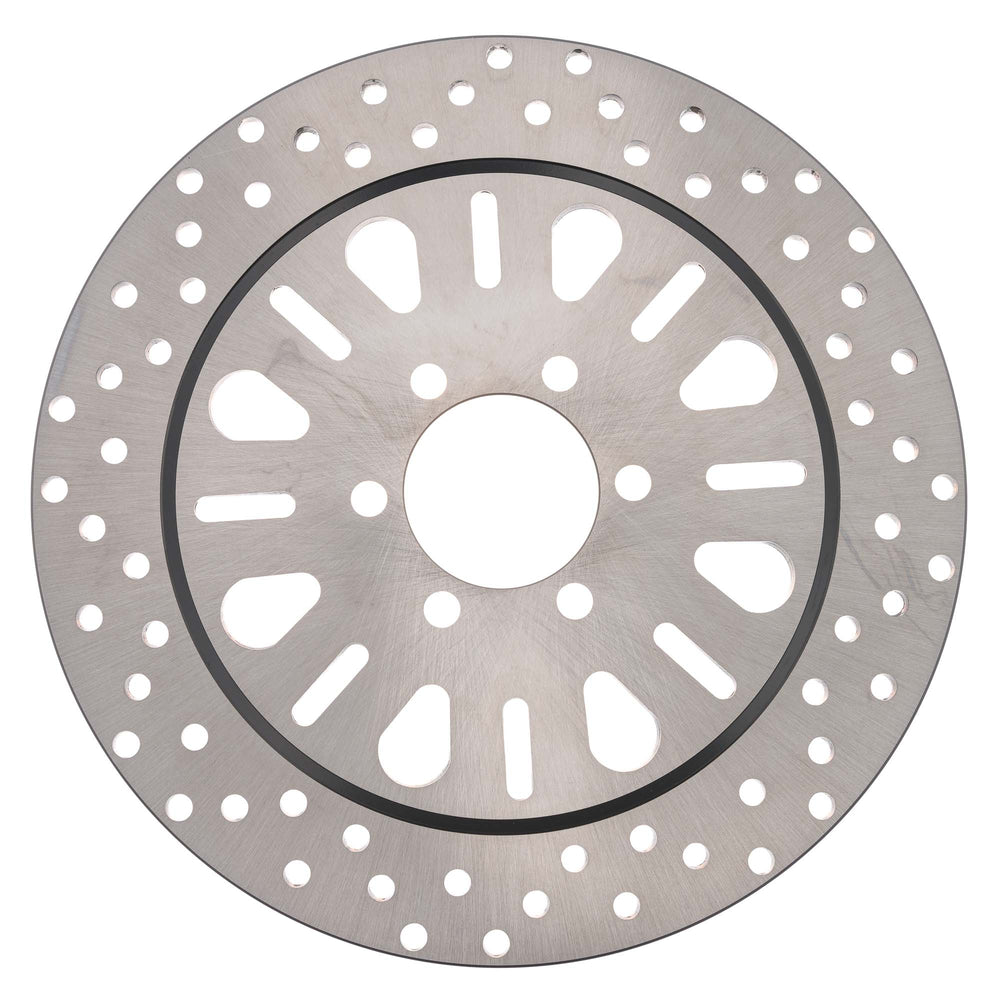

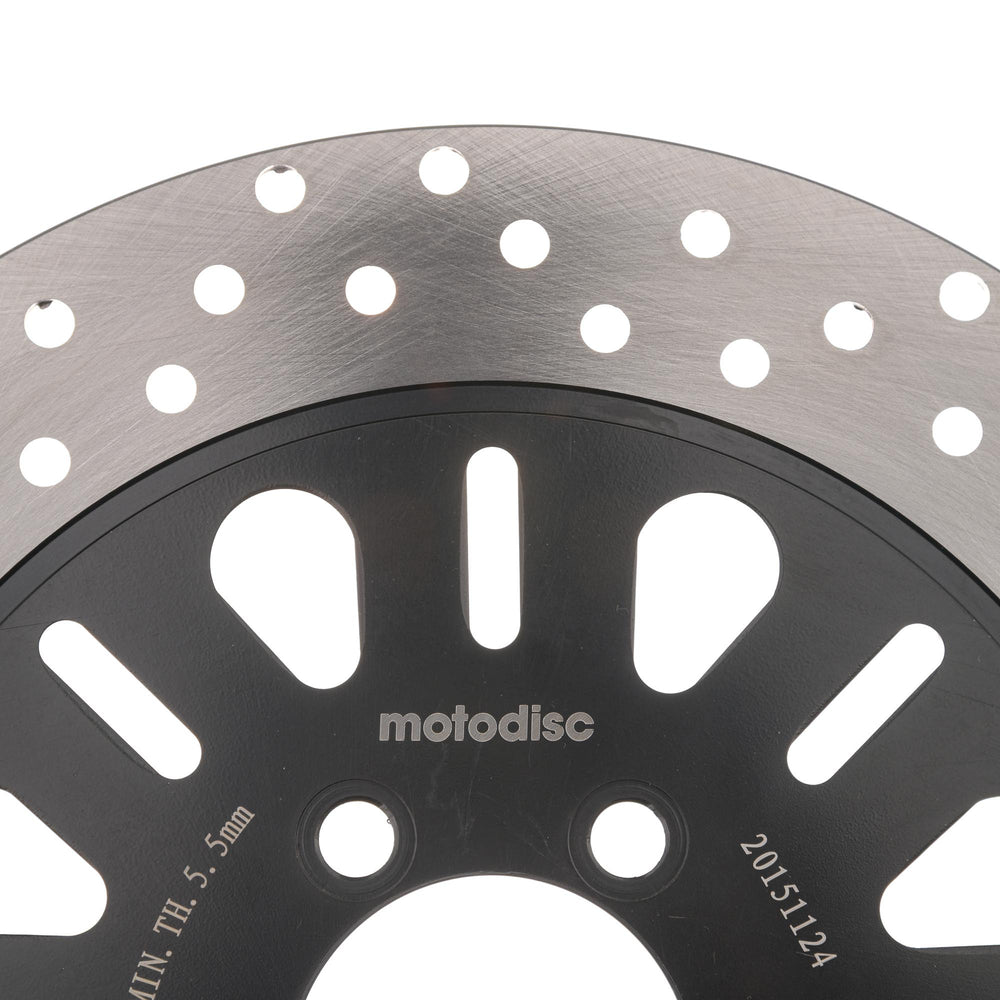

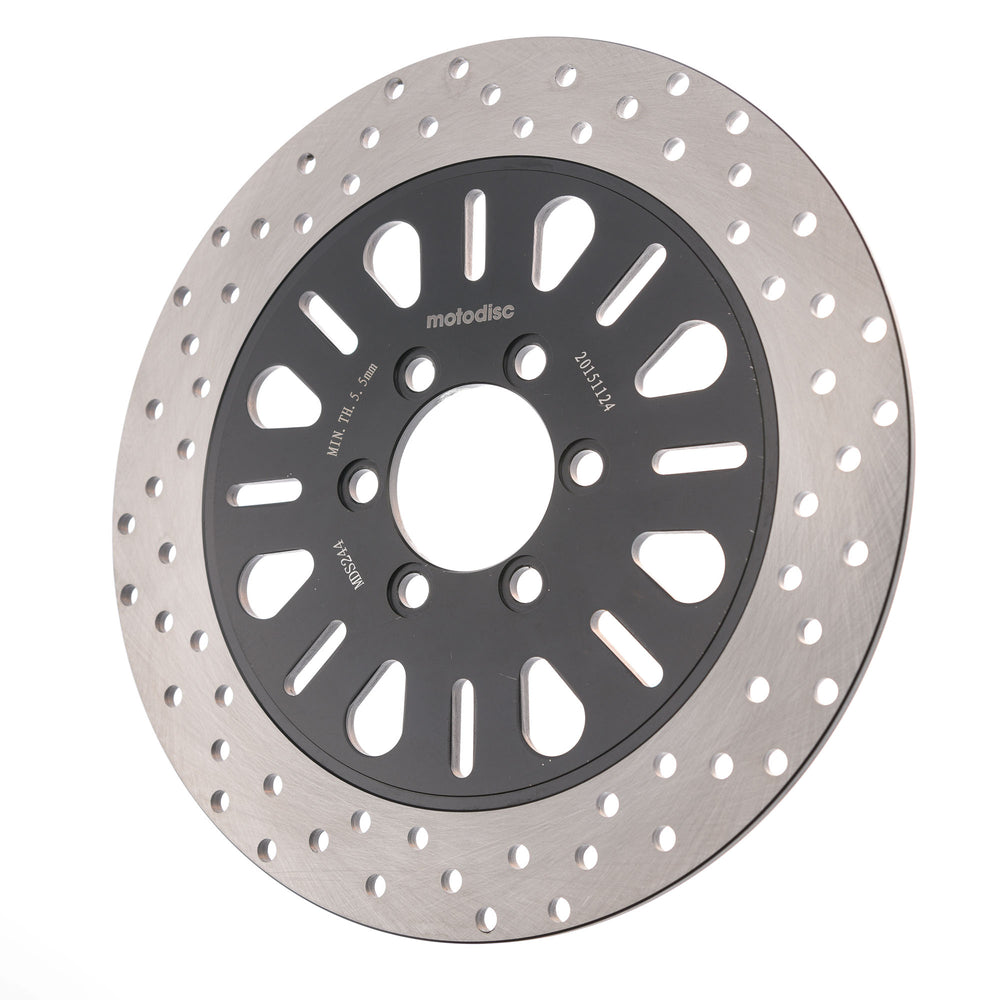

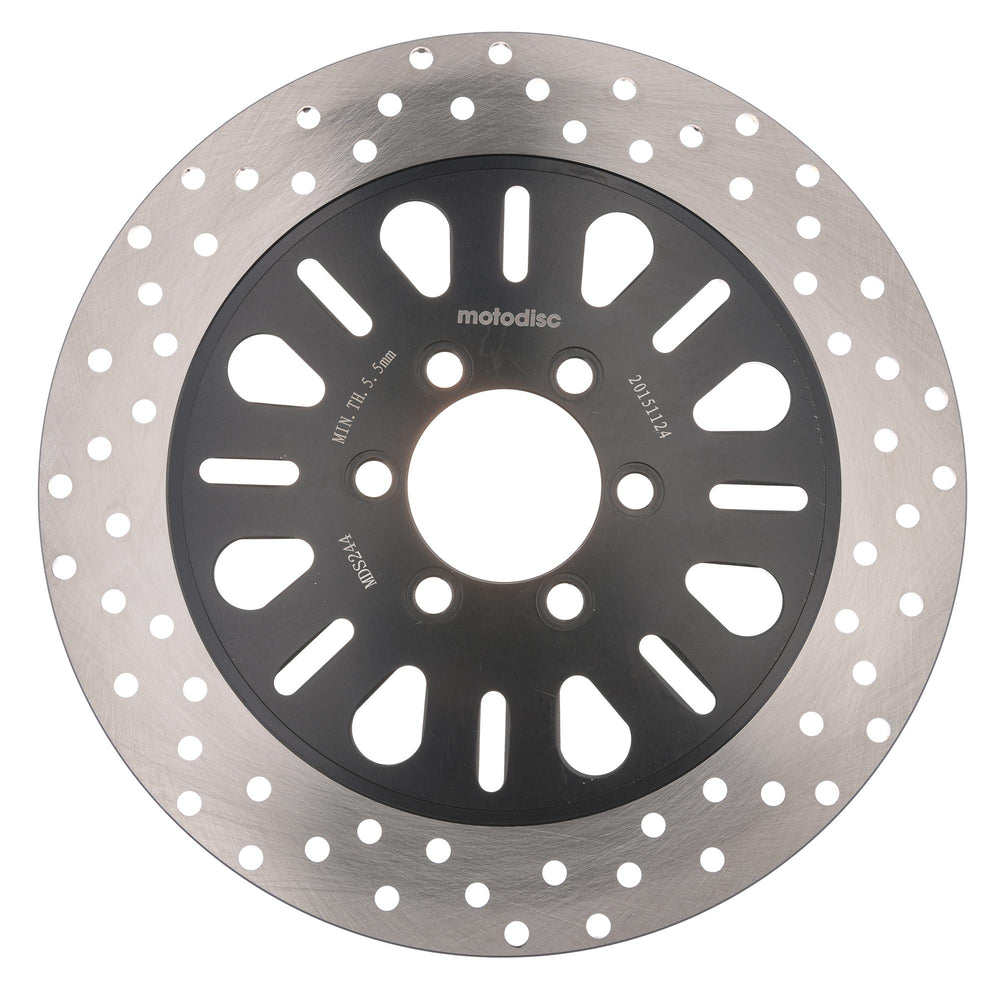

The MTX Performance Rear Solid Round Brake Disc - Suzuki VS1400 GL Intruder 1987-2003 is part of the latest performance brake disc range from MTX.
Drawing from its immense racing experience, MTX has refined the performance and tolerances now offering applications for almost every motorcycle brand and model on the market.
Performance at your fingertips!
Solid disc features:
- Constructed using one complete segment of Japanese SUS 420 stainless steel, then heat-treated to HRC 36+-2 standards.
- Lightening and drill hole patterns are applied as per OEM specifications to improve braking performance and reduce the discs temperature during use.
- Precision CNC machined and laser cut technology
- Japanese SUS 420 Stainless Steel
- Replacement for Original Equipment
- OEM Design; lightening & drill hole patterns
Technical spec.:
- Outer Diameter (mm): 275
- Inner Diameter (mm): 57
- Bolt Hole Circumference (mm): 78
- Bolt Hole Quantity: 6
- Bolt Hole Size (mm): 10.5
- Thickness (mm): 6
- Minimum Thickness (mm): 5.5
- Bolt Hole Type: Counterbored
Manufacturer Part Code Cross Reference:
Manufacturer part number: MDS05032
View all MTX. View all Brake parts.
Contents
Your package will include the following:
- 1 X MTX Performance Rear Solid Round Brake Disc - Suzuki VS1400 GL Intruder 1987-2003
- Suzuki VS 1400 GL Intruder (PH) 1987
- Suzuki VS 1400 GL Intruder (PJ) (FROM SEP 88) 1988
- Suzuki VS 1400 GL Intruder (PH) 1988
- Suzuki VS 1400 GL Intruder (PJ) 1989
- Suzuki VS 1400 GL Intruder (PH) (TO SEP 89) 1989
- Suzuki VS 1400 GL Intruder (PJ) 1990
- Suzuki VS 1400 GL Intruder (PJ) (TO APR 91) 1991
- Suzuki VS 1400 GL Intruder 1992
- Suzuki VS 1400 GL Intruder 1993
- Suzuki VS 1400 GL Intruder (PR) (FROM SEP 94) 1994
- Suzuki VS 1400 GL Intruder (PS) 1995
- Suzuki VS 1400 GL Intruder (PV) (FROM OCT 96) 1996
- Suzuki VS 1400 GL Intruder (PT) (TO SEP 96) 1996
- Suzuki VS 1400 GL Intruder (PV) 1997
- Suzuki VS 1400 GL Intruder (PW) (FROM FEB 98) 1998
- Suzuki VS 1400 GL Intruder (PV) (TO JAN 98) 1998
- Suzuki VS 1400 GL Intruder (PW) 1999
- Suzuki VS 1400 GL Intruder 2000
- Suzuki VS 1400 GL Intruder 2001
- Suzuki VS 1400 GL Intruder 2002
- Suzuki VS 1400 GL Intruder 2003
