Product description

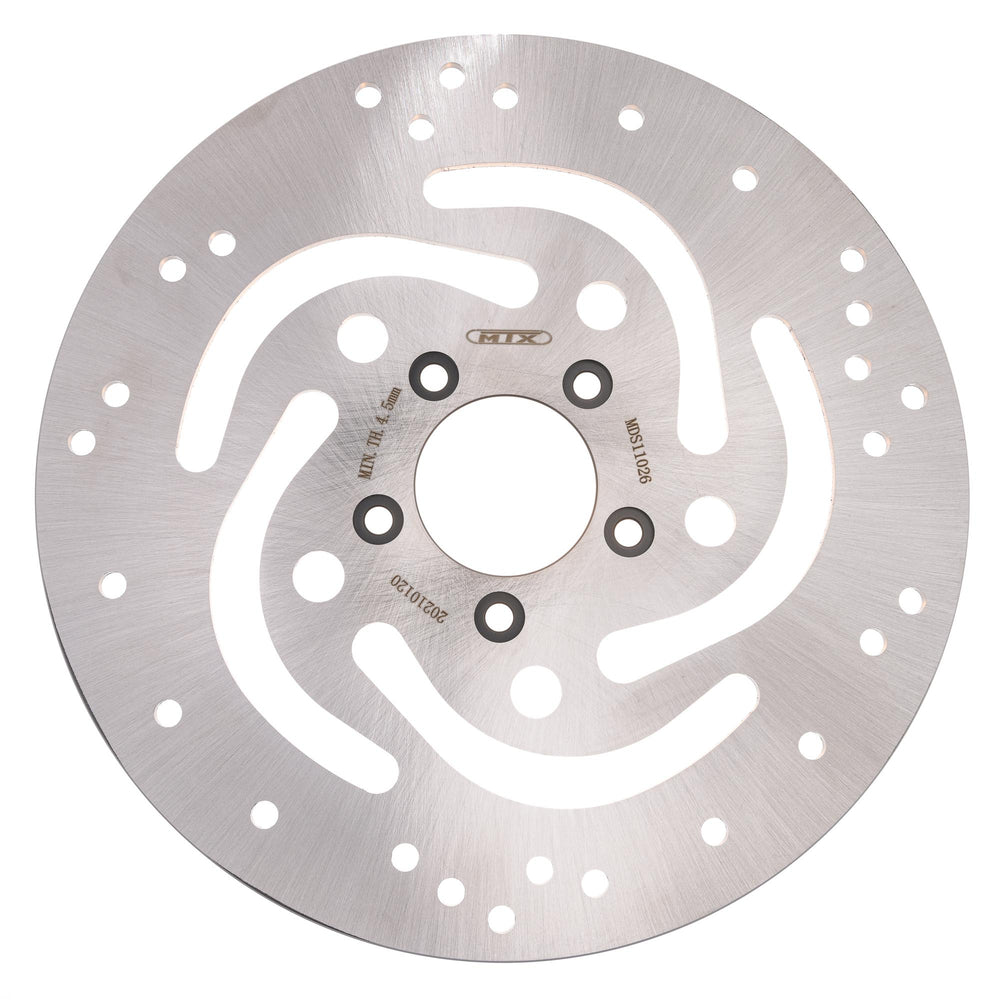

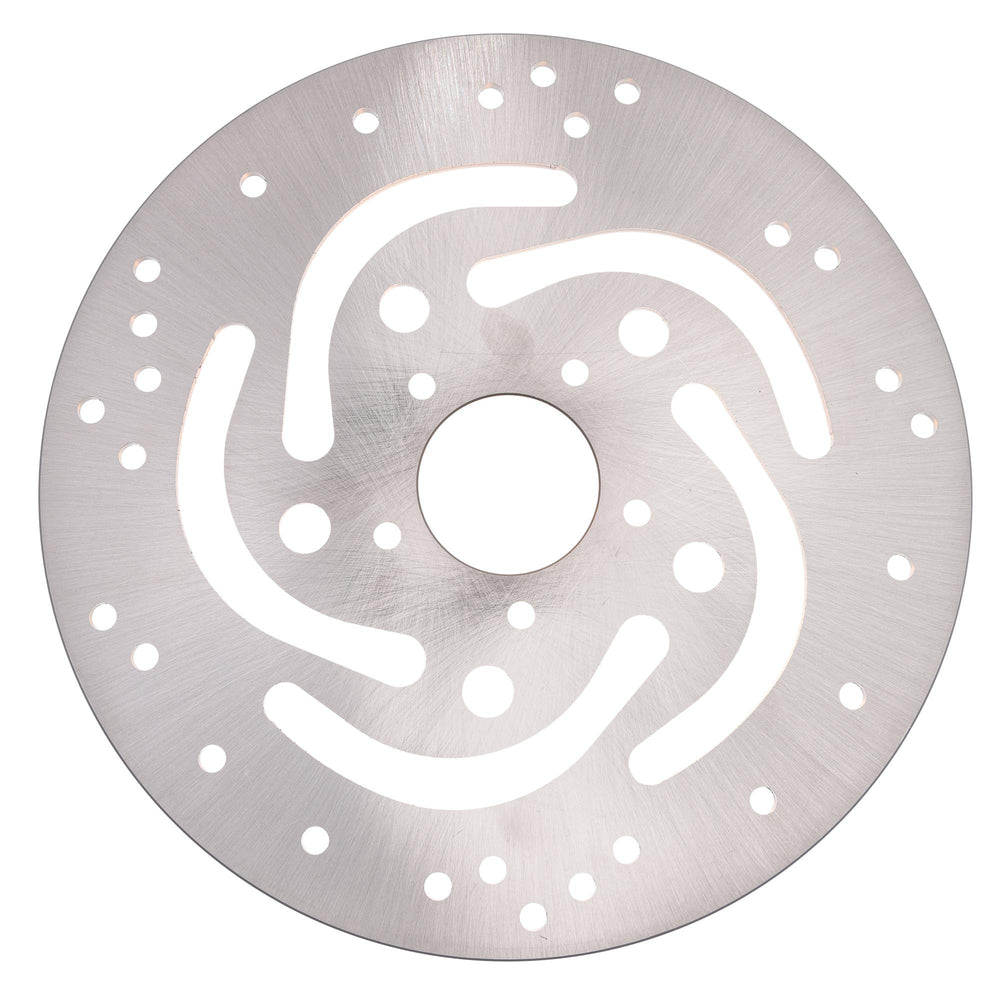

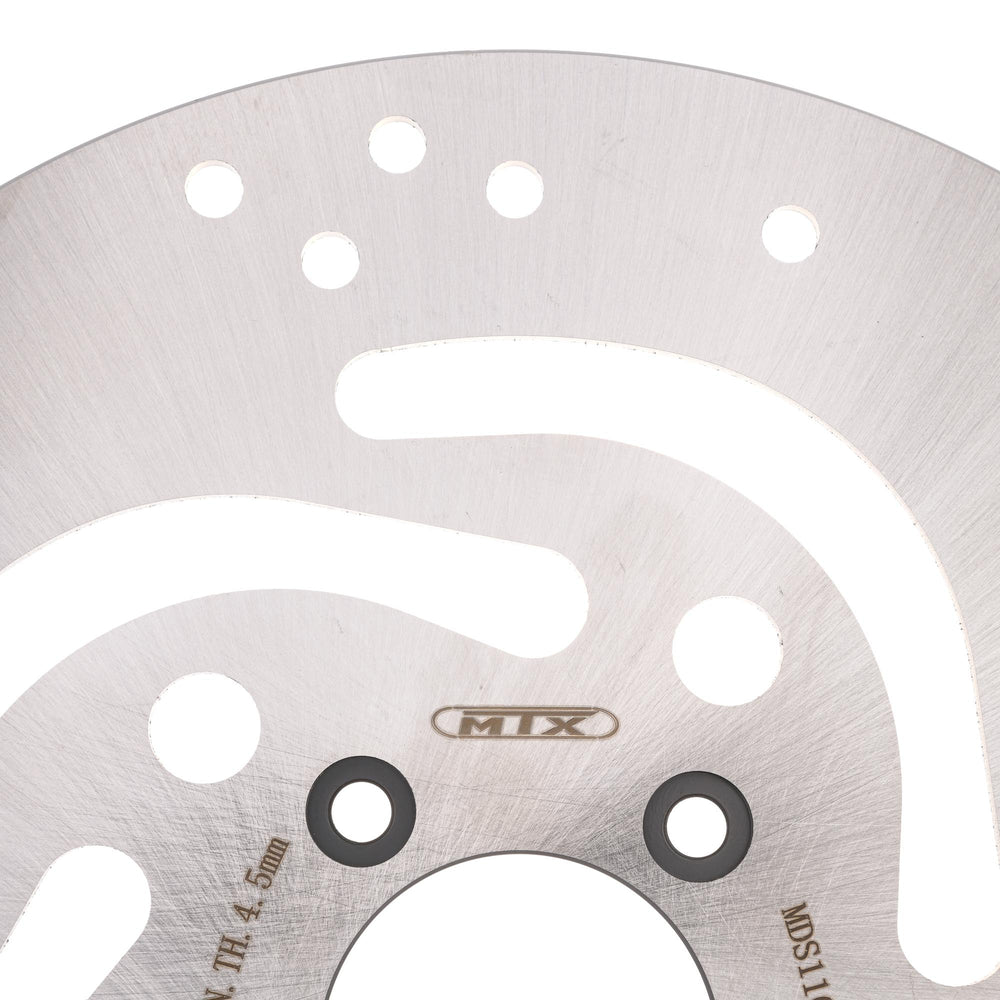

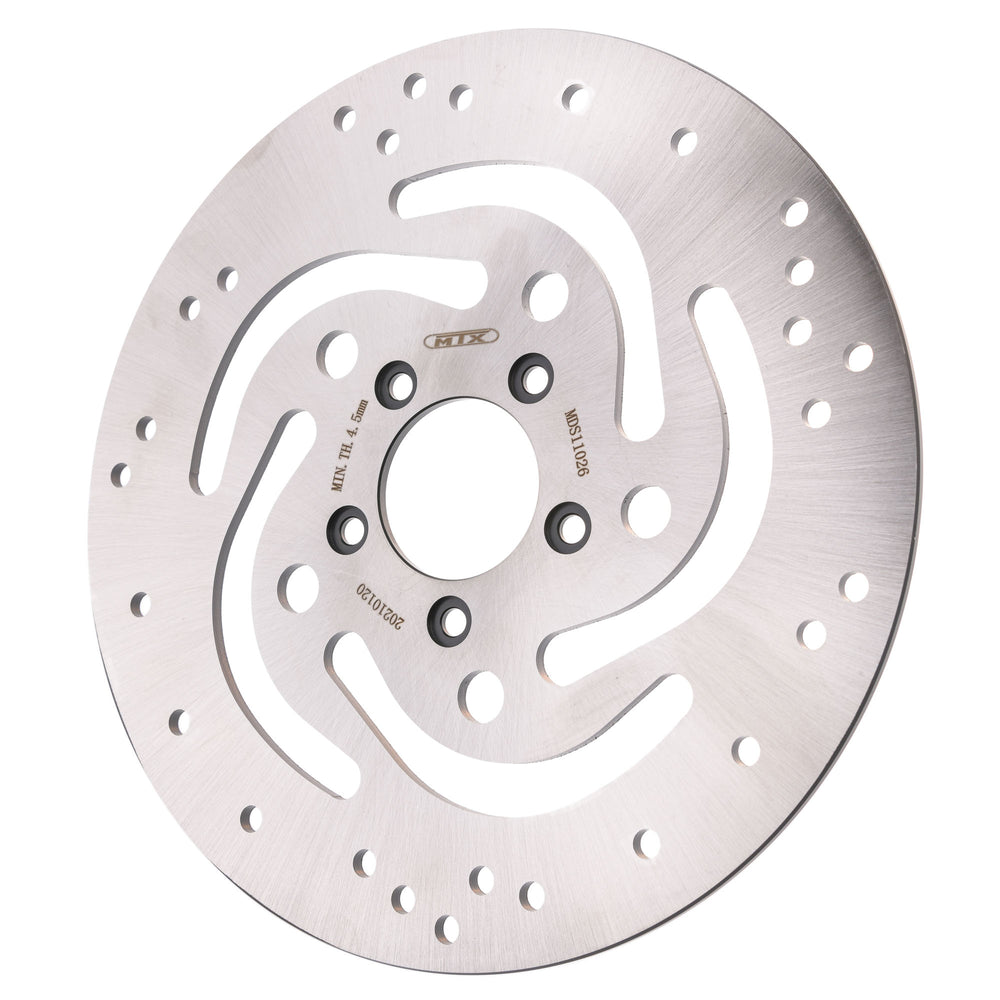

The MTX Performance Front Solid Round Brake Disc - Harley Davidson FLSTF Fat Boy 2000-14 is part of the latest performance brake disc range from MTX.
Drawing from its immense racing experience, MTX has refined the performance and tolerances now offering applications for almost every motorcycle brand and model on the market.
Performance at your fingertips!
Solid disc features:
- Constructed using one complete segment of Japanese SUS 420 stainless steel, then heat-treated to HRC 36+-2 standards.
- Lightening and drill hole patterns are applied as per OEM specifications to improve braking performance and reduce the discs temperature during use.
- Precision CNC machined and laser cut technology
- Japanese SUS 420 Stainless Steel
- Replacement for Original Equipment
- OEM Design; lightening & drill hole patterns
Technical spec.:
- Outer Diameter (mm): 292
- Inner Diameter (mm): 56
- Bolt Hole Circumference (mm): 82.55
- Bolt Hole Quantity: 5
- Bolt Hole Size (mm): 8.5
- Thickness (mm): 5
- Minimum Thickness (mm): 4.5
- Bolt Hole Type: Counterbored
Manufacturer Part Code Cross Reference:
Manufacturer part number: MDS11026
View all MTX. View all Brake parts.
Contents
Your package will include the following:
- 1 X MTX Performance Front Solid Round Brake Disc - Harley Davidson FLSTF Fat Boy 2000-14
- Harley Davidson XLH 883 Sportster 2000
- Harley Davidson XLH 883 R Sportster Flat Track 2000
- Harley Davidson XL 883 Sportster Hugger 2000
- Harley Davidson XL 53 C Sportster Custom (883cc) 2000
- Harley Davidson XL 1200 S Sportster Sport 2000
- Harley Davidson XL 1200 C Sportster Custom 2000
- Harley Davidson FXSTi Softail Standard 2000
- Harley Davidson FXSTDi Softail Deuce 2000
- Harley Davidson FXSTD Softail Deuce 2000
- Harley Davidson FXSTBi NightTrain 2000
- Harley Davidson FXSTB NightTrain 2000
- Harley Davidson FXST Softail Standard 2000
- Harley Davidson FXDX Dyna Super Glide Sport 2000
- Harley Davidson FXDWG Dyna Wide Glide 2000
- Harley Davidson FXDS Dyna Con Dyna Convertible 2000
- Harley Davidson FXDL Dyna Low Rider 2000
- Harley Davidson FXD Super Glide 2000
- Harley Davidson FLTRi Road Glide 2000
- Harley Davidson FLTR Road Glide 2000
- Harley Davidson FLSTS Heritage Springer 2000
- Harley Davidson FLSTFi Fat Boy 2000
- Harley Davidson FLSTF Fat Boy 2000
- Harley Davidson FLSTCI Heritage Softail Classic 2000
- Harley Davidson FLSTC Heritage Softail Classic 2000
- Harley Davidson FLHTi Electra Glide Standard 2000
- Harley Davidson FLHTCU-I Electra Glide Ultra Classic 2000
- Harley Davidson FLHT Electra Glide Standard 2000
- Harley Davidson FLHRi Road King 2000
- Harley Davidson FLHRCi Road King Classic 2000
- Harley Davidson FLHR Road King 2000
- Harley Davidson XLH 883 Sportster 2001
- Harley Davidson XLH 883 R Sportster Flat Track 2001
- Harley Davidson XL 883 Sportster Hugger 2001
- Harley Davidson XL 53 C Sportster Custom (883cc) 2001
- Harley Davidson XL 1200 S Sportster Sport 2001
- Harley Davidson XL 1200 C Sportster Custom 2001
- Harley Davidson FXSTi Softail Standard 2001
- Harley Davidson FXSTDi Softail Deuce 2001
- Harley Davidson FXSTD Softail Deuce 2001
- Harley Davidson FXSTBi NightTrain 2001
- Harley Davidson FXSTB NightTrain 2001
- Harley Davidson FXST Softail Standard 2001
- Harley Davidson FXDXT Dyna Superglide T-Sport 2001
- Harley Davidson FXDX Dyna Super Glide Sport 2001
- Harley Davidson FXDWG Dyna Wide Glide 2001
- Harley Davidson FXDS Dyna Con Dyna Convertible 2001
- Harley Davidson FXDL Dyna Low Rider 2001
- Harley Davidson FXD Super Glide 2001
- Harley Davidson FLTRi Road Glide 2001
- Harley Davidson FLTR Road Glide 2001
- Harley Davidson FLSTS Heritage Springer 2001
- Harley Davidson FLSTFi Fat Boy 2001
- Harley Davidson FLSTF Fat Boy 2001
- Harley Davidson FLSTCI Heritage Softail Classic 2001
- Harley Davidson FLSTC Heritage Softail Classic 2001
- Harley Davidson FLHTi Electra Glide Standard 2001
- Harley Davidson FLHTCU-I Electra Glide Ultra Classic 2001
- Harley Davidson FLHT Electra Glide Standard 2001
- Harley Davidson FLHRi Road King 2001
- Harley Davidson FLHRCi Road King Classic 2001
- Harley Davidson FLHR Road King 2001
- Harley Davidson XLH 883 Sportster 2002
- Harley Davidson XLH 883 R Sportster Flat Track 2002
- Harley Davidson XL 883 Sportster Hugger 2002
- Harley Davidson XL 53 C Sportster Custom (883cc) 2002
- Harley Davidson XL 1200 S Sportster Sport 2002
- Harley Davidson XL 1200 C Sportster Custom 2002
- Harley Davidson FXSTi Softail Standard 2002
- Harley Davidson FXSTDi Softail Deuce 2002
- Harley Davidson FXSTD Softail Deuce 2002
- Harley Davidson FXSTBi NightTrain 2002
- Harley Davidson FXSTB NightTrain 2002
- Harley Davidson FXST Softail Standard 2002
- Harley Davidson FXDXT Dyna Superglide T-Sport 2002
- Harley Davidson FXDX Dyna Super Glide Sport 2002
- Harley Davidson FXDWG Dyna Wide Glide 2002
- Harley Davidson FXDS Dyna Con Dyna Convertible 2002
- Harley Davidson FXDL Dyna Low Rider 2002
- Harley Davidson FXD Super Glide 2002
- Harley Davidson FLTRi Road Glide 2002
- Harley Davidson FLTR Road Glide 2002
- Harley Davidson FLSTS Heritage Springer 2002
- Harley Davidson FLSTFi Fat Boy 2002
- Harley Davidson FLSTF Fat Boy 2002
- Harley Davidson FLSTCI Heritage Softail Classic 2002
- Harley Davidson FLSTC Heritage Softail Classic 2002
- Harley Davidson FLHTi Electra Glide Standard 2002
- Harley Davidson FLHTCU-I Electra Glide Ultra Classic 2002
- Harley Davidson FLHT Electra Glide Standard 2002
- Harley Davidson FLHRi Road King 2002
- Harley Davidson FLHRCi Road King Classic 2002
- Harley Davidson FLHR Road King 2002
- Harley Davidson XLH 883 Sportster 2003
- Harley Davidson XLH 883 R Sportster Flat Track 2003
- Harley Davidson XL 883 Sportster Hugger 2003
- Harley Davidson XL 883 R 100th Anniversary Edition 2003
- Harley Davidson XL 53 C Sportster Custom (883cc) 2003
- Harley Davidson XL 1200 S Sportster Sport 2003
- Harley Davidson XL 1200 C Sportster Custom 2003
- Harley Davidson FXSTi Softail Standard 2003
- Harley Davidson FXSTDi Softail Deuce 2003
- Harley Davidson FXSTD Softail Deuce 2003
- Harley Davidson FXSTBi NightTrain 2003
- Harley Davidson FXSTB NightTrain 2003
- Harley Davidson FXST Softail Standard 2003
- Harley Davidson FXDXT Dyna Superglide T-Sport 2003
- Harley Davidson FXDX Dyna Super Glide Sport 2003
- Harley Davidson FXDWG Dyna Wide Glide 2003
- Harley Davidson FXDL Dyna Low Rider 2003
- Harley Davidson FXD Super Glide 2003
- Harley Davidson FLTRi Road Glide 2003
- Harley Davidson FLTR Road Glide 2003
- Harley Davidson FLSTS Heritage Springer 2003
- Harley Davidson FLSTFi Fat Boy 2003
- Harley Davidson FLSTF Fat Boy 2003
- Harley Davidson FLSTCI Heritage Softail Classic 2003
- Harley Davidson FLSTC Heritage Softail Classic 2003
- Harley Davidson FLHTi Electra Glide Standard 2003
- Harley Davidson FLHTCU-I Electra Glide Ultra Classic 2003
- Harley Davidson FLHT Electra Glide Standard 2003
- Harley Davidson FLHRi Road King 2003
- Harley Davidson FLHRCi Road King Classic 2003
- Harley Davidson FLHR Road King 2003
- Harley Davidson XL 883 Sportster Standard 2004
- Harley Davidson XL 883 L Low 2004
- Harley Davidson XL 883 C Sportster Custom 2004
- Harley Davidson XL 1200 R Sportster Roadster 2004
- Harley Davidson XL 1200 C Sportster Custom 2004
- Harley Davidson FXSTi Softail Standard 2004
- Harley Davidson FXSTDi Softail Deuce 2004
- Harley Davidson FXSTD Softail Deuce 2004
- Harley Davidson FXSTBi NightTrain 2004
- Harley Davidson FXSTB NightTrain 2004
- Harley Davidson FXST Softail Standard 2004
- Harley Davidson FXDi Dyna Super Glide 1450 2004
- Harley Davidson FXDXi Dyna Super Glide Sport 2004
- Harley Davidson FXDWGi Dyna Wide Glide 1450 2004
- Harley Davidson FXDLi Dyna Low Rider 1450 2004
- Harley Davidson FLTRi Road Glide 2004
- Harley Davidson FLTR Road Glide 2004
- Harley Davidson FLSTFi Fat Boy 2004
- Harley Davidson FLSTF Fat Boy 2004
- Harley Davidson FLSTCI Heritage Softail Classic 2004
- Harley Davidson FLSTC Heritage Softail Classic 2004
- Harley Davidson FLHTi Electra Glide Standard 2004
- Harley Davidson FLHTCi Electra Glide Classic 2004
- Harley Davidson FLHTCU-I Electra Glide Ultra Classic 2004
- Harley Davidson FLHTC Electra Glide Classic 2004
- Harley Davidson FLHT Electra Glide Standard 2004
- Harley Davidson FLHRi Road King 2004
- Harley Davidson FLHRSi Road King Custom 2004
- Harley Davidson FLHRS Road King Custom 2004
- Harley Davidson FLHRCi Road King Classic 2004
- Harley Davidson FLHR Road King 2004
- Harley Davidson XL 883 Sportster Standard 2005
- Harley Davidson XL 883 R Sportster R 2005
- Harley Davidson XL 883 L Low 2005
- Harley Davidson XL 883 C Sportster Custom 2005
- Harley Davidson XL 1200 R Sportster Roadster 2005
- Harley Davidson XL 1200 C Sportster Custom 2005
- Harley Davidson FXSTi Softail Standard 2005
- Harley Davidson FXSTDi Softail Deuce 2005
- Harley Davidson FXSTD Softail Deuce 2005
- Harley Davidson FXSTBi NightTrain 2005
- Harley Davidson FXSTB NightTrain 2005
- Harley Davidson FXST Softail Standard 2005
- Harley Davidson FXDi Dyna Super Glide 1450 2005
- Harley Davidson FXDXi Dyna Super Glide Sport 2005
- Harley Davidson FXDWGi Dyna Wide Glide 1450 2005
- Harley Davidson FXDLi Dyna Low Rider 1450 2005
- Harley Davidson FXDCi Super Glide Custom 2005
- Harley Davidson FXDC Super Glide Custom 2005
- Harley Davidson FLTRi Road Glide 2005
- Harley Davidson FLTR Road Glide 2005
- Harley Davidson FLSTSCi Springer Softail Classic 2005
- Harley Davidson FLSTSC Springer Softail Classic 2005
- Harley Davidson FLSTNi Softail Deluxe 2005
- Harley Davidson FLSTN Softail Deluxe 2005
- Harley Davidson FLSTFi Fat Boy 15th Anniversary Edition 2005
- Harley Davidson FLSTFi Fat Boy 2005
- Harley Davidson FLSTF Fat Boy 2005
- Harley Davidson FLSTCI Heritage Softail Classic 2005
- Harley Davidson FLSTC Heritage Softail Classic 2005
- Harley Davidson FLHTi Electra Glide Standard 2005
- Harley Davidson FLHTCi Electra Glide Classic 2005
- Harley Davidson FLHTCU-I Electra Glide Ultra Classic 2005
- Harley Davidson FLHTC Electra Glide Classic 2005
- Harley Davidson FLHT Electra Glide Standard 2005
- Harley Davidson FLHRi Road King 2005
- Harley Davidson FLHRSi Road King Custom 2005
- Harley Davidson FLHRS Road King Custom 2005
- Harley Davidson FLHRCi Road King Classic 2005
- Harley Davidson FLHR Road King 2005
- Harley Davidson XL 883 Sportster Standard 2006
- Harley Davidson XL 883 R Sportster R 2006
- Harley Davidson XL 883 L Low 2006
- Harley Davidson XL 883 C Sportster Custom 2006
- Harley Davidson XL 1200 R Sportster Roadster 2006
- Harley Davidson XL 1200 C Sportster Custom 2006
- Harley Davidson FXSTi Softail Standard 2006
- Harley Davidson FXSTDi Softail Deuce 2006
- Harley Davidson FXSTD Softail Deuce 2006
- Harley Davidson FXSTBi Night Train Softail 2006
- Harley Davidson FXSTB Night Train Softail 2006
- Harley Davidson FXST Softail Standard 2006
- Harley Davidson FLTRi Road Glide 2006
- Harley Davidson FLTR Road Glide 2006
- Harley Davidson FLSTi Heritage Softail 2006
- Harley Davidson FLSTSCi Springer Softail Classic 2006
- Harley Davidson FLSTSC Springer Softail Classic 2006
- Harley Davidson FLSTNi Softail Deluxe 2006
- Harley Davidson FLSTN Softail Deluxe 2006
- Harley Davidson FLSTFi Fat Boy 2006
- Harley Davidson FLSTF Fat Boy 2006
- Harley Davidson FLSTCI Heritage Softail Classic 2006
- Harley Davidson FLSTC Heritage Softail Classic 2006
- Harley Davidson FLST Heritage Softail 2006
- Harley Davidson FLHXi Street Glide 2006
- Harley Davidson FLHX Street Glide 2006
- Harley Davidson FLHTi Electra Glide Standard 2006
- Harley Davidson FLHTCi Electra Glide Classic 2006
- Harley Davidson FLHTCU-I Electra Glide Ultra Classic 2006
- Harley Davidson FLHTC Electra Glide Classic 2006
- Harley Davidson FLHT Electra Glide Standard 2006
- Harley Davidson FLHRi Road King 2006
- Harley Davidson FLHRSi Road King Custom 2006
- Harley Davidson FLHRS Road King Custom 2006
- Harley Davidson FLHRCi Road King Classic 2006
- Harley Davidson FLHR Road King 2006
- Harley Davidson XL 883 Sportster Standard 2007
- Harley Davidson XL 883 R Sportster R 2007
- Harley Davidson XL 883 L Low 2007
- Harley Davidson XL 883 C Sportster Custom 2007
- Harley Davidson XL 50 50th Anniversary Sportster (1200cc) 2007
- Harley Davidson XL 1200 R Sportster Roadster 2007
- Harley Davidson XL 1200 L Sportster Low (Spoke Wheel) 2007
- Harley Davidson XL 1200 L Sportster Low (Cast Wheel) 2007
- Harley Davidson XL 1200 C Sportster Custom 2007
- Harley Davidson FXSTi Softail Standard 2007
- Harley Davidson FXSTDi Softail Deuce 2007
- Harley Davidson FXSTD Softail Deuce 2007
- Harley Davidson FXSTC Softail Custom 2007
- Harley Davidson FXSTBi Night Train Softail 2007
- Harley Davidson FXSTB Night Train Softail 2007
- Harley Davidson FXST Softail Standard 2007
- Harley Davidson FLTRi Road Glide 2007
- Harley Davidson FLTR Road Glide 2007
- Harley Davidson FLSTSCi Springer Softail Classic 2007
- Harley Davidson FLSTSC Springer Softail Classic 2007
- Harley Davidson FLSTNi Softail Deluxe 2007
- Harley Davidson FLSTN Softail Deluxe 2007
- Harley Davidson FLSTFi Fat Boy 2007
- Harley Davidson FLSTF Fat Boy 2007
- Harley Davidson FLSTCI Heritage Softail Classic 2007
- Harley Davidson FLSTC Heritage Softail Classic 2007
- Harley Davidson FLHXi Street Glide 2007
- Harley Davidson FLHX Street Glide 2007
- Harley Davidson FLHTi Electra Glide Standard 2007
- Harley Davidson FLHTCi Electra Glide Classic 2007
- Harley Davidson FLHTCU-I Electra Glide Ultra Classic 2007
- Harley Davidson FLHTC Electra Glide Classic 2007
- Harley Davidson FLHT Electra Glide Standard 2007
- Harley Davidson FLHRi Road King 2007
- Harley Davidson FLHRSi Road King Custom 2007
- Harley Davidson FLHRS Road King Custom 2007
- Harley Davidson FLHRCi Road King Classic 2007
- Harley Davidson FLHR Road King 2007
- Harley Davidson XL 883 Sportster Standard 2008
- Harley Davidson XL 883 R Sportster R 2008
- Harley Davidson XL 883 L Low 2008
- Harley Davidson XL 883 C Sportster Custom 2008
- Harley Davidson XL 1200 R Sportster Roadster 2008
- Harley Davidson XL 1200 N Nightster (Spoke Wheel) 2008
- Harley Davidson XL 1200 L Sportster Low (Spoke Wheel) 2008
- Harley Davidson XL 1200 L Sportster Low (Cast Wheel) 2008
- Harley Davidson XL 1200 C Sportster Custom 2008
- Harley Davidson FXSTC Softail Custom (Spoke Wheel) 2008
- Harley Davidson FXSTB Night Train Softail (Spoke Wheel) 2008
- Harley Davidson FXST Softail Standard 2008
- Harley Davidson FXCWC Rocker C (Cast Wheel) 2008
- Harley Davidson FXCW Rocker (Cast Wheel) 2008
- Harley Davidson FLSTSB Softail Cross Bones 2008
- Harley Davidson FLSTN Softail Deluxe (Spoke Wheel) 2008
- Harley Davidson FLSTF Fat Boy 2008
- Harley Davidson FLSTC Heritage Softail Classic 2008
- Harley Davidson XL 883 R Sportster R 2009
- Harley Davidson XL 883 N Iron 2009
- Harley Davidson XL 883 L Low 2009
- Harley Davidson XL 883 C Sportster Custom 2009
- Harley Davidson XL 1200 N Nightster (Spoke Wheel) 2009
- Harley Davidson XL 1200 L Sportster Low (Spoke Wheel) 2009
- Harley Davidson XL 1200 L Sportster Low (Cast Wheel) 2009
- Harley Davidson XL 1200 C Sportster Custom 2009
- Harley Davidson FXSTC Softail Custom (Spoke Wheel) 2009
- Harley Davidson FXSTB Night Train Softail (Spoke Wheel) 2009
- Harley Davidson FXST Softail Standard 2009
- Harley Davidson FXCWC Rocker C (Cast Wheel) 2009
- Harley Davidson FXCW Rocker (Cast Wheel) 2009
- Harley Davidson FLSTSB Softail Cross Bones 2009
- Harley Davidson FLSTN Softail Deluxe (Spoke Wheel) 2009
- Harley Davidson FLSTF Fat Boy 2009
- Harley Davidson FLSTC Heritage Softail Classic 2009
- Harley Davidson XL 883 R Sportster R 2010
- Harley Davidson XL 883 R Roadster 2010
- Harley Davidson XL 883 N Iron 2010
- Harley Davidson XL 883 L Low 2010
- Harley Davidson XL 883 C Sportster Custom 2010
- Harley Davidson XL 1200 X Forty Eight 2010
- Harley Davidson XL 1200 N Nightster (Spoke Wheel) 2010
- Harley Davidson XL 1200 L Sportster Low (Spoke Wheel) 2010
- Harley Davidson XL 1200 L Sportster Low (Cast Wheel) 2010
- Harley Davidson XL 1200 C Sportster Custom 2010
- Harley Davidson FXSTC Softail Custom (Spoke Wheel) 2010
- Harley Davidson FXST Softail Standard 2010
- Harley Davidson FXCWC Rocker C (Cast Wheel) 2010
- Harley Davidson FLSTSB Softail Cross Bones 2010
- Harley Davidson FLSTN Softail Deluxe (Spoke Wheel) 2010
- Harley Davidson FLSTFB Fat Boy Lo 2010
- Harley Davidson FLSTF Fat Boy 2010
- Harley Davidson FLSTC Heritage Softail Classic 2010
- Harley Davidson XL 883 R Sportster R 2011
- Harley Davidson XL 883 R Roadster (Cast Wheel) 2011
- Harley Davidson XL 883 N Iron (Cast Wheel) 2011
- Harley Davidson XL 883 L Superlow 2011
- Harley Davidson XL 1200 X Forty Eight 2011
- Harley Davidson XL 1200 N Nightster (Spoke Wheel) 2011
- Harley Davidson XL 1200 L Sportster Low (Spoke Wheel) 2011
- Harley Davidson XL 1200 L Sportster Low (Cast Wheel) 2011
- Harley Davidson XL 1200 C Sportster Custom (Spoke Wheel) 2011
- Harley Davidson XL 1200 C Sportster Custom (Cast Wheel) 2011
- Harley Davidson FXST Softail Standard 2011
- Harley Davidson FXS Blackline 2011
- Harley Davidson FXCWC Rocker C (Cast Wheel) 2011
- Harley Davidson FLSTSB Softail Cross Bones 2011
- Harley Davidson FLSTN Softail Deluxe (Spoke Wheel) 2011
- Harley Davidson FLSTFB Fat Boy Lo 2011
- Harley Davidson FLSTF Fat Boy 2011
- Harley Davidson FLSTC Heritage Softail Classic 2011
- Harley Davidson XL 883 R Sportster R 2012
- Harley Davidson XL 883 R Roadster (Cast Wheel) 2012
- Harley Davidson XL 883 N Iron (Cast Wheel) 2012
- Harley Davidson XL 883 L Superlow 2012
- Harley Davidson XL 1200 X Forty Eight 2012
- Harley Davidson XL 1200 V SeventyTwo 2012
- Harley Davidson XL 1200 N Nightster (Spoke Wheel) 2012
- Harley Davidson XL 1200 C Sportster Custom (Spoke Wheel) 2012
- Harley Davidson XL 1200 C Sportster Custom (Cast Wheel) 2012
- Harley Davidson FXST Softail Standard 2012
- Harley Davidson FXS Blackline 2012
- Harley Davidson FLSTN Softail Deluxe (Spoke Wheel) 2012
- Harley Davidson FLSTFB Fat Boy Lo 2012
- Harley Davidson FLSTF Fat Boy 2012
- Harley Davidson FLSTC Heritage Softail Classic 2012
- Harley Davidson FLS Softail Slim 2012
- Harley Davidson XL 883 R Sportster R 2013
- Harley Davidson XL 883 R Roadster (Cast Wheel) 2013
- Harley Davidson XL 883 N Iron (Cast Wheel) 2013
- Harley Davidson XL 883 L Superlow 2013
- Harley Davidson XL 1200 X Forty Eight 2013
- Harley Davidson XL 1200 V SeventyTwo 2013
- Harley Davidson XL 1200 C Sportster Custom (Spoke Wheel) 2013
- Harley Davidson XL 1200 C Sportster Custom (Cast Wheel) 2013
- Harley Davidson FXST Softail Standard 2013
- Harley Davidson FXSB Breakout 2013
- Harley Davidson FXS Blackline 2013
- Harley Davidson FLSTN Softail Deluxe (Spoke Wheel) 2013
- Harley Davidson FLSTFB Fat Boy Lo 2013
- Harley Davidson FLSTF Fat Boy 2013
- Harley Davidson FLSTC Heritage Softail Classic 2013
- Harley Davidson FLS Softail Slim 2013
- Harley Davidson FXST Softail Standard 2014
- Harley Davidson FXSB Breakout 2014
- Harley Davidson FLSTN Softail Deluxe (Spoke Wheel) 2014
- Harley Davidson FLSTFB Fat Boy Lo 2014
- Harley Davidson FLSTF Fat Boy 2014
- Harley Davidson FLSTC Heritage Softail Classic 2014
- Harley Davidson FLS Softail Slim 2014
Product description
The MTX Performance Front Solid Round Brake Disc - Harley Davidson FLSTF Fat Boy 2000-14 is part of the latest performance brake disc range from MTX.
Drawing from its immense racing experience, MTX has refined the performance and tolerances now offering applications for almost every motorcycle brand and model on the market.
Performance at your fingertips!
Solid disc features:
- Constructed using one complete segment of Japanese SUS 420 stainless steel, then heat-treated to HRC 36+-2 standards.
- Lightening and drill hole patterns are applied as per OEM specifications to improve braking performance and reduce the discs temperature during use.
- Precision CNC machined and laser cut technology
- Japanese SUS 420 Stainless Steel
- Replacement for Original Equipment
- OEM Design; lightening & drill hole patterns
Technical spec.:
- Outer Diameter (mm): 292
- Inner Diameter (mm): 56
- Bolt Hole Circumference (mm): 82.55
- Bolt Hole Quantity: 5
- Bolt Hole Size (mm): 8.5
- Thickness (mm): 5
- Minimum Thickness (mm): 4.5
- Bolt Hole Type: Counterbored
Manufacturer Part Code Cross Reference:
Manufacturer part number: MDS11026
View all MTX. View all Brake parts.
Contents
Your package will include the following:
- 1 X MTX Performance Front Solid Round Brake Disc - Harley Davidson FLSTF Fat Boy 2000-14
- Harley Davidson XLH 883 Sportster 2000
- Harley Davidson XLH 883 R Sportster Flat Track 2000
- Harley Davidson XL 883 Sportster Hugger 2000
- Harley Davidson XL 53 C Sportster Custom (883cc) 2000
- Harley Davidson XL 1200 S Sportster Sport 2000
- Harley Davidson XL 1200 C Sportster Custom 2000
- Harley Davidson FXSTi Softail Standard 2000
- Harley Davidson FXSTDi Softail Deuce 2000
- Harley Davidson FXSTD Softail Deuce 2000
- Harley Davidson FXSTBi NightTrain 2000
- Harley Davidson FXSTB NightTrain 2000
- Harley Davidson FXST Softail Standard 2000
- Harley Davidson FXDX Dyna Super Glide Sport 2000
- Harley Davidson FXDWG Dyna Wide Glide 2000
- Harley Davidson FXDS Dyna Con Dyna Convertible 2000
- Harley Davidson FXDL Dyna Low Rider 2000
- Harley Davidson FXD Super Glide 2000
- Harley Davidson FLTRi Road Glide 2000
- Harley Davidson FLTR Road Glide 2000
- Harley Davidson FLSTS Heritage Springer 2000
- Harley Davidson FLSTFi Fat Boy 2000
- Harley Davidson FLSTF Fat Boy 2000
- Harley Davidson FLSTCI Heritage Softail Classic 2000
- Harley Davidson FLSTC Heritage Softail Classic 2000
- Harley Davidson FLHTi Electra Glide Standard 2000
- Harley Davidson FLHTCU-I Electra Glide Ultra Classic 2000
- Harley Davidson FLHT Electra Glide Standard 2000
- Harley Davidson FLHRi Road King 2000
- Harley Davidson FLHRCi Road King Classic 2000
- Harley Davidson FLHR Road King 2000
- Harley Davidson XLH 883 Sportster 2001
- Harley Davidson XLH 883 R Sportster Flat Track 2001
- Harley Davidson XL 883 Sportster Hugger 2001
- Harley Davidson XL 53 C Sportster Custom (883cc) 2001
- Harley Davidson XL 1200 S Sportster Sport 2001
- Harley Davidson XL 1200 C Sportster Custom 2001
- Harley Davidson FXSTi Softail Standard 2001
- Harley Davidson FXSTDi Softail Deuce 2001
- Harley Davidson FXSTD Softail Deuce 2001
- Harley Davidson FXSTBi NightTrain 2001
- Harley Davidson FXSTB NightTrain 2001
- Harley Davidson FXST Softail Standard 2001
- Harley Davidson FXDXT Dyna Superglide T-Sport 2001
- Harley Davidson FXDX Dyna Super Glide Sport 2001
- Harley Davidson FXDWG Dyna Wide Glide 2001
- Harley Davidson FXDS Dyna Con Dyna Convertible 2001
- Harley Davidson FXDL Dyna Low Rider 2001
- Harley Davidson FXD Super Glide 2001
- Harley Davidson FLTRi Road Glide 2001
- Harley Davidson FLTR Road Glide 2001
- Harley Davidson FLSTS Heritage Springer 2001
- Harley Davidson FLSTFi Fat Boy 2001
- Harley Davidson FLSTF Fat Boy 2001
- Harley Davidson FLSTCI Heritage Softail Classic 2001
- Harley Davidson FLSTC Heritage Softail Classic 2001
- Harley Davidson FLHTi Electra Glide Standard 2001
- Harley Davidson FLHTCU-I Electra Glide Ultra Classic 2001
- Harley Davidson FLHT Electra Glide Standard 2001
- Harley Davidson FLHRi Road King 2001
- Harley Davidson FLHRCi Road King Classic 2001
- Harley Davidson FLHR Road King 2001
- Harley Davidson XLH 883 Sportster 2002
- Harley Davidson XLH 883 R Sportster Flat Track 2002
- Harley Davidson XL 883 Sportster Hugger 2002
- Harley Davidson XL 53 C Sportster Custom (883cc) 2002
- Harley Davidson XL 1200 S Sportster Sport 2002
- Harley Davidson XL 1200 C Sportster Custom 2002
- Harley Davidson FXSTi Softail Standard 2002
- Harley Davidson FXSTDi Softail Deuce 2002
- Harley Davidson FXSTD Softail Deuce 2002
- Harley Davidson FXSTBi NightTrain 2002
- Harley Davidson FXSTB NightTrain 2002
- Harley Davidson FXST Softail Standard 2002
- Harley Davidson FXDXT Dyna Superglide T-Sport 2002
- Harley Davidson FXDX Dyna Super Glide Sport 2002
- Harley Davidson FXDWG Dyna Wide Glide 2002
- Harley Davidson FXDS Dyna Con Dyna Convertible 2002
- Harley Davidson FXDL Dyna Low Rider 2002
- Harley Davidson FXD Super Glide 2002
- Harley Davidson FLTRi Road Glide 2002
- Harley Davidson FLTR Road Glide 2002
- Harley Davidson FLSTS Heritage Springer 2002
- Harley Davidson FLSTFi Fat Boy 2002
- Harley Davidson FLSTF Fat Boy 2002
- Harley Davidson FLSTCI Heritage Softail Classic 2002
- Harley Davidson FLSTC Heritage Softail Classic 2002
- Harley Davidson FLHTi Electra Glide Standard 2002
- Harley Davidson FLHTCU-I Electra Glide Ultra Classic 2002
- Harley Davidson FLHT Electra Glide Standard 2002
- Harley Davidson FLHRi Road King 2002
- Harley Davidson FLHRCi Road King Classic 2002
- Harley Davidson FLHR Road King 2002
- Harley Davidson XLH 883 Sportster 2003
- Harley Davidson XLH 883 R Sportster Flat Track 2003
- Harley Davidson XL 883 Sportster Hugger 2003
- Harley Davidson XL 883 R 100th Anniversary Edition 2003
- Harley Davidson XL 53 C Sportster Custom (883cc) 2003
- Harley Davidson XL 1200 S Sportster Sport 2003
- Harley Davidson XL 1200 C Sportster Custom 2003
- Harley Davidson FXSTi Softail Standard 2003
- Harley Davidson FXSTDi Softail Deuce 2003
- Harley Davidson FXSTD Softail Deuce 2003
- Harley Davidson FXSTBi NightTrain 2003
- Harley Davidson FXSTB NightTrain 2003
- Harley Davidson FXST Softail Standard 2003
- Harley Davidson FXDXT Dyna Superglide T-Sport 2003
- Harley Davidson FXDX Dyna Super Glide Sport 2003
- Harley Davidson FXDWG Dyna Wide Glide 2003
- Harley Davidson FXDL Dyna Low Rider 2003
- Harley Davidson FXD Super Glide 2003
- Harley Davidson FLTRi Road Glide 2003
- Harley Davidson FLTR Road Glide 2003
- Harley Davidson FLSTS Heritage Springer 2003
- Harley Davidson FLSTFi Fat Boy 2003
- Harley Davidson FLSTF Fat Boy 2003
- Harley Davidson FLSTCI Heritage Softail Classic 2003
- Harley Davidson FLSTC Heritage Softail Classic 2003
- Harley Davidson FLHTi Electra Glide Standard 2003
- Harley Davidson FLHTCU-I Electra Glide Ultra Classic 2003
- Harley Davidson FLHT Electra Glide Standard 2003
- Harley Davidson FLHRi Road King 2003
- Harley Davidson FLHRCi Road King Classic 2003
- Harley Davidson FLHR Road King 2003
- Harley Davidson XL 883 Sportster Standard 2004
- Harley Davidson XL 883 L Low 2004
- Harley Davidson XL 883 C Sportster Custom 2004
- Harley Davidson XL 1200 R Sportster Roadster 2004
- Harley Davidson XL 1200 C Sportster Custom 2004
- Harley Davidson FXSTi Softail Standard 2004
- Harley Davidson FXSTDi Softail Deuce 2004
- Harley Davidson FXSTD Softail Deuce 2004
- Harley Davidson FXSTBi NightTrain 2004
- Harley Davidson FXSTB NightTrain 2004
- Harley Davidson FXST Softail Standard 2004
- Harley Davidson FXDi Dyna Super Glide 1450 2004
- Harley Davidson FXDXi Dyna Super Glide Sport 2004
- Harley Davidson FXDWGi Dyna Wide Glide 1450 2004
- Harley Davidson FXDLi Dyna Low Rider 1450 2004
- Harley Davidson FLTRi Road Glide 2004
- Harley Davidson FLTR Road Glide 2004
- Harley Davidson FLSTFi Fat Boy 2004
- Harley Davidson FLSTF Fat Boy 2004
- Harley Davidson FLSTCI Heritage Softail Classic 2004
- Harley Davidson FLSTC Heritage Softail Classic 2004
- Harley Davidson FLHTi Electra Glide Standard 2004
- Harley Davidson FLHTCi Electra Glide Classic 2004
- Harley Davidson FLHTCU-I Electra Glide Ultra Classic 2004
- Harley Davidson FLHTC Electra Glide Classic 2004
- Harley Davidson FLHT Electra Glide Standard 2004
- Harley Davidson FLHRi Road King 2004
- Harley Davidson FLHRSi Road King Custom 2004
- Harley Davidson FLHRS Road King Custom 2004
- Harley Davidson FLHRCi Road King Classic 2004
- Harley Davidson FLHR Road King 2004
- Harley Davidson XL 883 Sportster Standard 2005
- Harley Davidson XL 883 R Sportster R 2005
- Harley Davidson XL 883 L Low 2005
- Harley Davidson XL 883 C Sportster Custom 2005
- Harley Davidson XL 1200 R Sportster Roadster 2005
- Harley Davidson XL 1200 C Sportster Custom 2005
- Harley Davidson FXSTi Softail Standard 2005
- Harley Davidson FXSTDi Softail Deuce 2005
- Harley Davidson FXSTD Softail Deuce 2005
- Harley Davidson FXSTBi NightTrain 2005
- Harley Davidson FXSTB NightTrain 2005
- Harley Davidson FXST Softail Standard 2005
- Harley Davidson FXDi Dyna Super Glide 1450 2005
- Harley Davidson FXDXi Dyna Super Glide Sport 2005
- Harley Davidson FXDWGi Dyna Wide Glide 1450 2005
- Harley Davidson FXDLi Dyna Low Rider 1450 2005
- Harley Davidson FXDCi Super Glide Custom 2005
- Harley Davidson FXDC Super Glide Custom 2005
- Harley Davidson FLTRi Road Glide 2005
- Harley Davidson FLTR Road Glide 2005
- Harley Davidson FLSTSCi Springer Softail Classic 2005
- Harley Davidson FLSTSC Springer Softail Classic 2005
- Harley Davidson FLSTNi Softail Deluxe 2005
- Harley Davidson FLSTN Softail Deluxe 2005
- Harley Davidson FLSTFi Fat Boy 15th Anniversary Edition 2005
- Harley Davidson FLSTFi Fat Boy 2005
- Harley Davidson FLSTF Fat Boy 2005
- Harley Davidson FLSTCI Heritage Softail Classic 2005
- Harley Davidson FLSTC Heritage Softail Classic 2005
- Harley Davidson FLHTi Electra Glide Standard 2005
- Harley Davidson FLHTCi Electra Glide Classic 2005
- Harley Davidson FLHTCU-I Electra Glide Ultra Classic 2005
- Harley Davidson FLHTC Electra Glide Classic 2005
- Harley Davidson FLHT Electra Glide Standard 2005
- Harley Davidson FLHRi Road King 2005
- Harley Davidson FLHRSi Road King Custom 2005
- Harley Davidson FLHRS Road King Custom 2005
- Harley Davidson FLHRCi Road King Classic 2005
- Harley Davidson FLHR Road King 2005
- Harley Davidson XL 883 Sportster Standard 2006
- Harley Davidson XL 883 R Sportster R 2006
- Harley Davidson XL 883 L Low 2006
- Harley Davidson XL 883 C Sportster Custom 2006
- Harley Davidson XL 1200 R Sportster Roadster 2006
- Harley Davidson XL 1200 C Sportster Custom 2006
- Harley Davidson FXSTi Softail Standard 2006
- Harley Davidson FXSTDi Softail Deuce 2006
- Harley Davidson FXSTD Softail Deuce 2006
- Harley Davidson FXSTBi Night Train Softail 2006
- Harley Davidson FXSTB Night Train Softail 2006
- Harley Davidson FXST Softail Standard 2006
- Harley Davidson FLTRi Road Glide 2006
- Harley Davidson FLTR Road Glide 2006
- Harley Davidson FLSTi Heritage Softail 2006
- Harley Davidson FLSTSCi Springer Softail Classic 2006
- Harley Davidson FLSTSC Springer Softail Classic 2006
- Harley Davidson FLSTNi Softail Deluxe 2006
- Harley Davidson FLSTN Softail Deluxe 2006
- Harley Davidson FLSTFi Fat Boy 2006
- Harley Davidson FLSTF Fat Boy 2006
- Harley Davidson FLSTCI Heritage Softail Classic 2006
- Harley Davidson FLSTC Heritage Softail Classic 2006
- Harley Davidson FLST Heritage Softail 2006
- Harley Davidson FLHXi Street Glide 2006
- Harley Davidson FLHX Street Glide 2006
- Harley Davidson FLHTi Electra Glide Standard 2006
- Harley Davidson FLHTCi Electra Glide Classic 2006
- Harley Davidson FLHTCU-I Electra Glide Ultra Classic 2006
- Harley Davidson FLHTC Electra Glide Classic 2006
- Harley Davidson FLHT Electra Glide Standard 2006
- Harley Davidson FLHRi Road King 2006
- Harley Davidson FLHRSi Road King Custom 2006
- Harley Davidson FLHRS Road King Custom 2006
- Harley Davidson FLHRCi Road King Classic 2006
- Harley Davidson FLHR Road King 2006
- Harley Davidson XL 883 Sportster Standard 2007
- Harley Davidson XL 883 R Sportster R 2007
- Harley Davidson XL 883 L Low 2007
- Harley Davidson XL 883 C Sportster Custom 2007
- Harley Davidson XL 50 50th Anniversary Sportster (1200cc) 2007
- Harley Davidson XL 1200 R Sportster Roadster 2007
- Harley Davidson XL 1200 L Sportster Low (Spoke Wheel) 2007
- Harley Davidson XL 1200 L Sportster Low (Cast Wheel) 2007
- Harley Davidson XL 1200 C Sportster Custom 2007
- Harley Davidson FXSTi Softail Standard 2007
- Harley Davidson FXSTDi Softail Deuce 2007
- Harley Davidson FXSTD Softail Deuce 2007
- Harley Davidson FXSTC Softail Custom 2007
- Harley Davidson FXSTBi Night Train Softail 2007
- Harley Davidson FXSTB Night Train Softail 2007
- Harley Davidson FXST Softail Standard 2007
- Harley Davidson FLTRi Road Glide 2007
- Harley Davidson FLTR Road Glide 2007
- Harley Davidson FLSTSCi Springer Softail Classic 2007
- Harley Davidson FLSTSC Springer Softail Classic 2007
- Harley Davidson FLSTNi Softail Deluxe 2007
- Harley Davidson FLSTN Softail Deluxe 2007
- Harley Davidson FLSTFi Fat Boy 2007
- Harley Davidson FLSTF Fat Boy 2007
- Harley Davidson FLSTCI Heritage Softail Classic 2007
- Harley Davidson FLSTC Heritage Softail Classic 2007
- Harley Davidson FLHXi Street Glide 2007
- Harley Davidson FLHX Street Glide 2007
- Harley Davidson FLHTi Electra Glide Standard 2007
- Harley Davidson FLHTCi Electra Glide Classic 2007
- Harley Davidson FLHTCU-I Electra Glide Ultra Classic 2007
- Harley Davidson FLHTC Electra Glide Classic 2007
- Harley Davidson FLHT Electra Glide Standard 2007
- Harley Davidson FLHRi Road King 2007
- Harley Davidson FLHRSi Road King Custom 2007
- Harley Davidson FLHRS Road King Custom 2007
- Harley Davidson FLHRCi Road King Classic 2007
- Harley Davidson FLHR Road King 2007
- Harley Davidson XL 883 Sportster Standard 2008
- Harley Davidson XL 883 R Sportster R 2008
- Harley Davidson XL 883 L Low 2008
- Harley Davidson XL 883 C Sportster Custom 2008
- Harley Davidson XL 1200 R Sportster Roadster 2008
- Harley Davidson XL 1200 N Nightster (Spoke Wheel) 2008
- Harley Davidson XL 1200 L Sportster Low (Spoke Wheel) 2008
- Harley Davidson XL 1200 L Sportster Low (Cast Wheel) 2008
- Harley Davidson XL 1200 C Sportster Custom 2008
- Harley Davidson FXSTC Softail Custom (Spoke Wheel) 2008
- Harley Davidson FXSTB Night Train Softail (Spoke Wheel) 2008
- Harley Davidson FXST Softail Standard 2008
- Harley Davidson FXCWC Rocker C (Cast Wheel) 2008
- Harley Davidson FXCW Rocker (Cast Wheel) 2008
- Harley Davidson FLSTSB Softail Cross Bones 2008
- Harley Davidson FLSTN Softail Deluxe (Spoke Wheel) 2008
- Harley Davidson FLSTF Fat Boy 2008
- Harley Davidson FLSTC Heritage Softail Classic 2008
- Harley Davidson XL 883 R Sportster R 2009
- Harley Davidson XL 883 N Iron 2009
- Harley Davidson XL 883 L Low 2009
- Harley Davidson XL 883 C Sportster Custom 2009
- Harley Davidson XL 1200 N Nightster (Spoke Wheel) 2009
- Harley Davidson XL 1200 L Sportster Low (Spoke Wheel) 2009
- Harley Davidson XL 1200 L Sportster Low (Cast Wheel) 2009
- Harley Davidson XL 1200 C Sportster Custom 2009
- Harley Davidson FXSTC Softail Custom (Spoke Wheel) 2009
- Harley Davidson FXSTB Night Train Softail (Spoke Wheel) 2009
- Harley Davidson FXST Softail Standard 2009
- Harley Davidson FXCWC Rocker C (Cast Wheel) 2009
- Harley Davidson FXCW Rocker (Cast Wheel) 2009
- Harley Davidson FLSTSB Softail Cross Bones 2009
- Harley Davidson FLSTN Softail Deluxe (Spoke Wheel) 2009
- Harley Davidson FLSTF Fat Boy 2009
- Harley Davidson FLSTC Heritage Softail Classic 2009
- Harley Davidson XL 883 R Sportster R 2010
- Harley Davidson XL 883 R Roadster 2010
- Harley Davidson XL 883 N Iron 2010
- Harley Davidson XL 883 L Low 2010
- Harley Davidson XL 883 C Sportster Custom 2010
- Harley Davidson XL 1200 X Forty Eight 2010
- Harley Davidson XL 1200 N Nightster (Spoke Wheel) 2010
- Harley Davidson XL 1200 L Sportster Low (Spoke Wheel) 2010
- Harley Davidson XL 1200 L Sportster Low (Cast Wheel) 2010
- Harley Davidson XL 1200 C Sportster Custom 2010
- Harley Davidson FXSTC Softail Custom (Spoke Wheel) 2010
- Harley Davidson FXST Softail Standard 2010
- Harley Davidson FXCWC Rocker C (Cast Wheel) 2010
- Harley Davidson FLSTSB Softail Cross Bones 2010
- Harley Davidson FLSTN Softail Deluxe (Spoke Wheel) 2010
- Harley Davidson FLSTFB Fat Boy Lo 2010
- Harley Davidson FLSTF Fat Boy 2010
- Harley Davidson FLSTC Heritage Softail Classic 2010
- Harley Davidson XL 883 R Sportster R 2011
- Harley Davidson XL 883 R Roadster (Cast Wheel) 2011
- Harley Davidson XL 883 N Iron (Cast Wheel) 2011
- Harley Davidson XL 883 L Superlow 2011
- Harley Davidson XL 1200 X Forty Eight 2011
- Harley Davidson XL 1200 N Nightster (Spoke Wheel) 2011
- Harley Davidson XL 1200 L Sportster Low (Spoke Wheel) 2011
- Harley Davidson XL 1200 L Sportster Low (Cast Wheel) 2011
- Harley Davidson XL 1200 C Sportster Custom (Spoke Wheel) 2011
- Harley Davidson XL 1200 C Sportster Custom (Cast Wheel) 2011
- Harley Davidson FXST Softail Standard 2011
- Harley Davidson FXS Blackline 2011
- Harley Davidson FXCWC Rocker C (Cast Wheel) 2011
- Harley Davidson FLSTSB Softail Cross Bones 2011
- Harley Davidson FLSTN Softail Deluxe (Spoke Wheel) 2011
- Harley Davidson FLSTFB Fat Boy Lo 2011
- Harley Davidson FLSTF Fat Boy 2011
- Harley Davidson FLSTC Heritage Softail Classic 2011
- Harley Davidson XL 883 R Sportster R 2012
- Harley Davidson XL 883 R Roadster (Cast Wheel) 2012
- Harley Davidson XL 883 N Iron (Cast Wheel) 2012
- Harley Davidson XL 883 L Superlow 2012
- Harley Davidson XL 1200 X Forty Eight 2012
- Harley Davidson XL 1200 V SeventyTwo 2012
- Harley Davidson XL 1200 N Nightster (Spoke Wheel) 2012
- Harley Davidson XL 1200 C Sportster Custom (Spoke Wheel) 2012
- Harley Davidson XL 1200 C Sportster Custom (Cast Wheel) 2012
- Harley Davidson FXST Softail Standard 2012
- Harley Davidson FXS Blackline 2012
- Harley Davidson FLSTN Softail Deluxe (Spoke Wheel) 2012
- Harley Davidson FLSTFB Fat Boy Lo 2012
- Harley Davidson FLSTF Fat Boy 2012
- Harley Davidson FLSTC Heritage Softail Classic 2012
- Harley Davidson FLS Softail Slim 2012
- Harley Davidson XL 883 R Sportster R 2013
- Harley Davidson XL 883 R Roadster (Cast Wheel) 2013
- Harley Davidson XL 883 N Iron (Cast Wheel) 2013
- Harley Davidson XL 883 L Superlow 2013
- Harley Davidson XL 1200 X Forty Eight 2013
- Harley Davidson XL 1200 V SeventyTwo 2013
- Harley Davidson XL 1200 C Sportster Custom (Spoke Wheel) 2013
- Harley Davidson XL 1200 C Sportster Custom (Cast Wheel) 2013
- Harley Davidson FXST Softail Standard 2013
- Harley Davidson FXSB Breakout 2013
- Harley Davidson FXS Blackline 2013
- Harley Davidson FLSTN Softail Deluxe (Spoke Wheel) 2013
- Harley Davidson FLSTFB Fat Boy Lo 2013
- Harley Davidson FLSTF Fat Boy 2013
- Harley Davidson FLSTC Heritage Softail Classic 2013
- Harley Davidson FLS Softail Slim 2013
- Harley Davidson FXST Softail Standard 2014
- Harley Davidson FXSB Breakout 2014
- Harley Davidson FLSTN Softail Deluxe (Spoke Wheel) 2014
- Harley Davidson FLSTFB Fat Boy Lo 2014
- Harley Davidson FLSTF Fat Boy 2014
- Harley Davidson FLSTC Heritage Softail Classic 2014
- Harley Davidson FLS Softail Slim 2014
