Product description

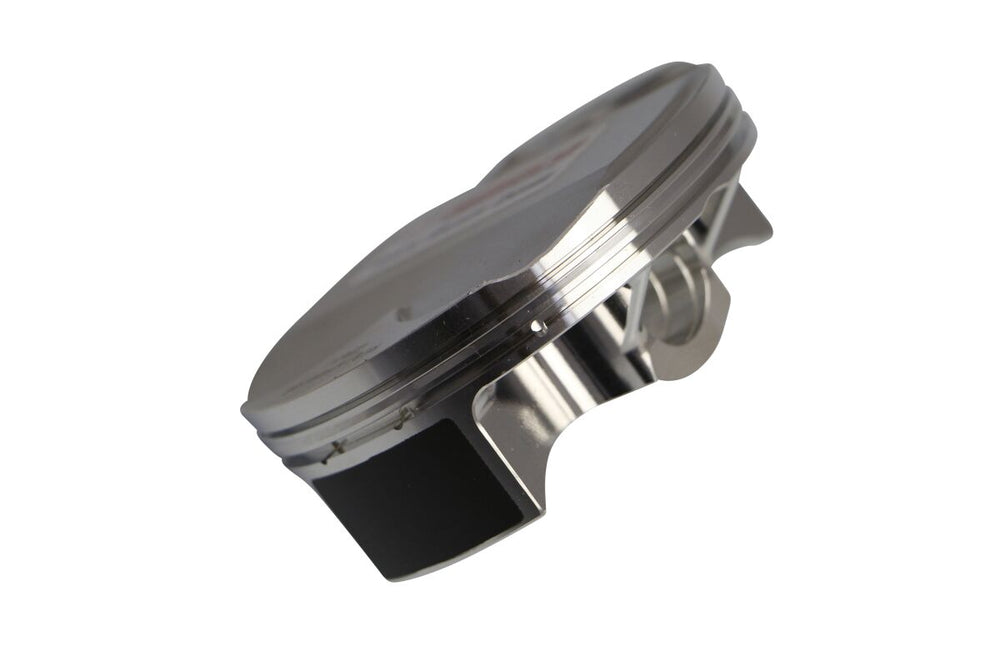

The Wiseco Racer Elite Piston Kit - KTM SXF350 2016-18 is part of the latest performance part range from Wiseco.

Racer Elite? 4-Stroke Series Pistons.

Features:

• RD developed to provide dyno-proven power gains
• Asymmetric skirt design for improved wear and even loading on major thrust skirt
• Precision fit ring; custom-lapped compression ring for improved power
• 100% billet machined for superior strength-to-weight ratio and optimized fit
• High compression (14:1 for 450cc, 14.5:1 for 250cc) for maximum torque and throttle response
• Dome design improves flame travel to maximize air/ fuel burn efficiency
• DLC-coated piston pin reduces friction and improves scuff resistance
• Enhanced pin oiling for improved lubrication and reduced friction
• Pressure seal groove reduces ring lifting and power loss
• ArmorGlide? skirt coating reduces friction for quieter operation, improved scuff resistance
• Pistons include rings, pin, and circlips

Spec:

• BORE SIZE: 88,00 mm
• COMPRESSION RATIO: 14,5:1
• STYLE: Forged High Compression
• UNITS: Kit
• PRODUCT NAME: Piston Kit
• ENGINE TYPE: 4-Stroke
• STROKE LENGTH: 57,50 mm
• PISTON MATERIAL: Aluminium| Forged
• PISTON HEAD SHAPE: Domed
• SKIRT COATING: ArmorGlide?
• RING MATERIAL: Steel

To fit:

• KTM SX-F 350 2016
• KTM SX-F 350 2017
• KTM SX-F 350 2018

Manufacturer part number: WRE816M08800

View all Wiseco parts. View all Engine parts.

Contents

Your package will include the following:

• 1 X Wiseco Racer Elite Piston Kit - KTM SXF350 2016-18
