Product description

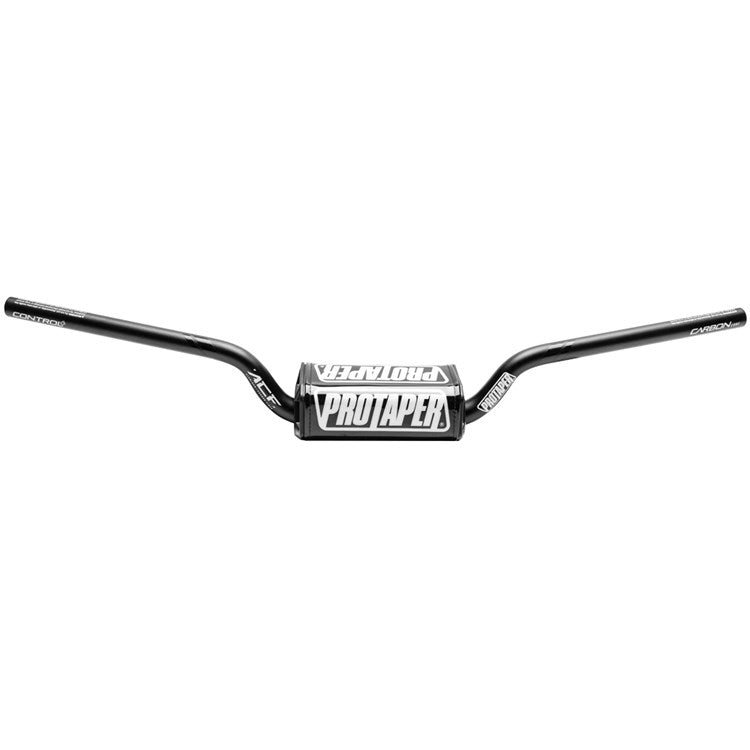

The Pro Taper ACF 800mm Handlebars - SX Race Bend - Black is part of the latest performance motocross and enduro hardware range from Pro Taper.

Pro Taper, a motocross and enduro icon, crafts high-performance handlebars, grips, footpegs, and more. Renowned for their strength, lightweight construction, and rider comfort, their handlebars, like the iconic Taperwall design, revolutionized the industry. Grips like the waffle and micro waffle offer superior control and shock absorption, while footpegs enhance grip and stability.

From casual riders to pros, Pro Taper parts elevate the ride, offering durability and performance across the toughest terrains.

Unlike traditional carbon fibre fabric, unidirectional carbon fibre is unwoven. The fibres run parallel to one another in a single direction. This allows the fibres to lay completely flat with no gaps between them. These densely concentrated fibres provide unidirectional carbon fibre with maximum longitudinal tensile strength?typically twice that of a traditional carbon fibre weave.

ProTaper? ACF Handlebars use a revolutionary unidirectional carbon fibre core system to reinforce the aluminium tubing. The added strength allows the aluminium tubing wall thickness to be safely reduced in key areas, greatly decreasing weight and producing unrivalled impact-absorbing flex.

The four-stroke era has pushed motocross technology forward at an unprecedented pace. As a result, handlebars are quickly becoming crowded with hydraulic clutches, ignition mapping switches, electric starters, and more. With their innovative Control+ design, ProTaper? ACF Handlebars are the first to Redirect URL this growing concern.

Control+ features 220 millimetres of control space?up to 40 millimetres more than conventional handlebar designs.

Features:

• The first carbon fibre-reinforced aluminium handlebar for motocross.
• Revolutionary Carbon Core system uses lightweight and exceptionally strong
• unidirectional carbon fibre cores to reinforce the aluminium tubing and safely reduce its wall thickness in key areas.
• Precise reductions in the aluminium tubing wall thickness significantly decrease weight and produce unrivalled impact-absorbing flex.
• Up to 20% lighter than conventional designs.
• 7000 series aluminium alloy offers superior tensile, yield, and fatigue strengths.
• Advanced shot peened, stress-relieved, and anodized finish delivers exceptional durability.
• Innovative Control+ design brings motocross handlebars into the modern era, providing more space for controls, mapping switches, and electric starters than ever before.
• Width: 800mm
• Height: 87mm
• Rise: 51mm
• Clamp area: 150mm
• Control area: 220mm
• Sweep: 54

Please note: Do not cut, disassemble, or otherwise modify the handlebar. Do not install aftermarket end plugs or wrap-around handguards that mount using internal expansion-type fasteners.

Manufacturer part number: 022083

View all Pro Taper. View all Handlebars and foot pegs.

Contents

Your package will include the following:

• 1 X Pro Taper ACF 800mm Handlebars - SX Race Bend - Black
