Product description

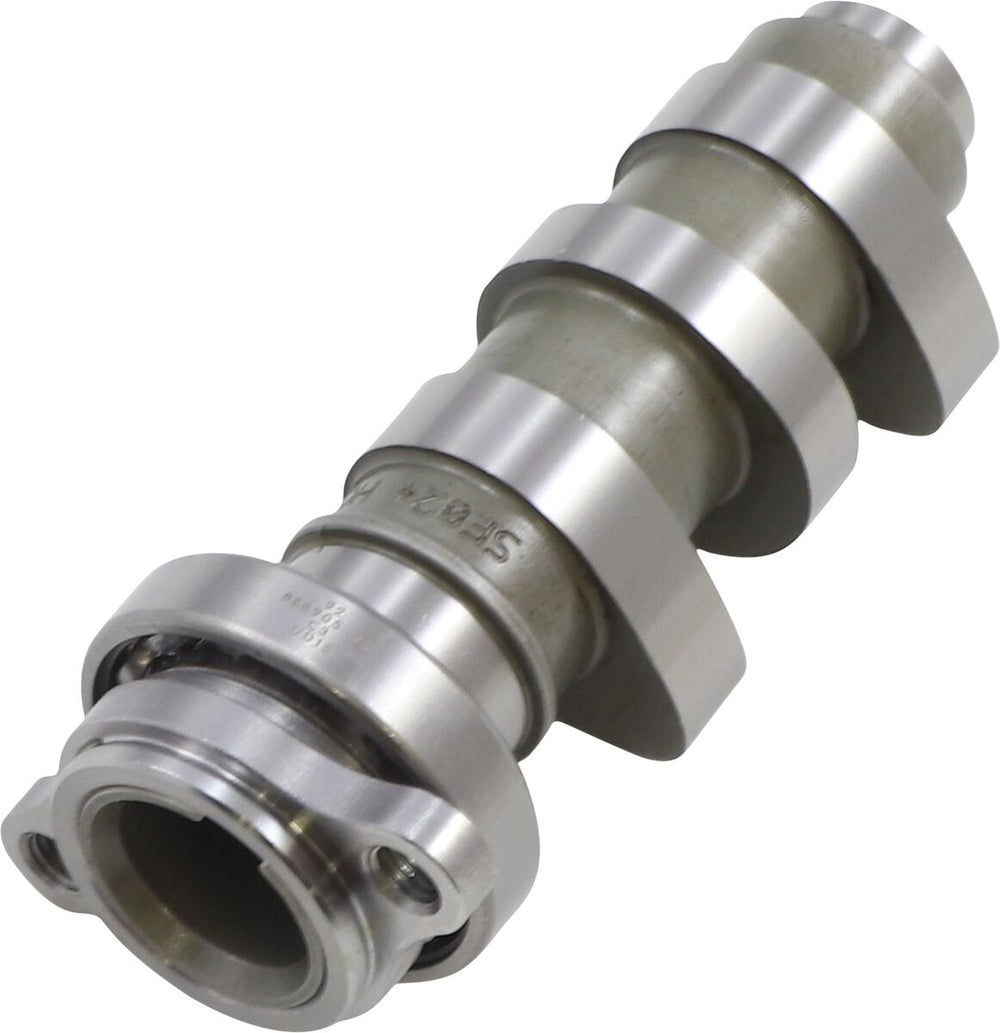

The Camshaft Stage 1 System is part of the latest collection from Hot Cams.

Features:

• Computer Numerical Control (CNC) from 8620 billet steel and case harden
• Designed and dyno proven in the USA
• Engineered by using valvetrain software
• Adds a 5%-10% power gain
• Select cams feature Hot Cams Improved Throttle Design (I.T.R.) technology; these cams improve throttle response throughout the entire rpm range while providing excellent power gains through the mid-range and top-end
• Designed for mid to top end gains.
• Engineered to be drop in cams that use stock valve springs (unless otherwise noted).
Mid-range and top-end increase. Improved throttle response. For single cam engine. Uses stock auto-decompression mechanism. Exhaust Valve Lash: 0.280 mm. Intake Valve Lash: 0.150 mm.

Specifications:

• Application: Exhaust| Intake
• Exhaust Duration: 270°
• Exhaust Lift: 8.80 mm
• Exhaust Lobe Centerline: 104.500°
• Intake Duration: 248°
• Intake Lift: 10.10 mm
• Intake Lobe Centerline: 112°
• Product Name: Camshaft
• Type: Stage 2
• Units: Each

To fit:

• HONDA CRF 450 R 2002 All Models
• HONDA CRF 450 R 2003 All Models
• HONDA CRF 450 R 2004 All Models
• HONDA CRF 450 R 2005 All Models
• HONDA CRF 450 R 2006 All Models
• HONDA CRF 450 X 2005 Enduro All Models
• HONDA CRF 450 X 2006 Enduro All Models
• HONDA CRF 450 X 2007 Enduro All Models
• HONDA TRX 450 ER 2006 Sportrax E-Start All Models
• HONDA TRX 450 ER 2007 Sportrax E-Start All Models
• HONDA TRX 450 R 2004 Sportrax All Models
• HONDA TRX 450 R 2005 Sportrax All Models
• HONDA TRX 450 R 2006 Sportrax K-Start All Models
• HONDA TRX 450 R 2007 Sportrax K-Start All Models
• HONDA TRX 450 R 2008 Sportrax K-Start All Models
• HONDA TRX 450 R 2009 Sportrax K-Start All Models

Manufacturer part number: 1024-2

View all Hot Cams. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Hot CAMS Camshaft Stage 1 System
