Product description

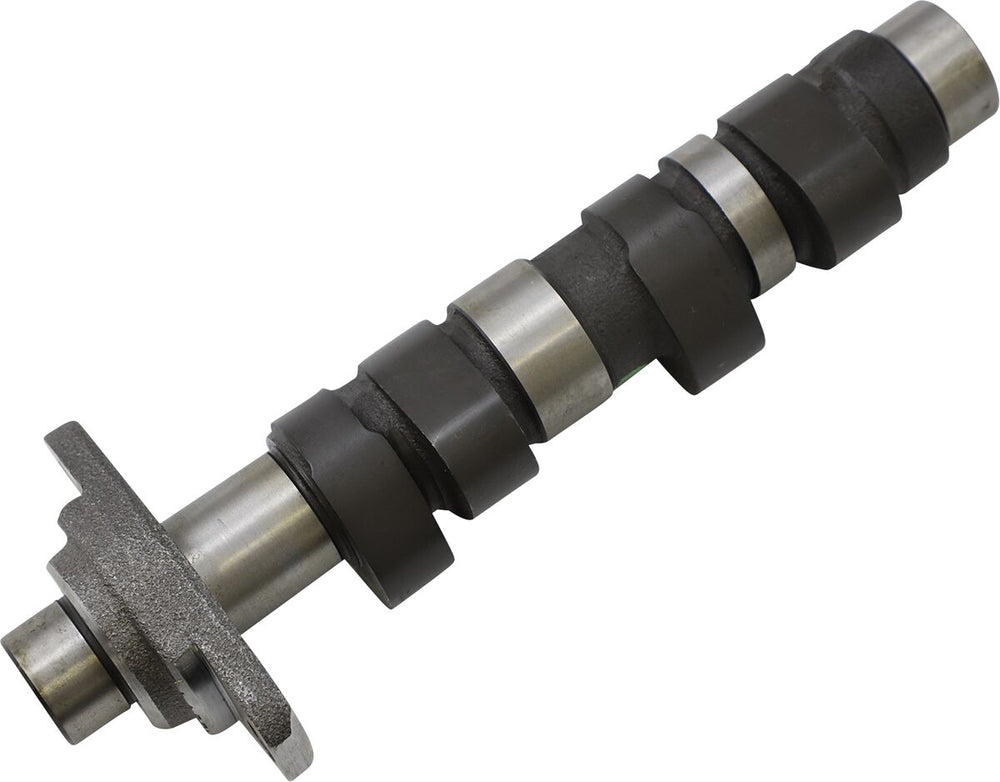

The Camshaft Stage 1 System is part of the latest collection from Hot Cams.

Features:

• Computer Numerical Control (CNC) from 8620 billet steel and case harden
• Designed and dyno proven in the USA
• Engineered by using valvetrain software
• Adds a 5%-10% power gain
• Select cams feature Hot Cams Improved Throttle Design (I.T.R.) technology; these cams improve throttle response throughout the entire rpm range while providing excellent power gains through the mid-range and top-end
• Designed for mid to top end gains.
• Engineered to be drop in cams that use stock valve springs (unless otherwise noted).
Slight mid range gain and top end power increase. Does not use an auto-decompression mechanism. Stock starter is sufficient. For single cam engine. Uses stock valve springs and rockers. Intake Valve Lash: 0.130 mm. Exhaust Valve Lash: 0.150 mm.

Specifications:

• Application: Exhaust| Intake
• Exhaust Duration: 248.500°
• Exhaust Lift: 8.90 mm
• Exhaust Lobe Centerline: 104.250°
• Intake Duration: 254°
• Intake Lift: 9.00 mm
• Intake Lobe Centerline: 106°
• Product Name: Camshaft
• Type: Stage 2
• Units: Each

To fit:

• HONDA TRX 400 EX 1999 Fourtrax All Models
• HONDA TRX 400 EX 2000 Fourtrax All Models
• HONDA TRX 400 EX 2001 Fourtrax All Models
• HONDA TRX 400 EX 2002 Sportrax All Models
• HONDA TRX 400 EX 2003 Sportrax All Models
• HONDA TRX 400 EX 2004 Sportrax All Models
• HONDA TRX 400 EX 2005 Sportrax All Models
• HONDA TRX 400 EX 2006 Sportrax All Models
• HONDA TRX 400 EX 2007 Sportrax All Models
• HONDA TRX 400 EX 2008 Sportrax All Models
• HONDA TRX 400 X 2009 Sportrax All Models
• HONDA TRX 400 X 2010 Sportrax All Models
• HONDA TRX 400 X 2011 Sportrax All Models
• HONDA TRX 400 X 2012 Sportrax All Models
• HONDA TRX 400 X 2013 Sportrax All Models
• HONDA TRX 400 X 2014 Sportrax All Models
• HONDA XR 400 R 1996 All Models
• HONDA XR 400 R 1997 All Models
• HONDA XR 400 R 1998 All Models
• HONDA XR 400 R 1999 All Models
• HONDA XR 400 R 2000 All Models
• HONDA XR 400 R 2001 All Models
• HONDA XR 400 R 2002 All Models
• HONDA XR 400 R 2003 All Models
• HONDA XR 400 R 2004 All Models

Manufacturer part number: 1043-2

View all Hot Cams. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Hot CAMS Camshaft Stage 1 System
