Product description

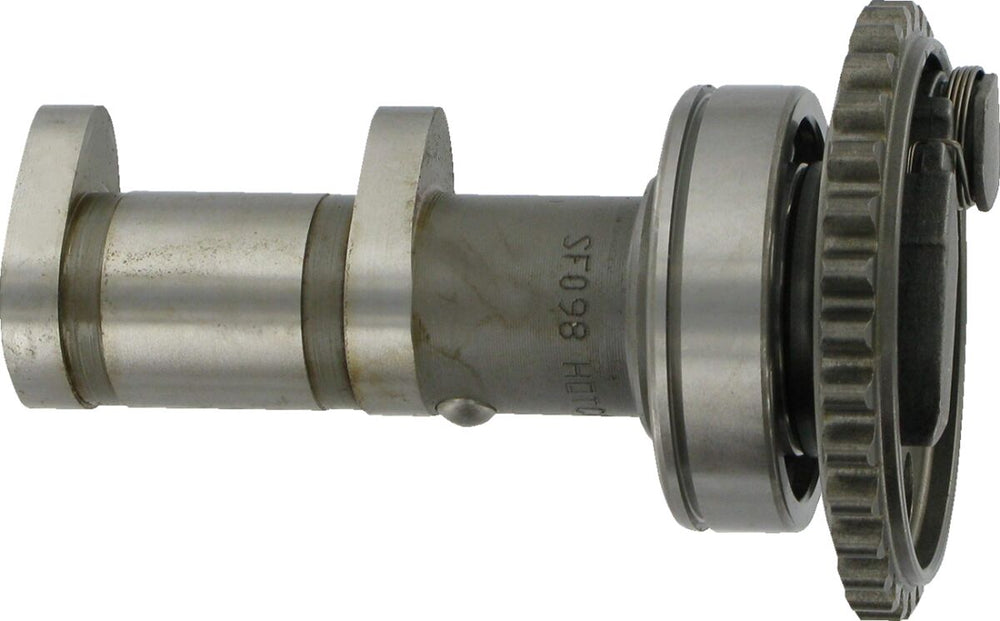

The Camshaft Intake Stage 1 is part of the latest collection from Hot Cams.

Features:

• Adds 5%-10% power gain
• Designed and dyno proven in the USA
• Engineered by utilizing state-of-the-art valvetrain software
• CNC machined from 8620 billet, case hardened steel for an exact fit and lobe profile
• Select cams feature Hot Cams Improved Throttle Design (ITR) technology; these cams improve throttle response throughout the entire rpm range while providing excellent power gains through the mid-range and top-end
• For low end torque.
• Made to be drop-in cams that use stock valve springs (unless noted).
Improved mid range gain with great top end gain and over rev. OE fuel mapping is acceptable, but could be fine tuned. For dual cam motor. Intake Valve Lash: 0.150 mm.

Specifications:

• Application: Intake
• Intake Duration: 249°
• Intake Lift: 9.55 mm
• Intake Lobe Centerline: 105°
• Product Name: Camshaft
• Type: Stage 1
• Units: Each

To fit:

• SUZUKI LT-R 450 2X4 2006 Quadracer All Models
• SUZUKI LT-R 450 2X4 2007 Quadracer All Models
• SUZUKI LT-R 450 2X4 2008 Quadracer All Models
• SUZUKI LT-R 450 2X4 2009 Quadracer All Models

Manufacturer part number: 2072-1IN

View all Hot Cams. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Hot CAMS Camshaft Intake Stage 1
