Product description

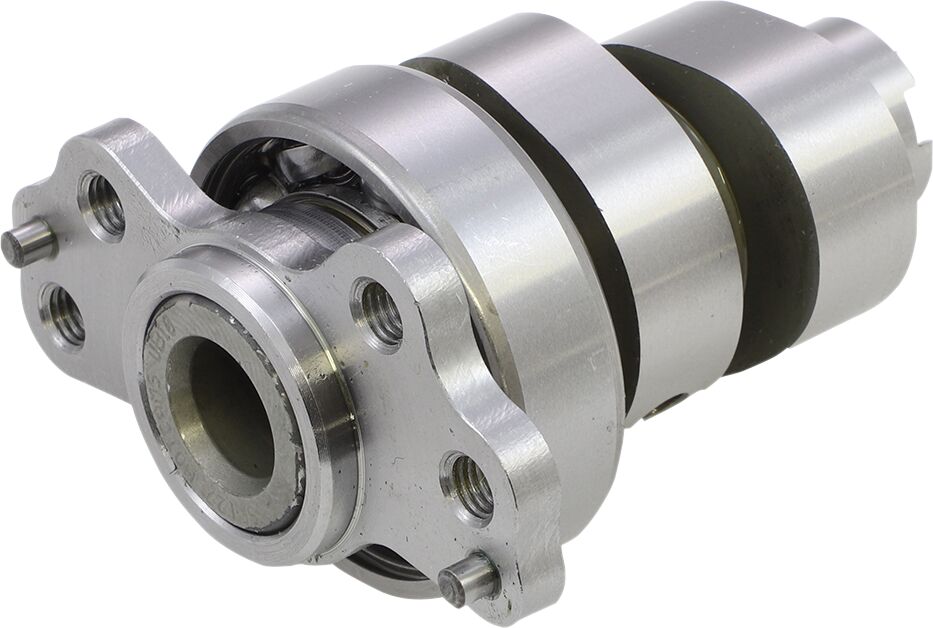

The Camshaft Stage 1 System is part of the latest collection from Hot Cams.

Features:

• Computer Numerical Control (CNC) from 8620 billet steel and case harden
• Designed and dyno proven in the USA
• Engineered by using valvetrain software
• Adds a 5%-10% power gain
• Select cams feature Hot Cams Improved Throttle Design (I.T.R.) technology; these cams improve throttle response throughout the entire rpm range while providing excellent power gains through the mid-range and top-end
• Designed for mid to top end gains.
• Engineered to be drop in cams that use stock valve springs (unless otherwise noted).
Excellent top end and great over rev. Uses stock valve springs and rockers. Uses stock decompression mechanism. For single cam engine. Intake Valve Lash: 0.100 mm. Exhaust Valve Lash: 0.180 mm.

Specifications:

• Application: Exhaust| Intake
• Exhaust Duration: 243°
• Exhaust Lift: 8.60 mm
• Exhaust Lobe Centerline: 102.500°
• Intake Duration: 260°
• Intake Lift: 10.30 mm
• Intake Lobe Centerline: 111°
• Product Name: Camshaft
• Type: Stage 2
• Units: Each

To fit:

• YAMAHA YFM 700 RSE 2009 Raptor Special Edition American Models
• YAMAHA YFM 700 RSE 2010 Raptor Special Edition American Models
• YAMAHA YFM 700 RSE 2011 Raptor Special Edition American Models
• YAMAHA YFM 700 RSE 2012 Raptor Special Edition American Models
• YAMAHA YFM 700 RSE 2013 Raptor Special Edition American Models
• YAMAHA YFM 700 RSE 2014 Raptor Special Edition American Models
• YAMAHA YFM 700 RSE 2014 Special Edition European Models
• YAMAHA YFM 700 RSE 2015 Raptor Special Edition American Models
• YAMAHA YFM 700 RSE 2016 Raptor Special Edition American Models
• YAMAHA YFM 700 RSE 2017 Raptor Special Edition American Models
• YAMAHA YFM 700 RSE 2018 Raptor Special Edition American Models
• YAMAHA YFM 700 RSE 2019 Raptor Special Edition All Models
• YAMAHA YFM 700 RSE 2020 Raptor Special Edition All Models
• YAMAHA YFM 700 RSE 2021 Raptor Special Edition All Models
• YAMAHA YFM 700 RSE 2022 Raptor Special Edition All Models
• YAMAHA YFM 700 RSE 2023 Raptor Special Edition All Models
• YAMAHA YFM 700 RSE 2024 Raptor Special Edition All Models
• YAMAHA YFM 700 R 2009 Raptor American Models
• YAMAHA YFM 700 R 2010 Raptor American Models
• YAMAHA YFM 700 R 2011 Raptor American Models
• YAMAHA YFM 700 R 2012 Raptor American Models
• YAMAHA YFM 700 R 2013 Raptor American Models
• YAMAHA YFM 700 R 2014 Raptor American Models
• YAMAHA YFM 700 R 2014 European Models
• YAMAHA YFM 700 R 2015 Raptor American Models
• YAMAHA YFM 700 R 2016 Raptor American Models
• YAMAHA YFM 700 R 2017 Raptor American Models
• YAMAHA YFM 700 R 2018 Raptor American Models
• YAMAHA YFM 700 R 2019 Raptor All Models
• YAMAHA YFM 700 R 2020 Raptor All Models
• YAMAHA YFM 700 R 2021 Raptor All Models
• YAMAHA YFM 700 R 2022 Raptor All Models
• YAMAHA YFM 700 R 2023 Raptor All Models
• YAMAHA YFM 700 R 2024 Raptor All Models
• YAMAHA YFM 700 2013 Raptor American Models
• YAMAHA YFM 700 2014 Raptor American Models
• YAMAHA YFM 700 2015 Raptor American Models

Manufacturer part number: 4132-2

View all Hot Cams. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Hot CAMS Camshaft Stage 1 System
