Product description

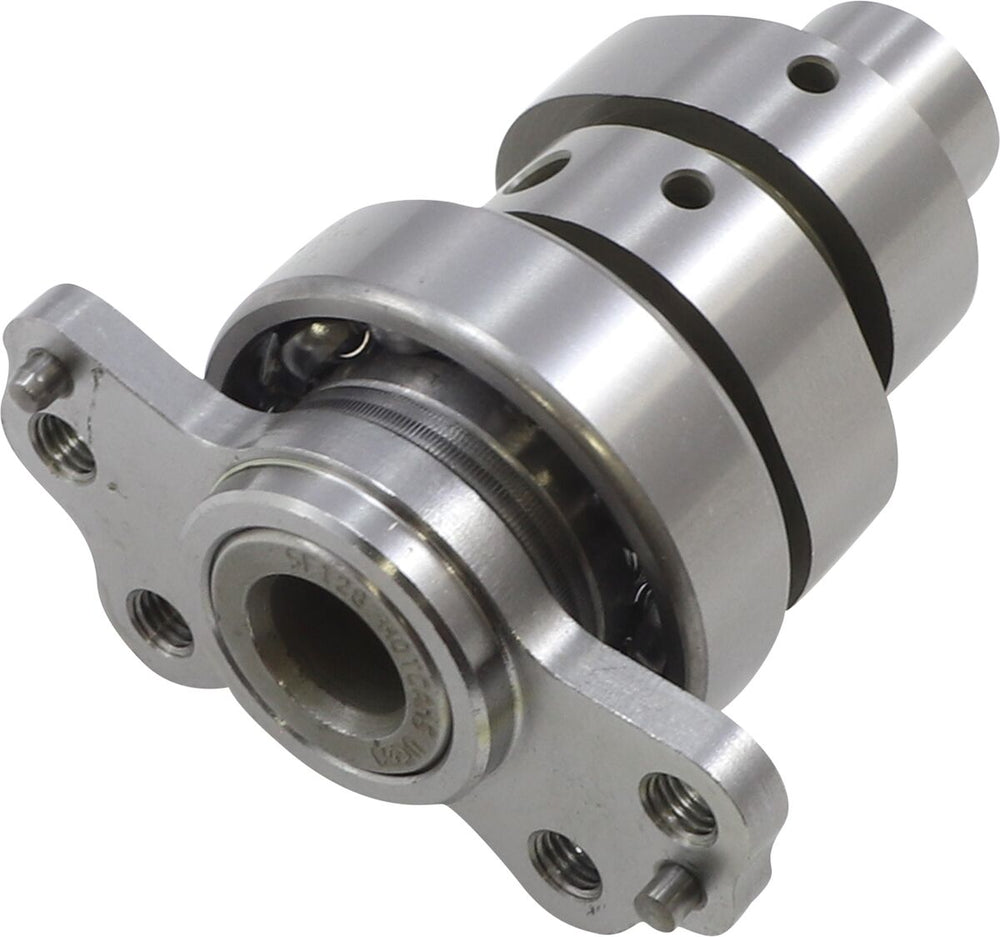

The Camshaft Stage 3 is part of the latest collection from Hot Cams.

Features:

• Computer Numerical Control (CNC) from 8620 billet steel and case harden
• Designed and dyno proven in the USA
• Engineered by using valvetrain software
• Adds a 5%-10% power gain
• Designed for peak top end horsepower
• Engineered to be drop in cams that use stock valve springs (unless otherwise noted).
• Select cams feature Hot Cams Improved Throttle Design (I.T.R.) technology; these cams improve throttle response throughout the entire rpm range while providing excellent power gains through the mid-range and top-end.
Drastically improves top-end with over rev, with almost no loss in high rpm power. Uses stock valve springs and rockers. Uses stock auto-decompression mechanism. For single cam engines. Intake Valve Lash: 0.100 mm Exhaust Valve Lash: 0.180 mm.

Specifications:

• Application: Exhaust| Intake
• Exhaust Duration: 255°
• Exhaust Lift: 8.60 mm
• Exhaust Lobe Centerline: 102°
• Intake Duration: 268°
• Intake Lift: 10.30 mm
• Intake Lobe Centerline: 112.500°
• Product Name: Camshaft
• Type: Stage 3
• Units: Each

To fit:

• YAMAHA YFM 700 RSE 2009 Raptor Special Edition American Models
• YAMAHA YFM 700 RSE 2010 Raptor Special Edition American Models
• YAMAHA YFM 700 RSE 2011 Raptor Special Edition American Models
• YAMAHA YFM 700 RSE 2012 Raptor Special Edition American Models
• YAMAHA YFM 700 RSE 2013 Raptor Special Edition American Models
• YAMAHA YFM 700 RSE 2014 Raptor Special Edition American Models
• YAMAHA YFM 700 RSE 2014 Special Edition European Models
• YAMAHA YFM 700 RSE 2015 Raptor Special Edition American Models
• YAMAHA YFM 700 RSE 2016 Raptor Special Edition American Models
• YAMAHA YFM 700 RSE 2017 Raptor Special Edition American Models
• YAMAHA YFM 700 RSE 2018 Raptor Special Edition American Models
• YAMAHA YFM 700 RSE 2019 Raptor Special Edition All Models
• YAMAHA YFM 700 RSE 2020 Raptor Special Edition All Models
• YAMAHA YFM 700 RSE 2021 Raptor Special Edition All Models
• YAMAHA YFM 700 RSE 2022 Raptor Special Edition All Models
• YAMAHA YFM 700 RSE 2023 Raptor Special Edition All Models
• YAMAHA YFM 700 RSE 2024 Raptor Special Edition All Models
• YAMAHA YFM 700 R 2009 Raptor American Models
• YAMAHA YFM 700 R 2010 Raptor American Models
• YAMAHA YFM 700 R 2011 Raptor American Models
• YAMAHA YFM 700 R 2012 Raptor American Models
• YAMAHA YFM 700 R 2013 Raptor American Models
• YAMAHA YFM 700 R 2014 Raptor American Models
• YAMAHA YFM 700 R 2014 European Models
• YAMAHA YFM 700 R 2015 Raptor American Models
• YAMAHA YFM 700 R 2016 Raptor American Models
• YAMAHA YFM 700 R 2017 Raptor American Models
• YAMAHA YFM 700 R 2018 Raptor American Models
• YAMAHA YFM 700 R 2019 Raptor All Models
• YAMAHA YFM 700 R 2020 Raptor All Models
• YAMAHA YFM 700 R 2021 Raptor All Models
• YAMAHA YFM 700 R 2022 Raptor All Models
• YAMAHA YFM 700 R 2023 Raptor All Models
• YAMAHA YFM 700 R 2024 Raptor All Models
• YAMAHA YFM 700 2013 Raptor American Models
• YAMAHA YFM 700 2014 Raptor American Models
• YAMAHA YFM 700 2015 Raptor American Models

Manufacturer part number: 4133-3

View all Hot Cams. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Hot CAMS Camshaft Stage 3
