Product description

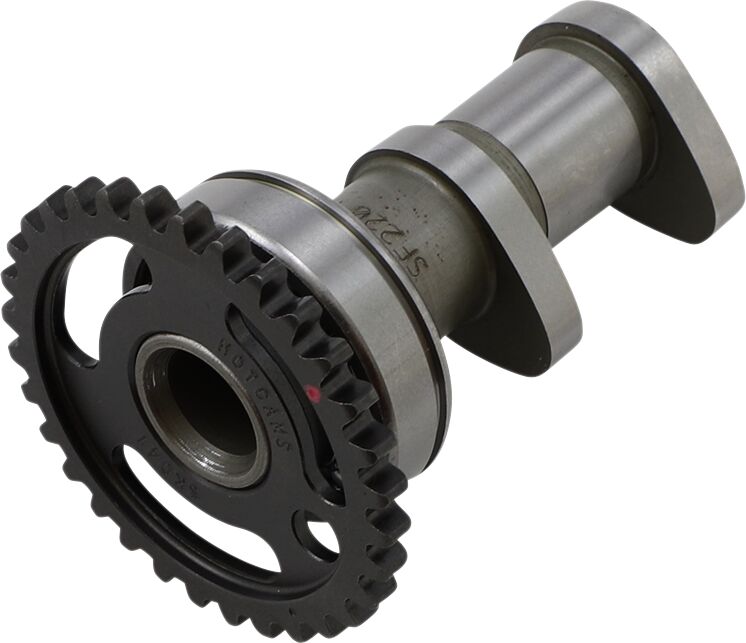

The Camshaft Intake Stage 1 System is part of the latest collection from Hot Cams.

Features:

• Adds 5%-10% power gain
• Designed and dyno proven in the USA
• Engineered by utilizing state-of-the-art valvetrain software
• CNC machined from 8620 billet, case hardened steel for an exact fit and lobe profile
• Select cams feature Hot Cams Improved Throttle Design (ITR) technology; these cams improve throttle response throughout the entire rpm range while providing excellent power gains through the mid-range and top-end
• For mid to top-end gains.
• Made to be drop-in cams that use stock valve springs (unless noted).
Use with 0925-0664 to provide improved torque at all rpm, with improved peak torque and increased peak horsepower. Designed with I.T.R. technology. For dual cam engine. Intake Valve Lash: 0.100 mm.

Specifications:

• Application: Intake
• Intake Duration: 252°
• Intake Lift: 9.300 mm
• Intake Lobe Centerline: 109°
• Product Name: Camshaft
• Type: Stage 2
• Units: Each

To fit:

• KAWASAKI KX 250 F 2011 American Models
• KAWASAKI KX 250 F 2011 European Models
• KAWASAKI KX 250 F 2012 American Models
• KAWASAKI KX 250 F 2012 European Models
• KAWASAKI KX 250 F 2013 American Models
• KAWASAKI KX 250 F 2013 European Models
• KAWASAKI KX 250 F 2014 American Models
• KAWASAKI KX 250 F 2014 European Models
• KAWASAKI KX 250 F 2015 American Models
• KAWASAKI KX 250 F 2015 European Models
• KAWASAKI KX 250 F 2016 American Models
• KAWASAKI KX 250 F 2016 European Models

Manufacturer part number: 2220-2IN

View all Hot Cams. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Hot CAMS Camshaft Intake Stage 1 System
