Product description

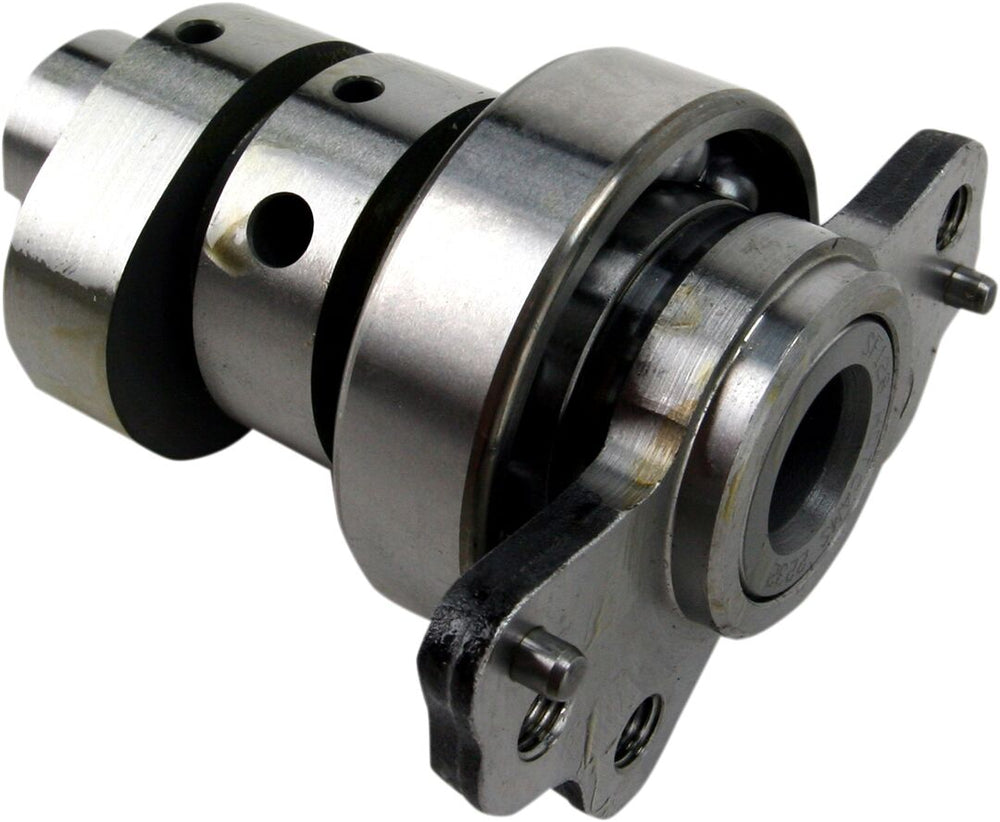

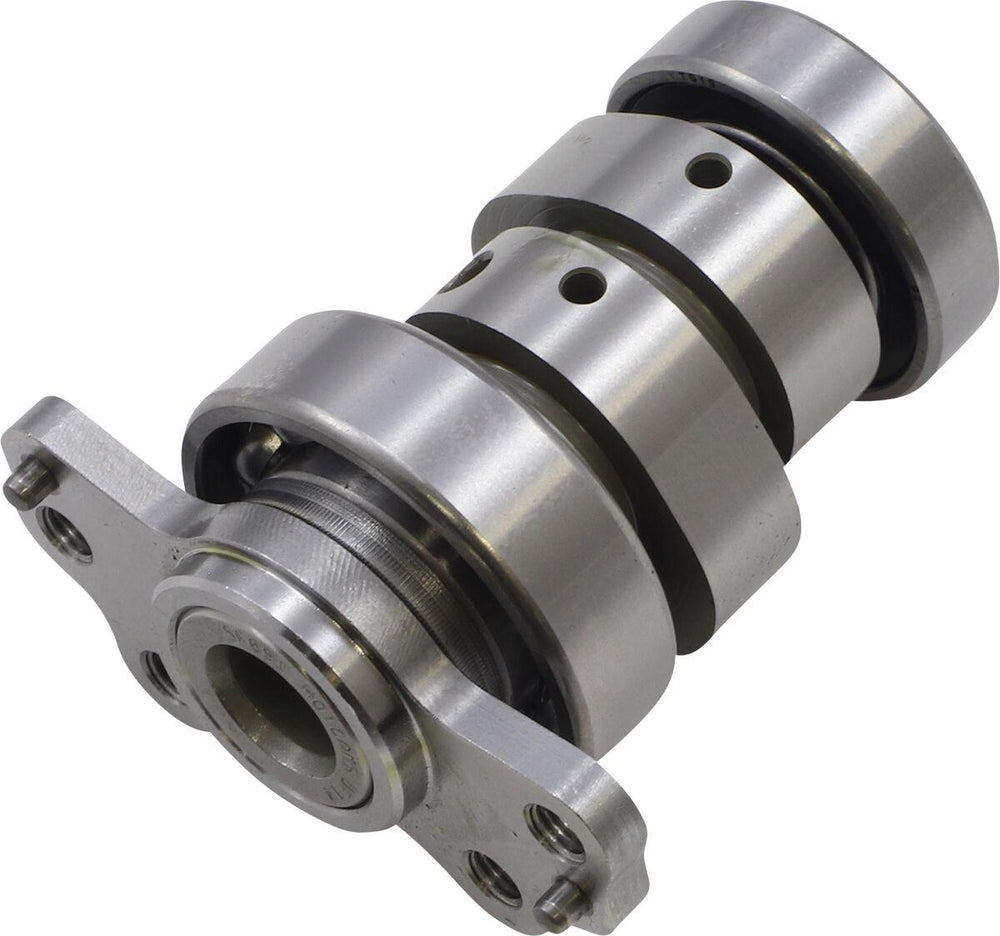

The Hot Cams Camshaft Stage 3 For Yamaha YFM700 R 2006-2008 is part of the latest collection from Hot Cams.

Features:

• Computer Numerical Control (CNC) from 8620 billet steel and case harden
• Designed and dyno proven in the USA
• Engineered by using valvetrain software
• Adds a 5%-10% power gain
• Designed for peak top end horsepower.
• Engineered to be drop in cams that use stock valve springs (unless otherwise noted).
• Select cams feature Hot Cams Improved Throttle Design (I.T.R.) technology; these cams improve throttle response throughout the entire rpm range while providing excellent power gains through the mid-range and top-end.
Drasctically improves top end with over rev. Uses stock auto-decompression mechanism. Uses stock valve springs. For single cam engine. Intake Valve Lash: 0.100 mm. Exhaust Valve Lash: 0.180 mm.

Specifications:

• Application: Exhaust| Intake
• Exhaust Duration Imperial: 255°
• Exhaust Duration: 255°
• Exhaust Lift Metric: 8.60 mm
• Exhaust Lift: 8.60 mm
• Exhaust Lobe Centerline Imperial: 102°
• Exhaust Lobe Centerline: 102°
• Intake Duration Imperial: 268°
• Intake Duration: 268°
• Intake Lift Metric: 10.30 mm
• Intake Lift: 10.30 mm
• Intake Lobe Centerline Imperial: 112.500°

To fit:

• YAMAHA YFM 700 RSE2 2007 Raptor Special Edition 2 American Models
• YAMAHA YFM 700 RSE2 2008 Raptor Special Edition 2 American Models
• YAMAHA YFM 700 RSE 2007 Raptor Special Edition American Models
• YAMAHA YFM 700 RSE 2008 Raptor Special Edition American Models
• YAMAHA YFM 700 RSP 2006 Raptor 50th Anniversary American Models
• YAMAHA YFM 700 RYR 2007 Raptor Gtyr Edition American Models
• YAMAHA YFM 700 R 2006 Raptor American Models
• YAMAHA YFM 700 R 2007 Raptor American Models
• YAMAHA YFM 700 R 2008 Raptor American Models

Manufacturer part number: 4091-3

View all Hot Cams. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Hot Cams Camshaft Stage 3 For Yamaha YFM700 R 2006-2008
