Product description

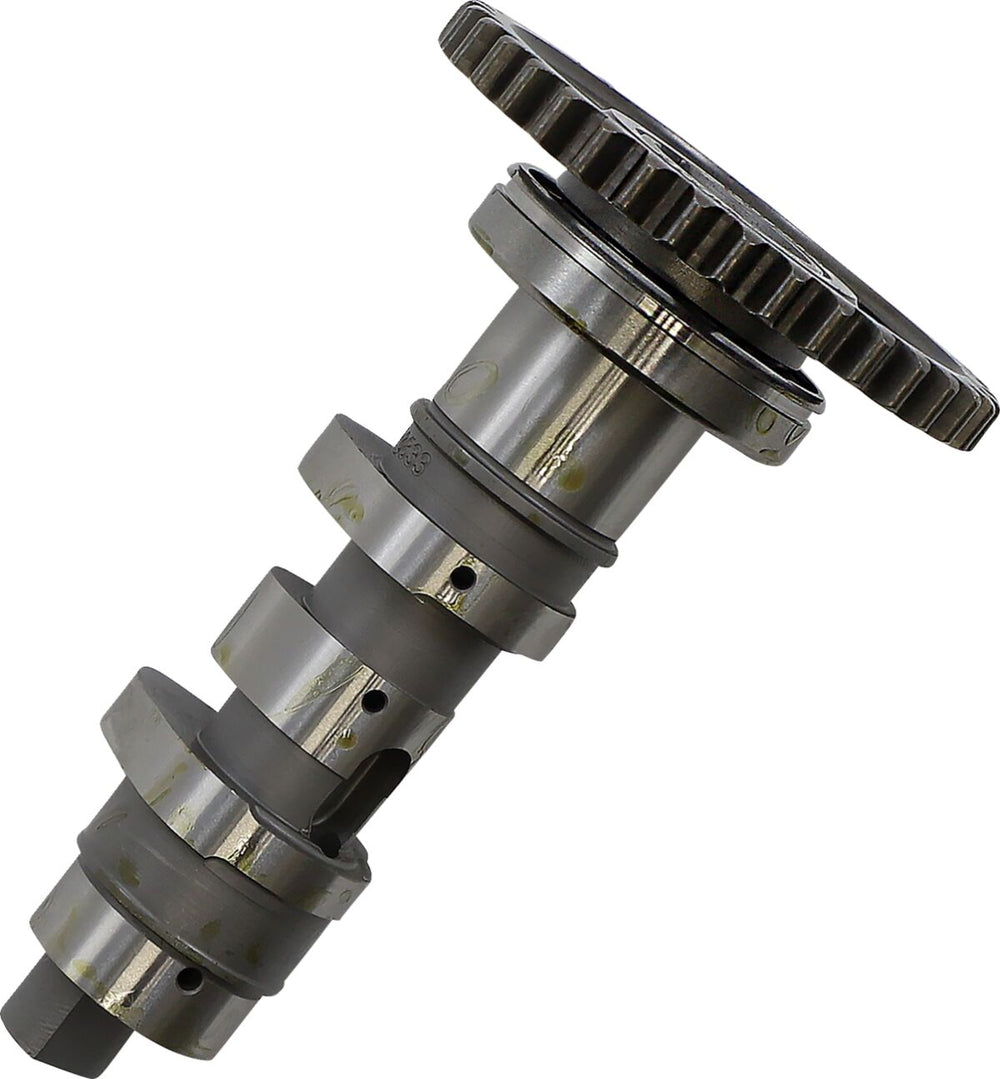

The Camshaft Stage 1 System is part of the latest collection from Hot Cams.

Features:

• Computer Numerical Control (CNC) from 8620 billet steel and case harden
• Designed and dyno proven in the USA
• Engineered by using valvetrain software
• Adds a 5%-10% power gain
• Select cams feature Hot Cams Improved Throttle Design (I.T.R.) technology; these cams improve throttle response throughout the entire rpm range while providing excellent power gains through the mid-range and top-end
• Designed for mid to top end gains.
• Engineered to be drop in cams that use stock valve springs (unless otherwise noted).
Improved mid range and top end power with minimal loss on low end power. Designed with I.T.R. technology. Uses stock valve springs. Uses stock auto-decompression mechanism. Intake Valve Lash: 0.100 mm Exhaust Valve Lash: 0.250 mm

Specifications:

• Application: Exhaust| Intake
• Exhaust Duration: 266°
• Exhaust Lift: 8.84 mm
• Exhaust Lobe Centerline: 107°
• Intake Duration: 255°
• Intake Lift: 9.14 mm
• Intake Lobe Centerline: 107°
• Product Name: Camshaft
• Type: Stage 2
• Units: Each

To fit:

• HONDA CRF 250 R 2010 American Models
• HONDA CRF 250 R 2010 European Models
• HONDA CRF 250 R 2011 All Models
• HONDA CRF 250 R 2012 All Models
• HONDA CRF 250 R 2013 All Models
• HONDA CRF 250 R 2014 All Models
• HONDA CRF 250 R 2015 All Models

Manufacturer part number: 1265-2

View all Hot Cams. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Hot CAMS Camshaft Stage 1 System
