Product description

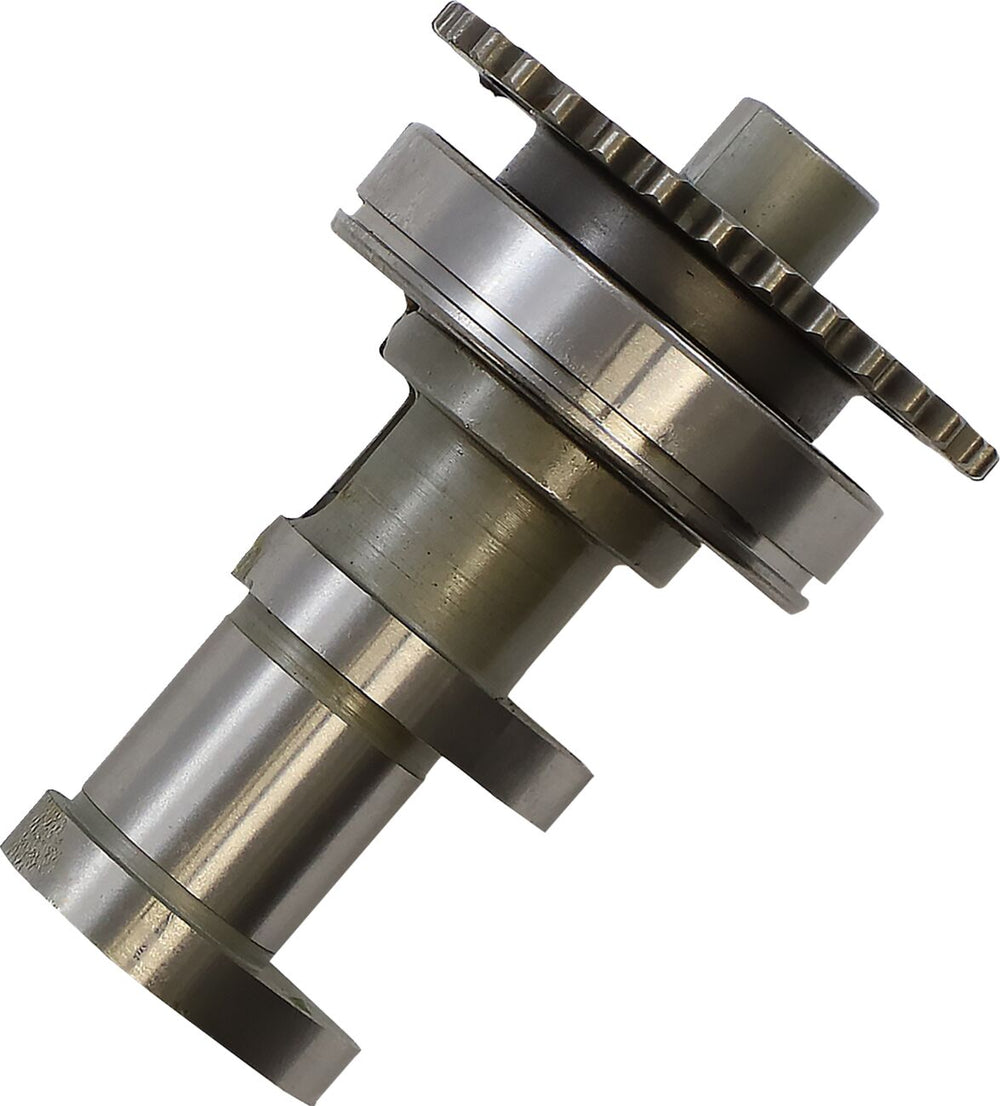

The Camshaft Exhaust Stage 1 & 1 System is part of the latest collection from Hot Cams.

Features:

• For dual cam engine
• Adds a 5%-10% power gain
• Designed and dyno proven in the USA
• Manufactured by utilizing state of the art valvetrain software
• CNC machined from 8620 billet, case-hardened steel for an exact fit and lobe profile
• This exhaust camshaft is to be used with specified stage 1 and stage 2 intake camshafts as noted.
• Engineered to be drop-in cams, that use stock valve springs (unless otherwise noted).
• Select cams feature Hot Cams Improved Throttle Design (ITR) technology; these cams improve throttle response throughout the entire rpm range while providing excellent power gains through the mid-range and top-end.
When used with 0925-1242 (stage 1) power increases from 4000 rpm to redline. When used with 0925-1244 (stage 2) provides mid range and top end increase over 8000 rpm, with no loss on the bottom end. Designed with I.T.R. technology. Uses stock auto-decompression mechanism. Exhaust Valve Lash: 0.195 mm.

Specifications:

• Application: Exhaust
• Exhaust Duration: 256°
• Exhaust Lift: 9.650 mm
• Exhaust Lobe Centerline: 104°
• Product Name: Camshaft
• Type: Stage 1| Stage 2
• Units: Each

To fit:

• KAWASAKI KX 250 F 2017 American Models
• KAWASAKI KX 250 F 2017 European Models
• KAWASAKI KX 250 F 2018 American Models
• KAWASAKI KX 250 F 2018 European Models
• KAWASAKI KX 250 F 2019 All Models

Manufacturer part number: 2312-E

View all Hot Cams. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Hot CAMS Camshaft Exhaust Stage 1 & 1 System
