Product description

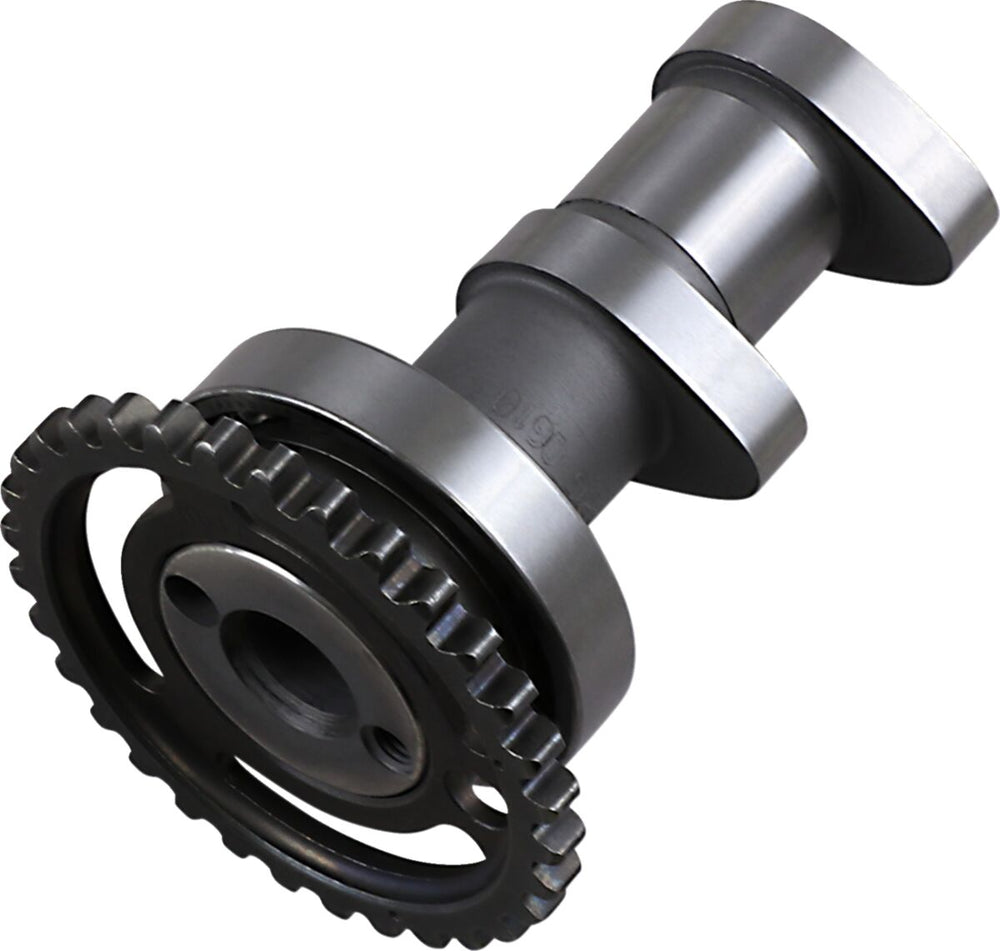

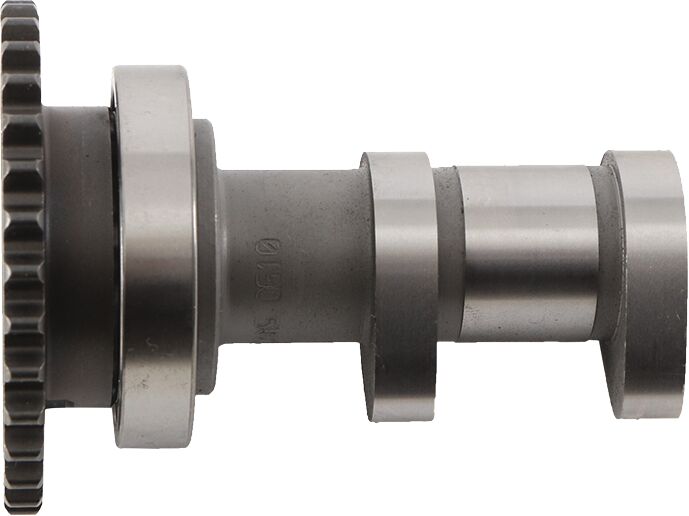

The Camshaft Exhaust Stage 1 is part of the latest collection from Hot Cams.

Features:

• Stage 1 is designed for low end torque
• Adds a 5%-10% power gain
• Designed and dyno proven in the USA
• Manufactured by utilizing state of the art valvetrain software
• CNC machined from 8620 billet, case-hardened steel for an exact fit and lobe profile
• Engineered to be drop-in cams, that use stock valve springs (unless otherwise noted).
• Select cams feature Hot Cams Improved Throttle Design (ITR) technology; these cams improve throttle response throughout the entire rpm range while providing excellent power gains through the mid-range and top-end.
• For dual cam engine.
Low end to mid range increase with slight top end loss after 10,000 rpm. Designed with I.T.R. technology. Uses stock auto-decompression mechanism. Exhaust Valve Lash: 0.200 mm.

Specifications:

• Application: Exhaust
• Exhaust Duration: 239°
• Exhaust Lift: 8.380 mm
• Exhaust Lobe Centerline: 103°
• Product Name: Camshaft
• Type: Stage 1
• Units: Each

To fit:

• SUZUKI RM-Z 250 E 2018 All Models
• SUZUKI RM-Z 250 E 2019 European Models
• SUZUKI RM-Z 250 2016 All Models
• SUZUKI RM-Z 250 2017 All Models
• SUZUKI RM-Z 250 2018 All Models
• SUZUKI RM-Z 250 2019 All Models
• SUZUKI RM-Z 250 2020 All Models
• SUZUKI RM-Z 250 2021 All Models
• SUZUKI RM-Z 250 2022 All Models

Manufacturer part number: 2309-1E

View all Hot Cams. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Hot CAMS Camshaft Exhaust Stage 1
